6.3 Motor Module with external air cooling
Booksize Power Units
412 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
6.3.8.3
Characteristics for Motor Modules Booksize with 300% overload
Rated duty cycles Motor Modules Booksize with 300% overload

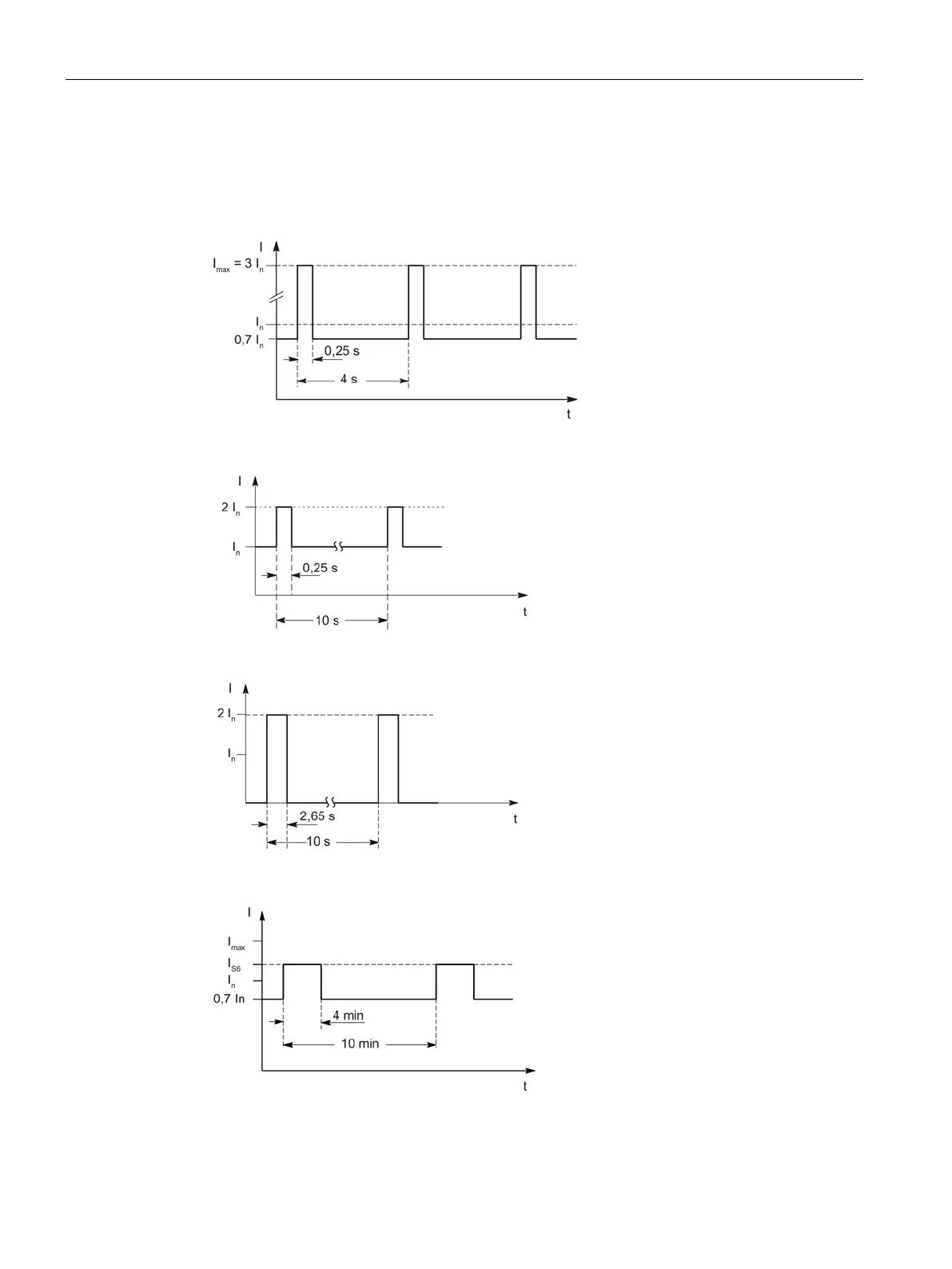

Figure 6-54 Peak current duty cycle with initial load (300% overload)
Figure 6-55 Duty cycle with initial load
Figure 6-56 Duty cycle without initial load
Figure 6-57 S6 duty cycle with initial load for a duty cycle duration of 600 s
