4.10 Smart Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
305
Mounting plate with openings
M6 nut, width A/F 10 (hexagon head)

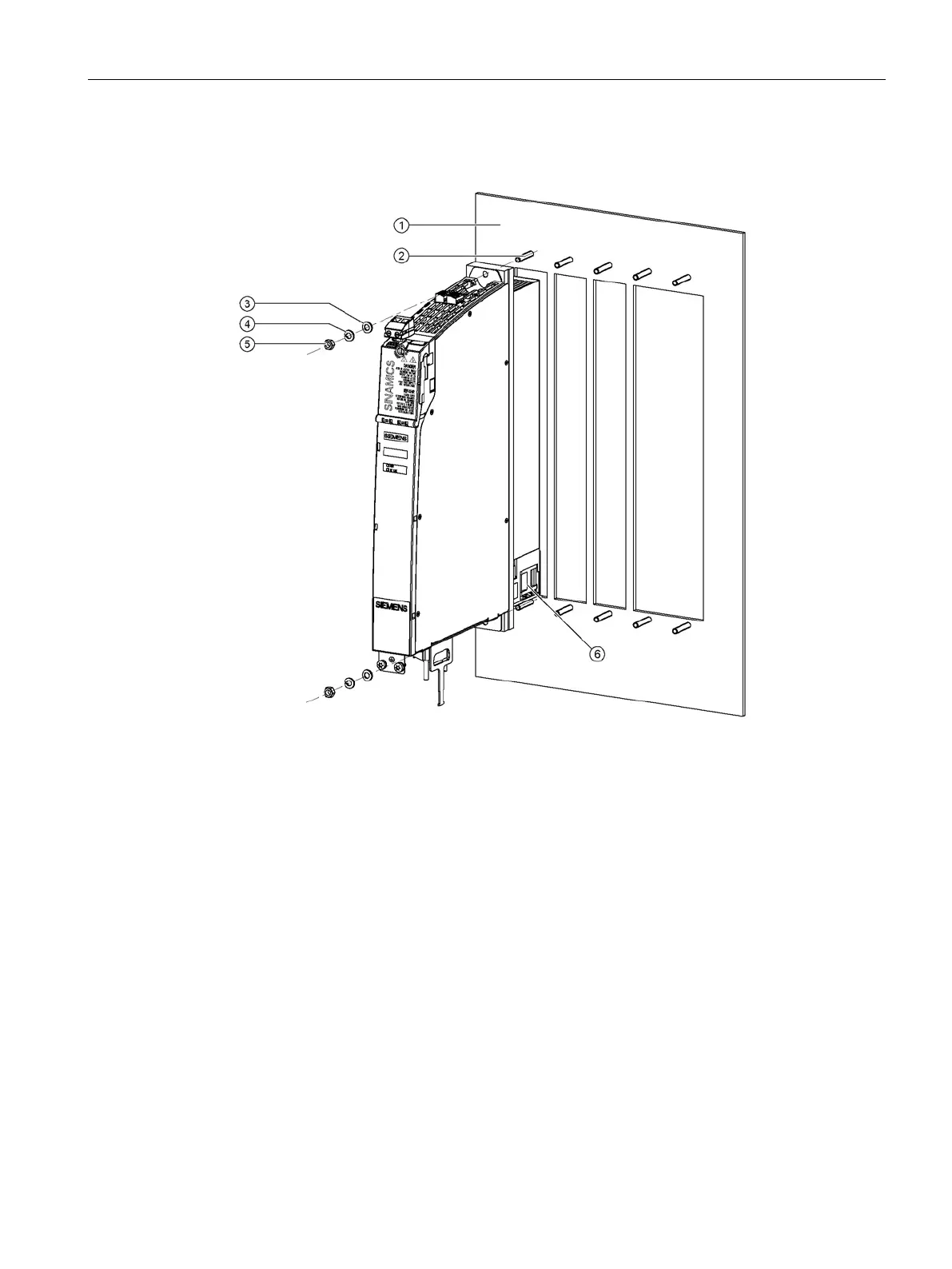

Figure 4-83 Mounting a Smart Line Module with external air cooling on a mounting plate, using a
5 kW Smart Line Module as an example
1. Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
2. Then tighten the nuts.
Tightening torque: 6 Nm
