Siemens SINAMICS S120

Accessories
11.6 DRIVE-CLiQ cabinet bushings
Booksize Power Units
658 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Mounting
1. Insert the DRIVE-CLiQ cabinet bushing through the opening in the cabinet.
2. Fasten the DRIVE-CLiQ cabinet bushing using the associated O ring with a tightening
torque of 3-4 Nm
①
Flange, SW18
②
Seal
③
Cabinet panel
④
O ring, SW20, tightening torque: 3-4 Nm

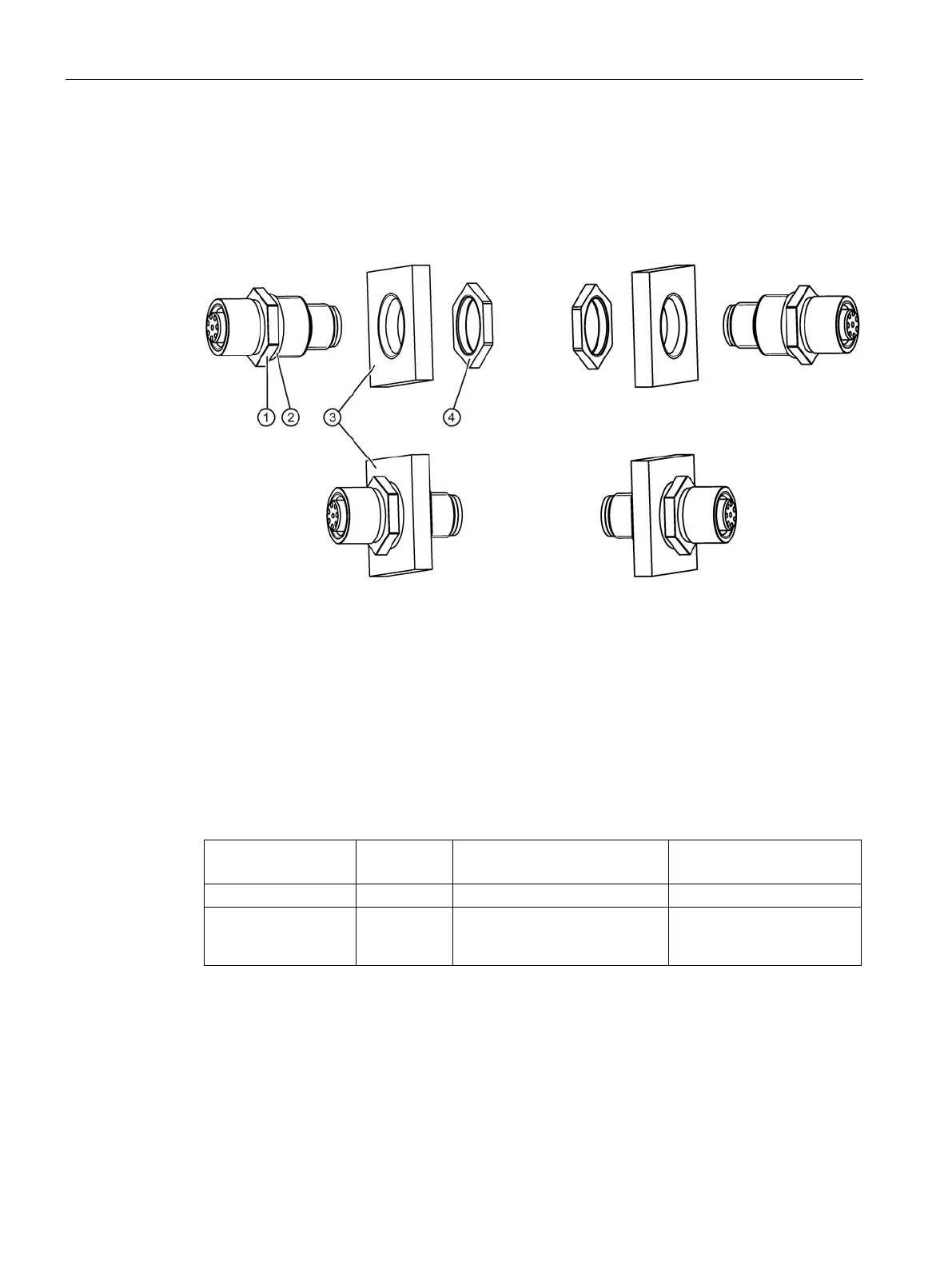

Figure 11-39 Mounting DRIVE-CLiQ cabinet bushings for cables with M12 connectors
11.6.5
Technical data
Table 11- 26 Technical data of DRIVE-CLiQ cabinet bushings
Unit
6SL3066-2DA00-0AA0
DRIVE-CLiQ
6FX2003-0DT67
M12
Weight
kg
0.165
0.035
Degree of protection
to IEC 60529
IP54 outside the control cabinet
IP20 or IPXXB inside the con-
trol cabinet
IP67
