Siemens SINAMICS S120

Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
406 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
External air cooling
6SL3121-
2TE13-0AA.
1)
2TE15-0AA.
1)
2TE21-0AA.
1)
2TE21-8AA.
Ventilation clearances
above/below
mm
≥ 80
Weight
kg 5.8 5.8 5.7 8.6
1)
Applies only to Article numbers with "." = 0 ... 3
2)
Default for 400 V line systems; undervoltage trip threshold can be reduced by up to 80 V and is adjusted to the parame-
terized rated voltage
3)
Rated power of a typical standard induction motor at 400 V 3 AC.
6.3.7.3
Characteristics

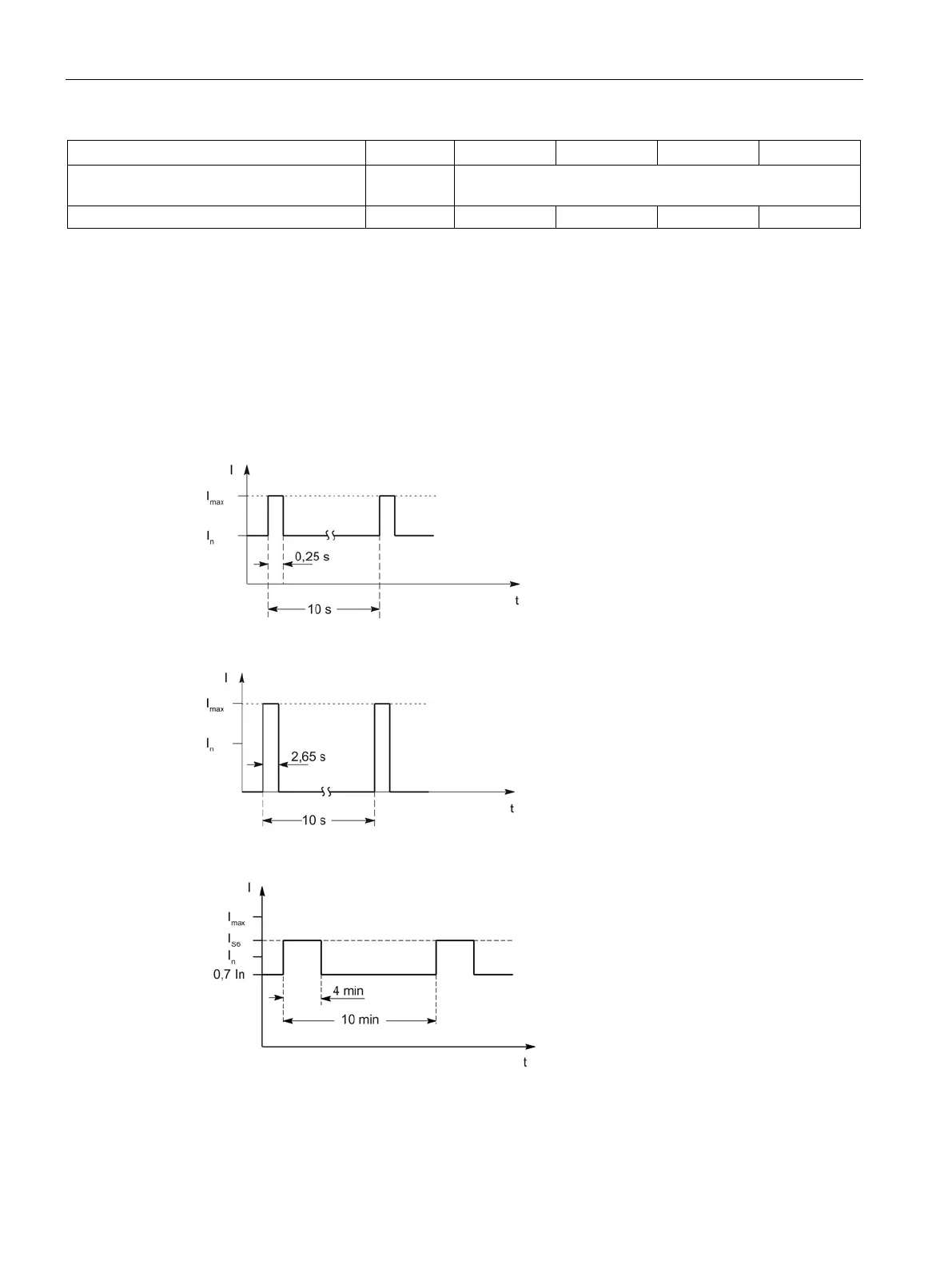

Rated duty cycles Motor Modules Booksize
Figure 6-45 Duty cycle with initial load (for servo drives)
Figure 6-46 Duty cycle without initial load (for servo drives)
Figure 6-47 S6 duty cycle with initial load with a duty cycle duration of 600 s (for servo drives)
