DC link components
8.6 Control Supply Module CSM
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
545

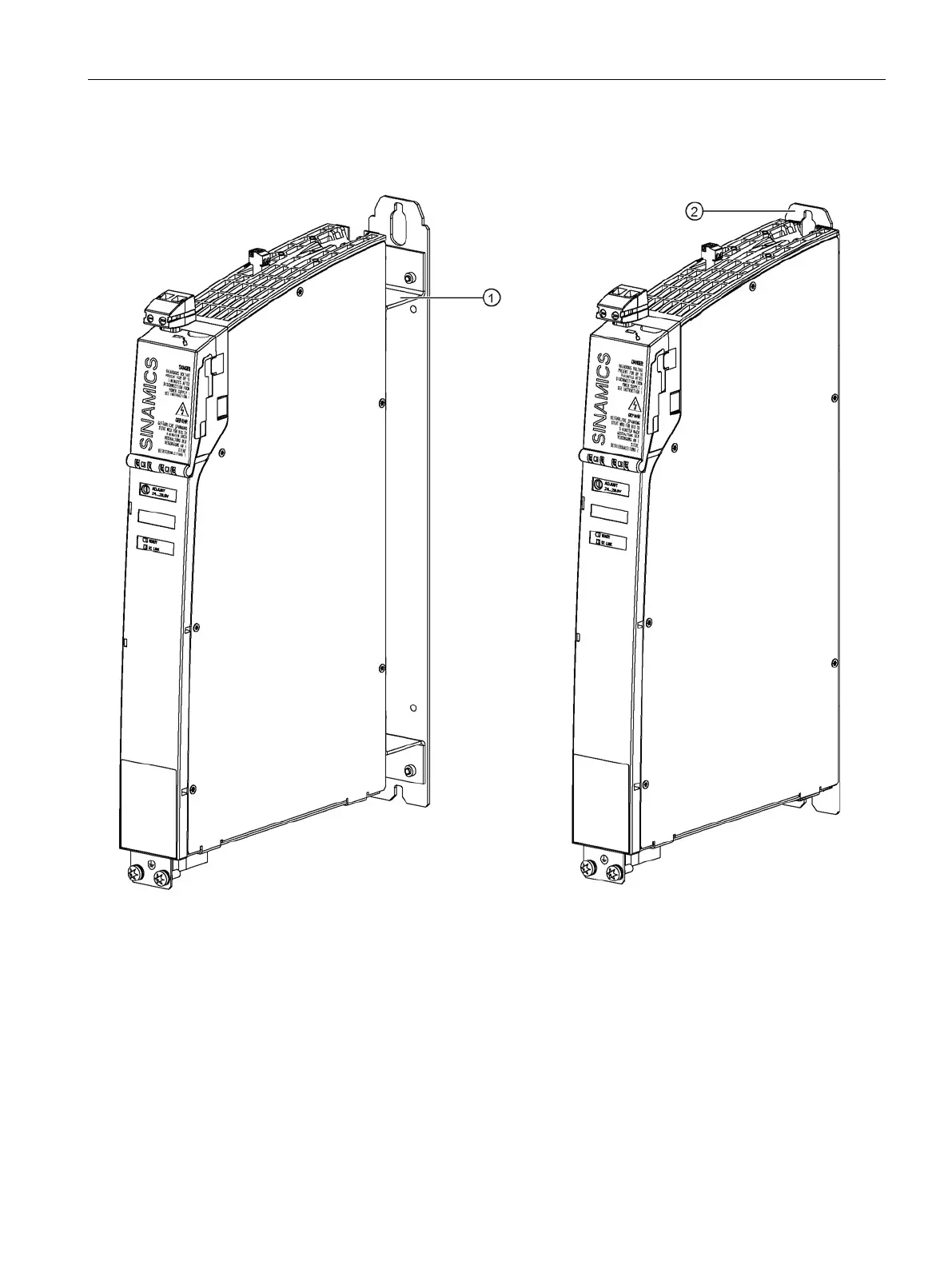

Delivered with spacer - mounting depth for drive line-up in booksize format with internal air cooling
Spacer removed - mounting depth for drive line-up in booksize format with external air cooling
Figure 8-28 Methods of installing the Control Supply Module with and without spacer
The Control Supply Module can be attached to the control cabinet panel with or without
spacers.
