Siemens SINAMICS S120

Line Modules Booksize
4.10 Smart Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
301
Status
Description, cause
Remedy
RDY
DC LINK
Green/red
(2 Hz)
--
1)
Firmware download has been completed. The system
waits for POWER ON.
Carry out a POWER ON.
Green/orange
or
red/orange
--
1)
Component recognition via LED is activated
2)
.
Note:
Both options depend on the LED status when compo-
nent recognition is activated.
–
1)
Irrespective of the status of the LED "DC LINK"
2)
For information about activating the parameter "Recognition via LED", see SINAMICS S120/S150 List Manual
4.10.7
Dimension drawings

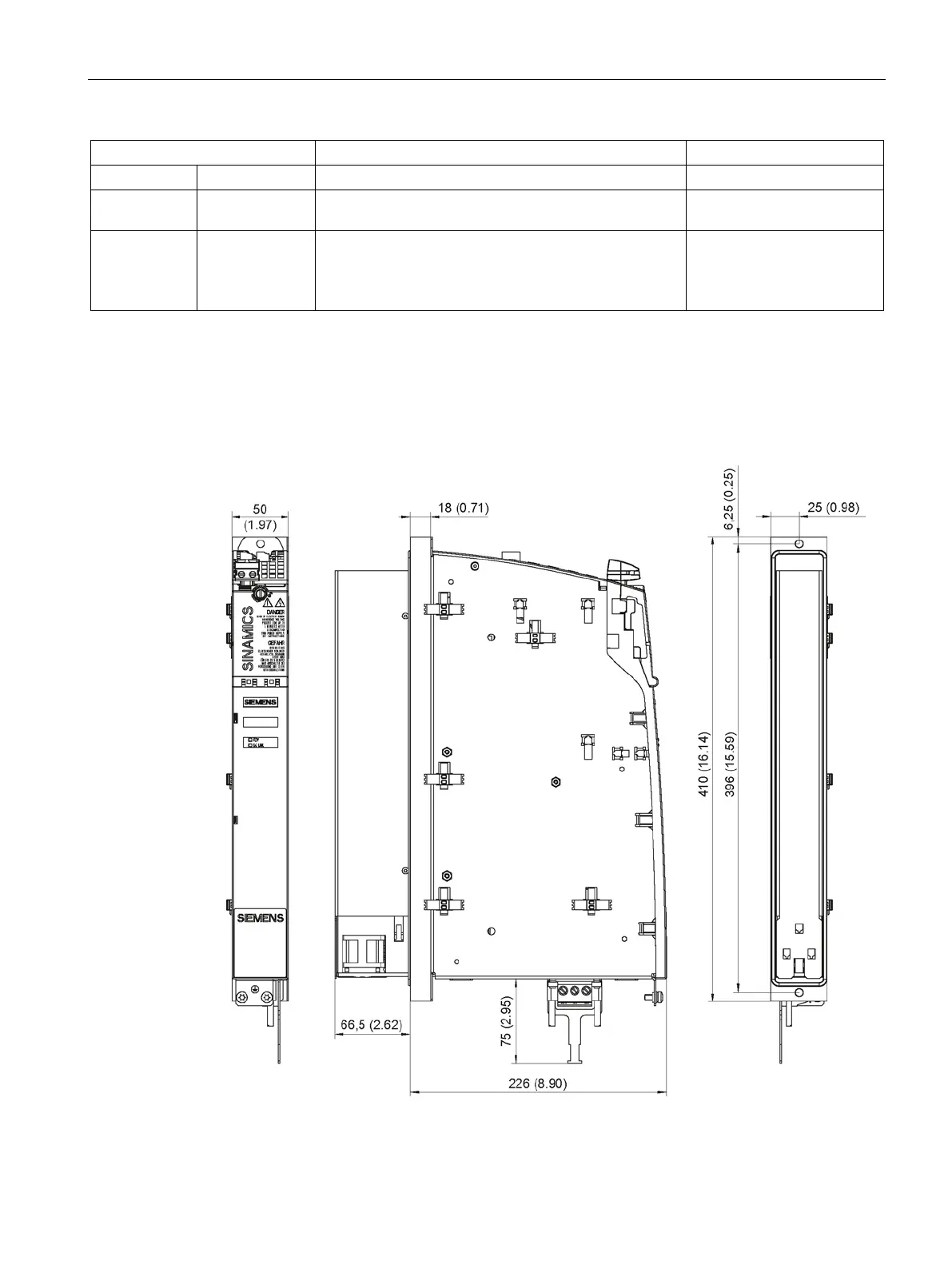

Figure 4-79 Dimension drawing of 5 kW and 10 kW Smart Line Modules with external air cooling, all
dimensions in mm and (inches)
