4.10 Smart Line Modules with external air cooling
Booksize Power Units
306 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

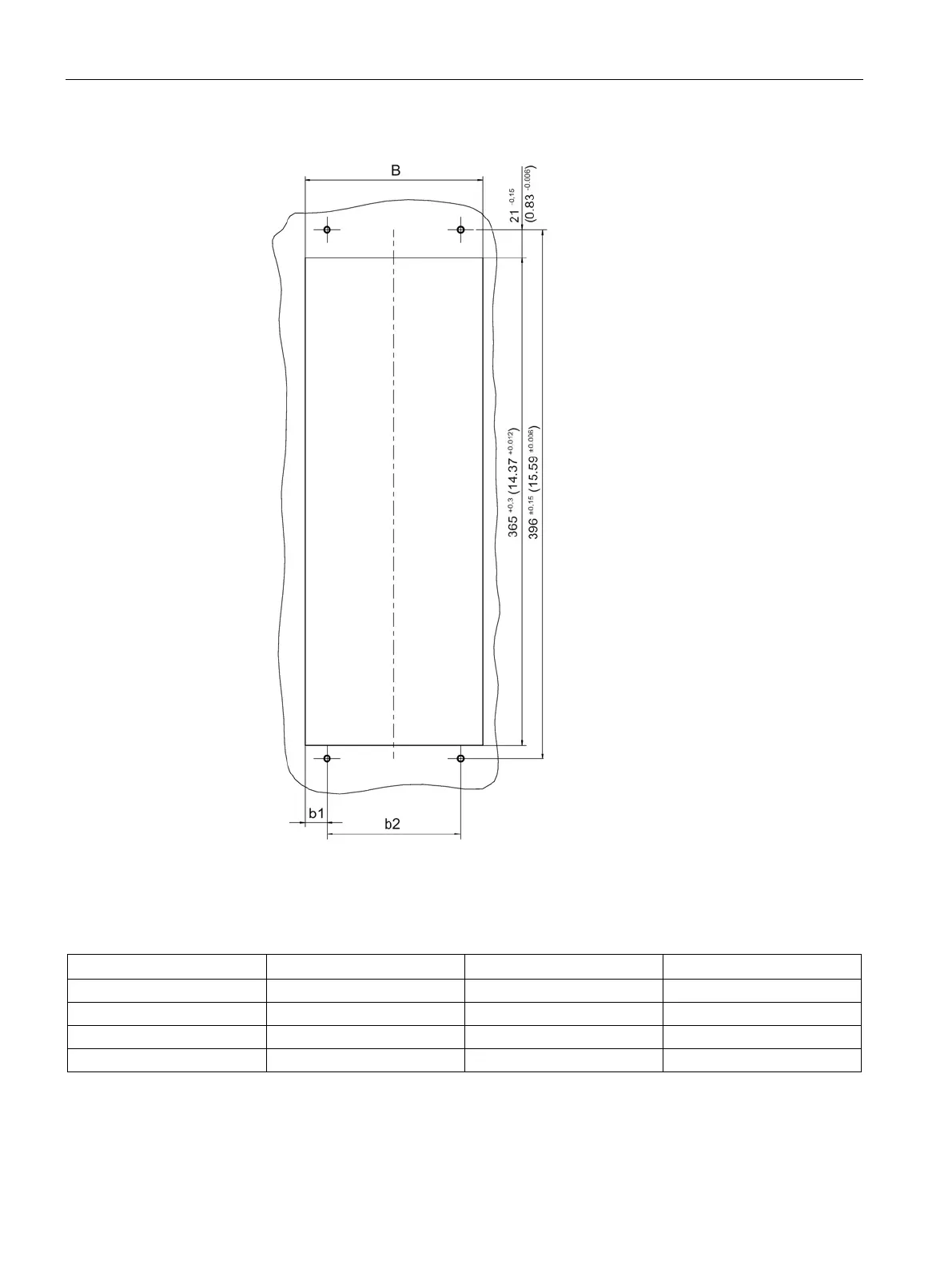

Figure 4-84 Opening to mount Smart Line Modules 50 mm to 200 mm with external air cooling, all
data in mm and (inches)
Table 4- 84 Dimensions of openings to mount Smart Line Modules with external air cooling
Module width
B in mm (inch)
b1 in mm (inch)
b2 in mm (inch)
50 mm
41.5
+0.3
(1.63
+0.012
)
20.75
+0.15
(0.82
+0.006
)
--
100 mm
89.5
+0.3
(3.52
+0.012
)
19.75
+0.15
(0.78
+0.006
)
50
±0.15
(1.97
±0.006
)
150 mm 133
+0.3
(5.24
+0.012
) 16.5
+0.15
(0.65
+0.006
) 100
±0.15
(3.94
±0.006
)
200 mm
173
+0.3
(6.81
+0.012
)
11.5
+0.15
(0.45
+0.006
)
150
±0.15
(5.91
±0.006
)
