Line Modules Booksize
4.3 Active Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
167
Installing the sub-chassis fan

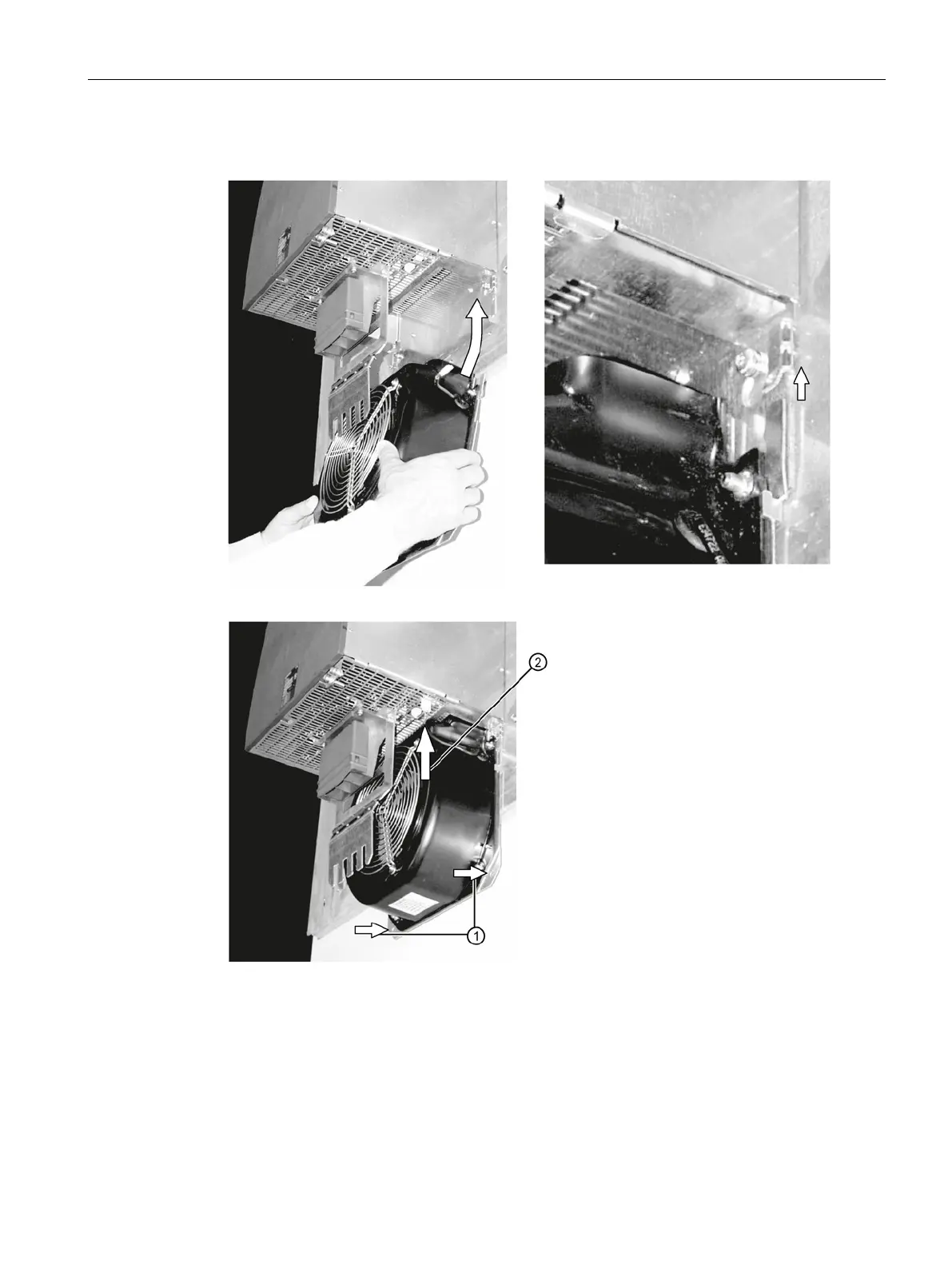

Figure 4-8 Mounting the fan for Active Line Modules 80 kW and 120 kW
① Fix the fan with M6 screws (tightening torque: 6 Nm).
① Connect the fan power supply.
