Line Modules Booksize
4.4 Active Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
183
Table 4- 20 Dimensions of 36 kW, 55 kW, 80 kW, and 120 kW Active Line Modules with external air cooling
Active Line Mod-
ule
Article No.
B [mm]
(inch)
b [mm]
(inch)
c [mm]
(inch)
d [mm]
(inch)
e [mm]
(inch)
36 kW
6SL3131-7TE23-6AA.
150 (5.91)
100 (3.94)
71 (2.80)
75 (2.95)
203 (7.99)
55 kW 6SL3131-7TE25-5AA. 200 (7.87) 150 (5.91) 92 (3.62) 100 (3.94) 224 (8.82)
80 kW
6SL3131-7TE28-0AA.
300 (11.81)
250 (9.84)
82 (3.23)
150 (5.91)
214 (8.43)
120 kW
6SL3131-7TE31-2AA.
300 (11.81)
250 (9.84)
82 (3.23)
150 (5.91)
214 (8.43)

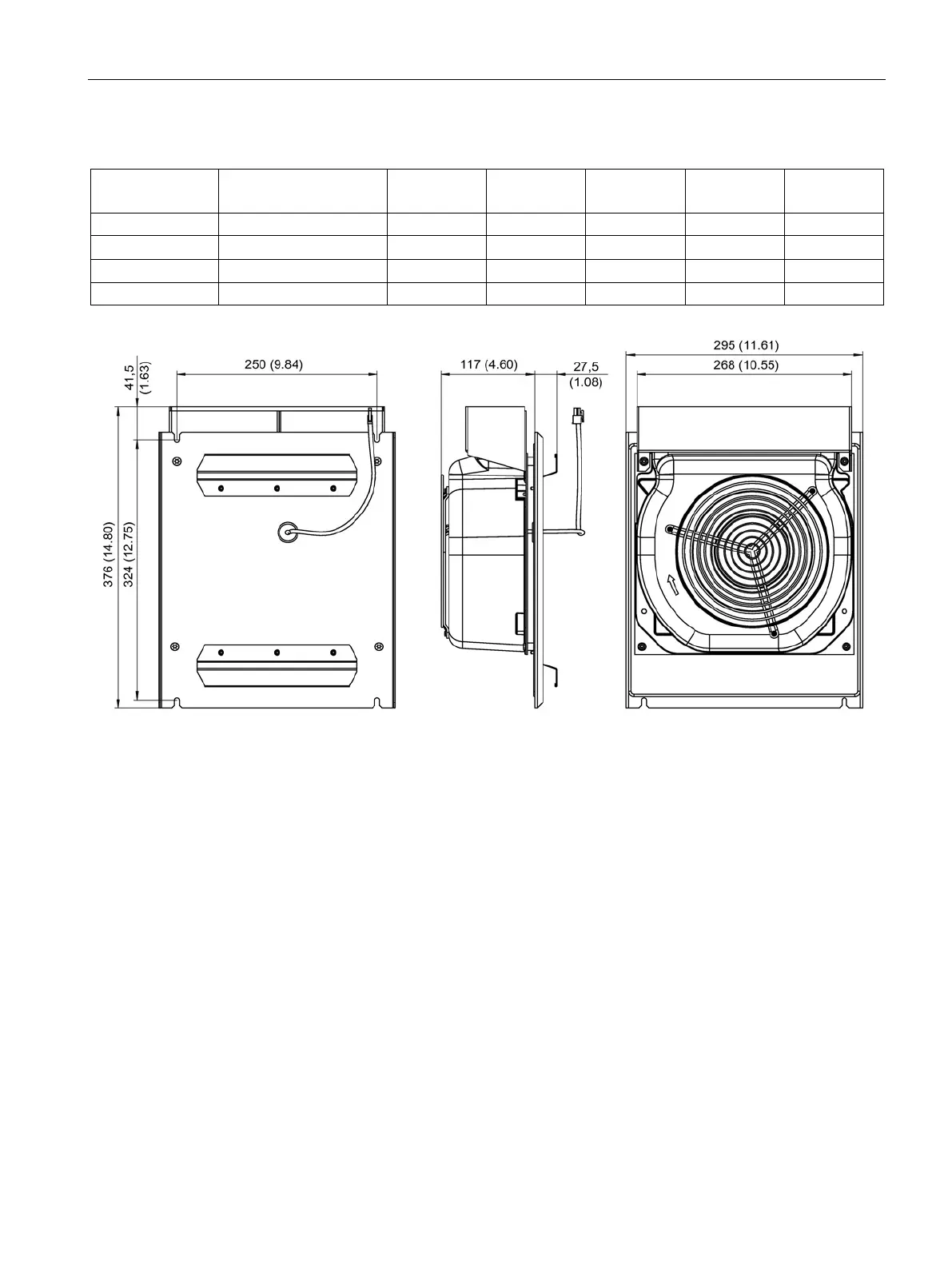

Figure 4-16 Dimension drawing of fan for 80 kW and 120 kW Active Line Modules with external air cooling, all dimensions
in mm and (inches)
