Line Modules Booksize
4.7 Basic Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
231

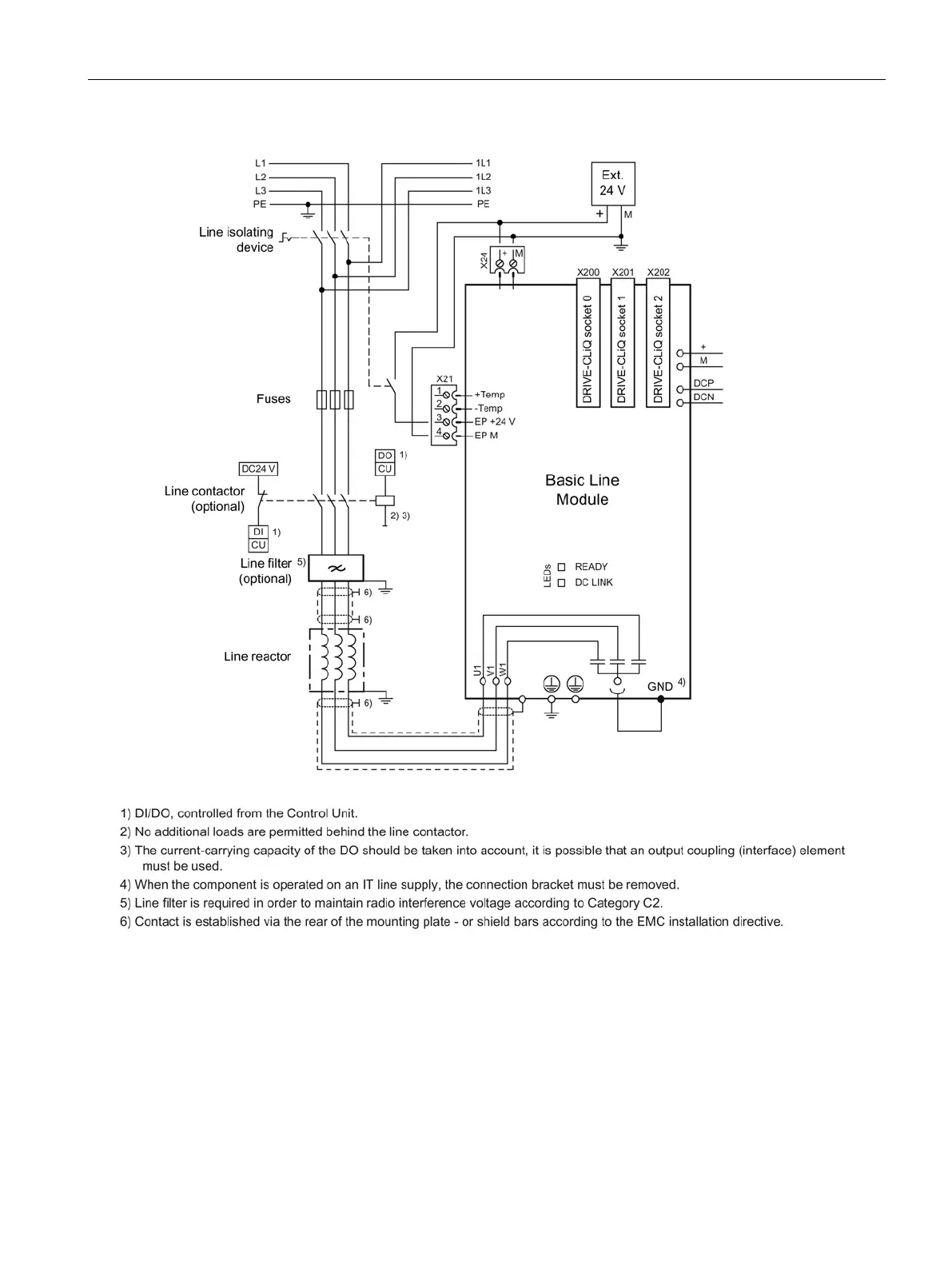

Figure 4-42 Connection example: Basic Line Module (100 kW)
