Line Modules Booksize
4.7 Basic Line Modules with internal air cooling
Booksize Power Units
234 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

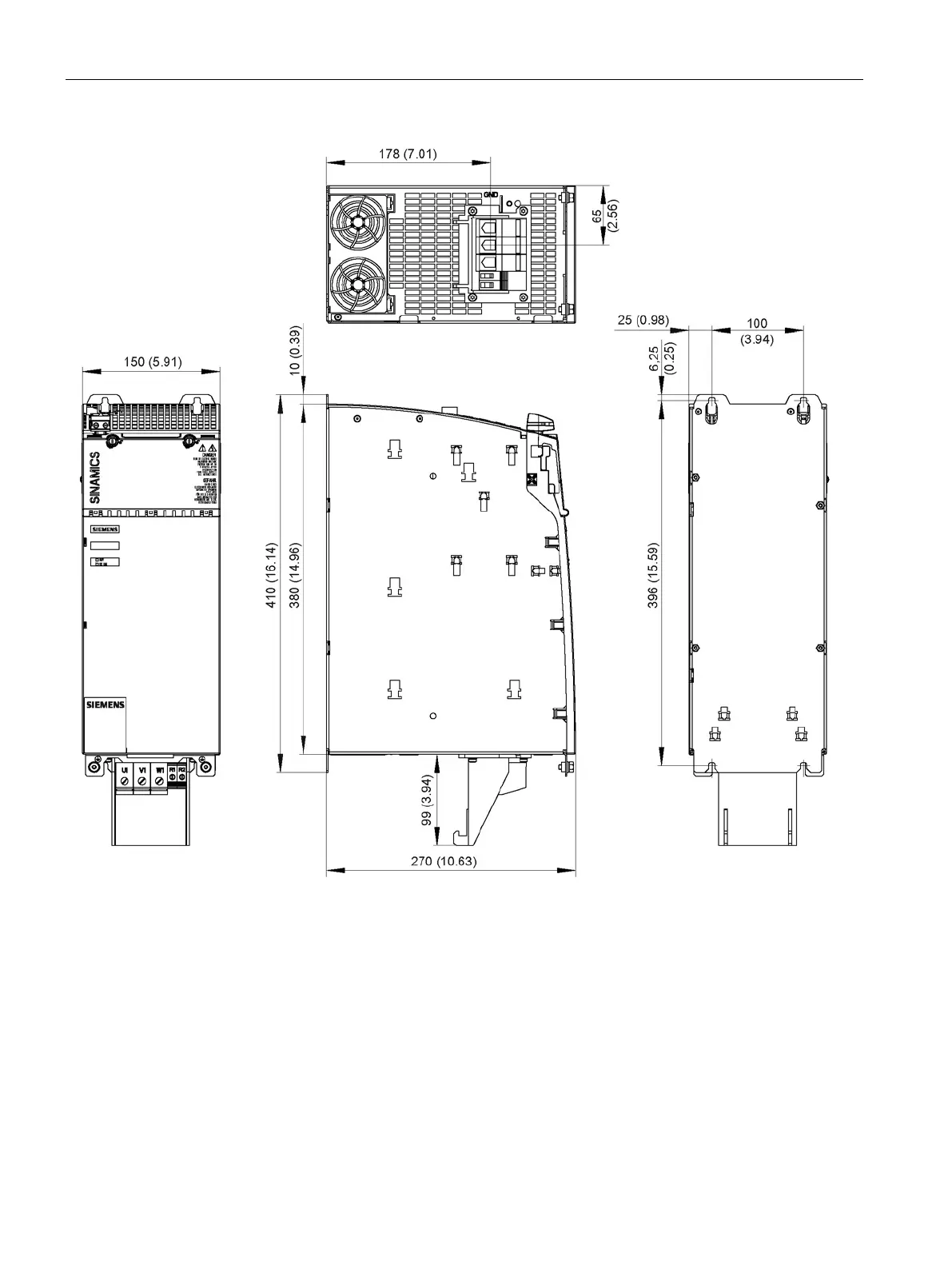

Figure 4-44 Dimension drawing of 40 kW Basic Line Module with internal air cooling, all dimensions in mm and (inches)
