Line Modules Booksize
4.7 Basic Line Modules with internal air cooling
Booksize Power Units
240 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

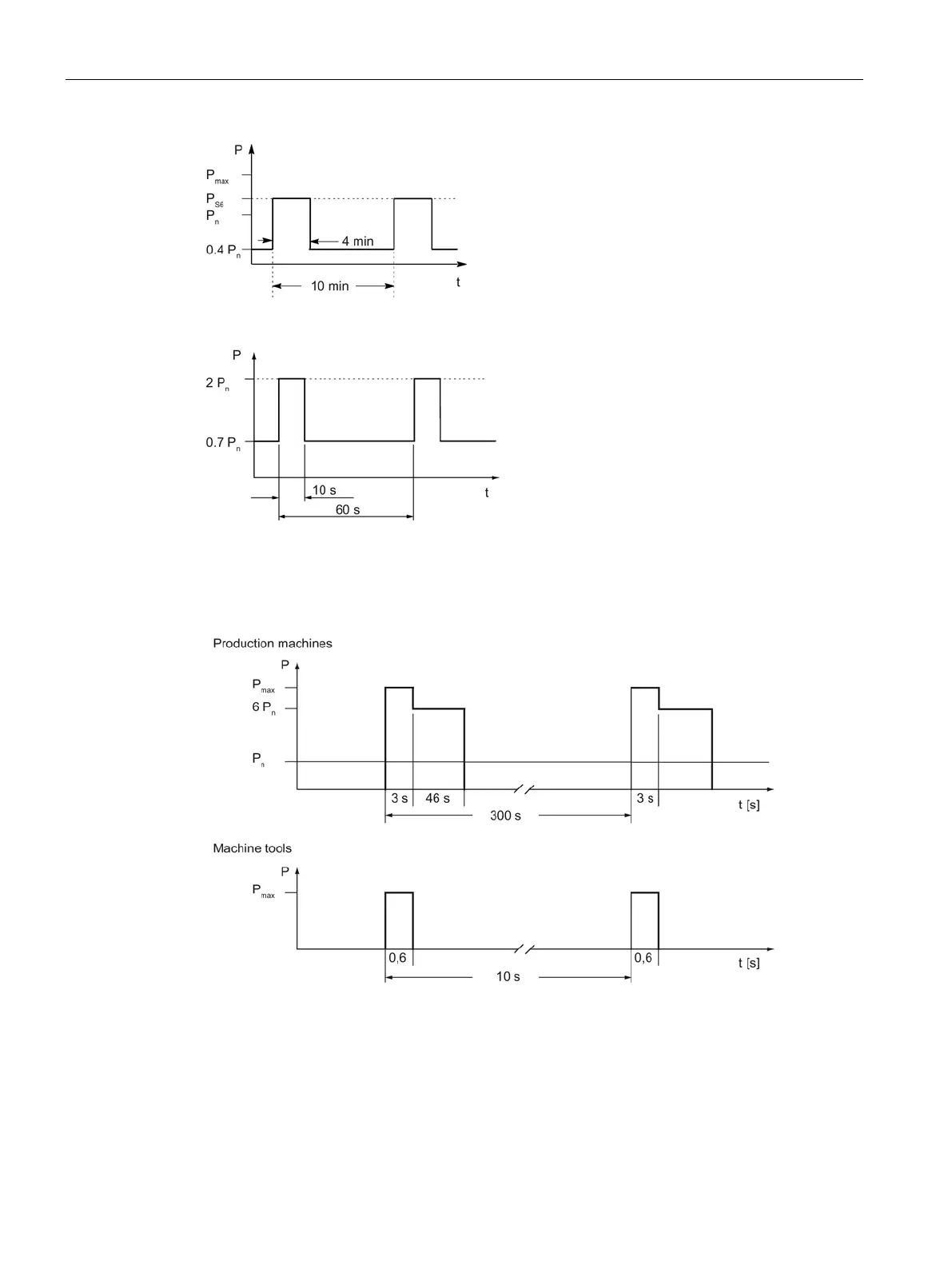

Figure 4-48 S6 duty cycle with pre-load condition
Figure 4-49 Duty cycle with pre-load condition for 20 kW and 40 kW Basic Line Modules
Braking duty cycle for Basic Line Modules
Figure 4-50 Braking duty cycle for Basic Line Modules
