Line Modules Booksize
4.10 Smart Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
289

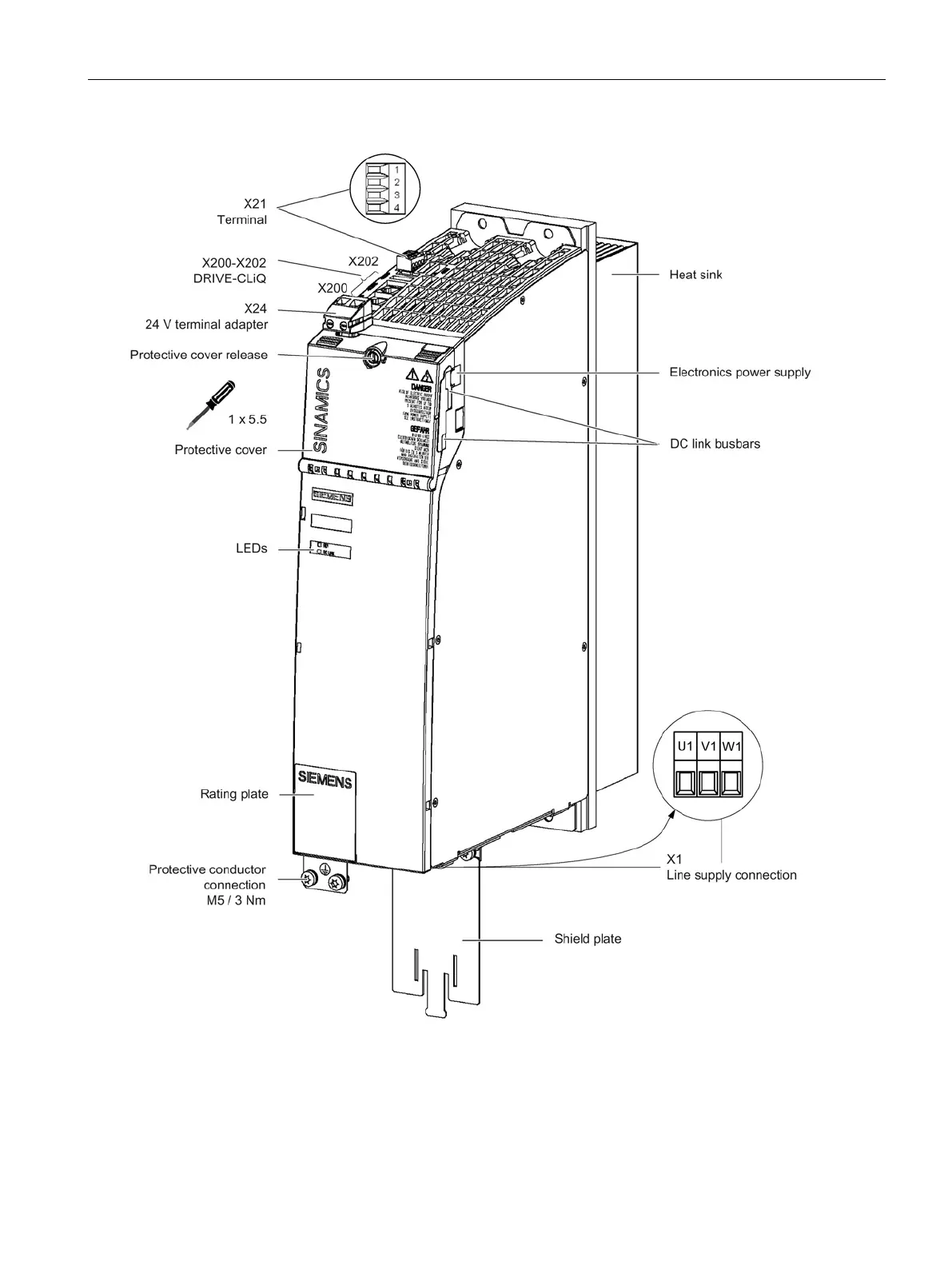

Figure 4-75 Interface overview, 16 kW Smart Line Module with external air cooling
