Line Modules Booksize Compact
5.2 Smart Line Modules Booksize Compact
Booksize Power Units
342 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Mounting a Smart Line Module Booksize Compact on a cold plate

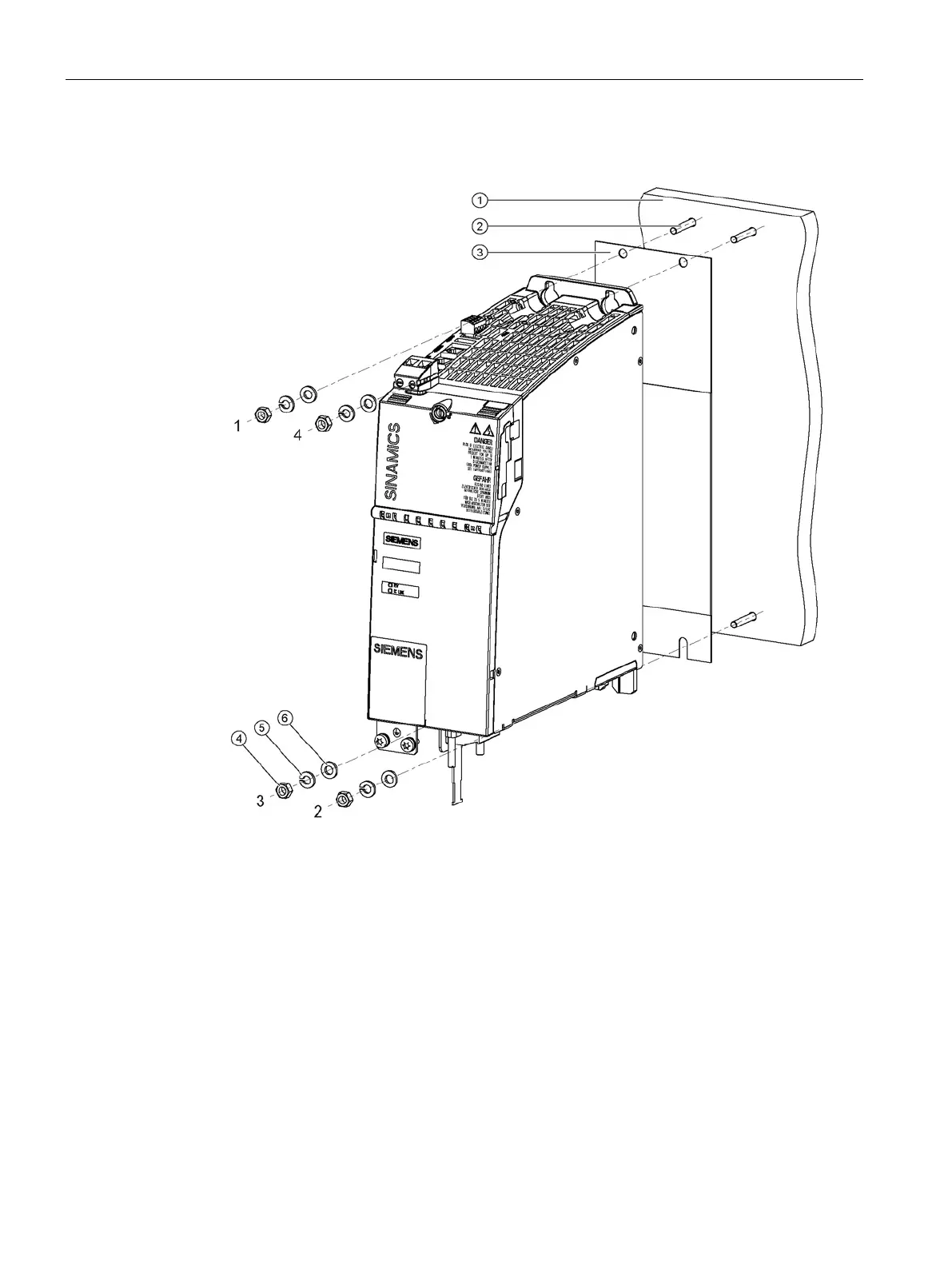

Figure 5-5 Mounting a Smart Line Module Booksize Compact on a cold plate
:
1. Firstly, only tighten the nuts by hand.
Tightening torque: 0.5 Nm
2. Then tighten the nuts in the specified sequence 1 to 4.
Tightening torque: 10 Nm
