Motor Modules Booksize
6.2 Motor Modules with internal air cooling
Booksize Power Units
360 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

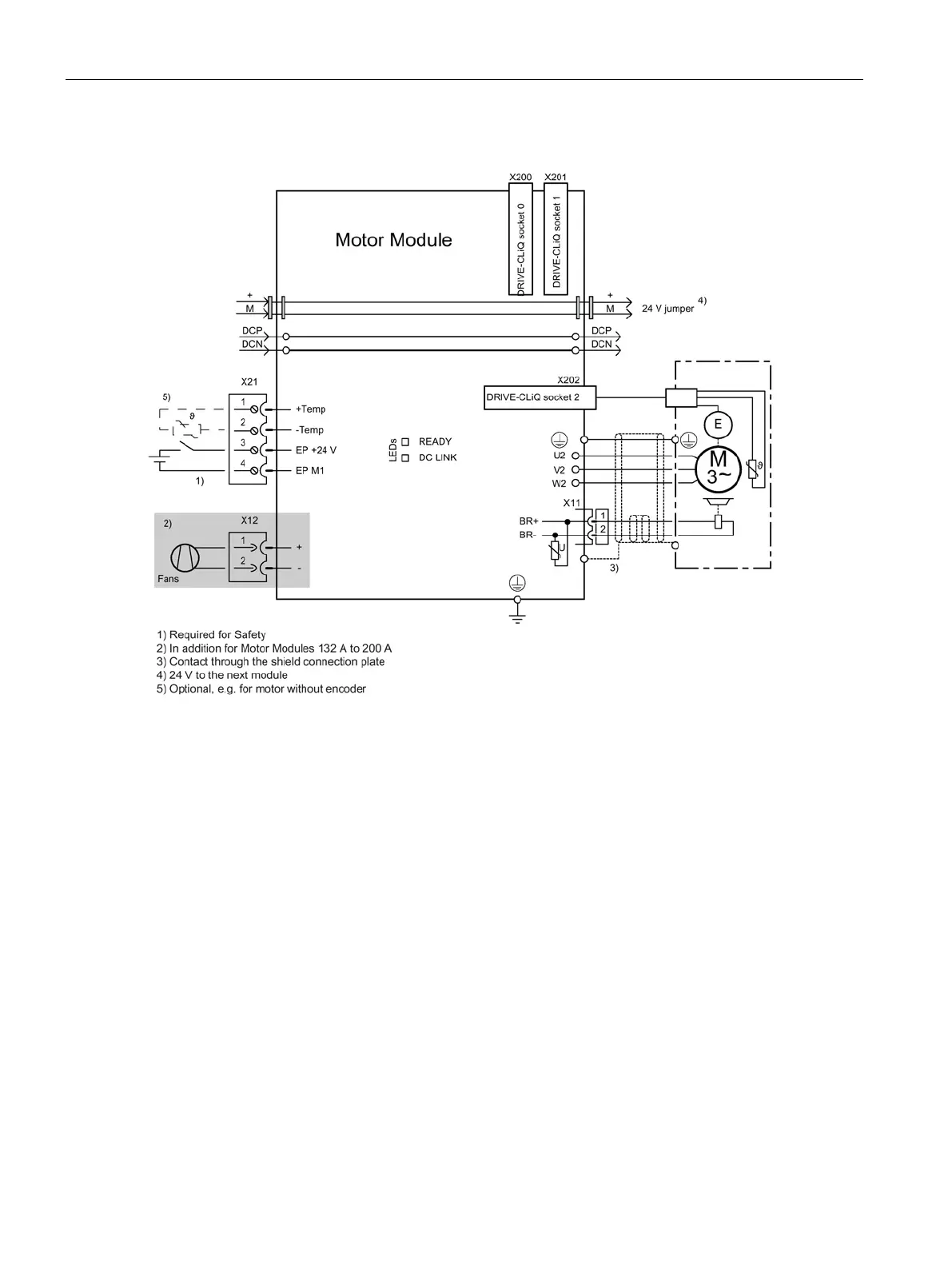

Figure 6-4 Example connection of Single Motor Modules 45 A to 200 A
