6.2 Motor Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
373

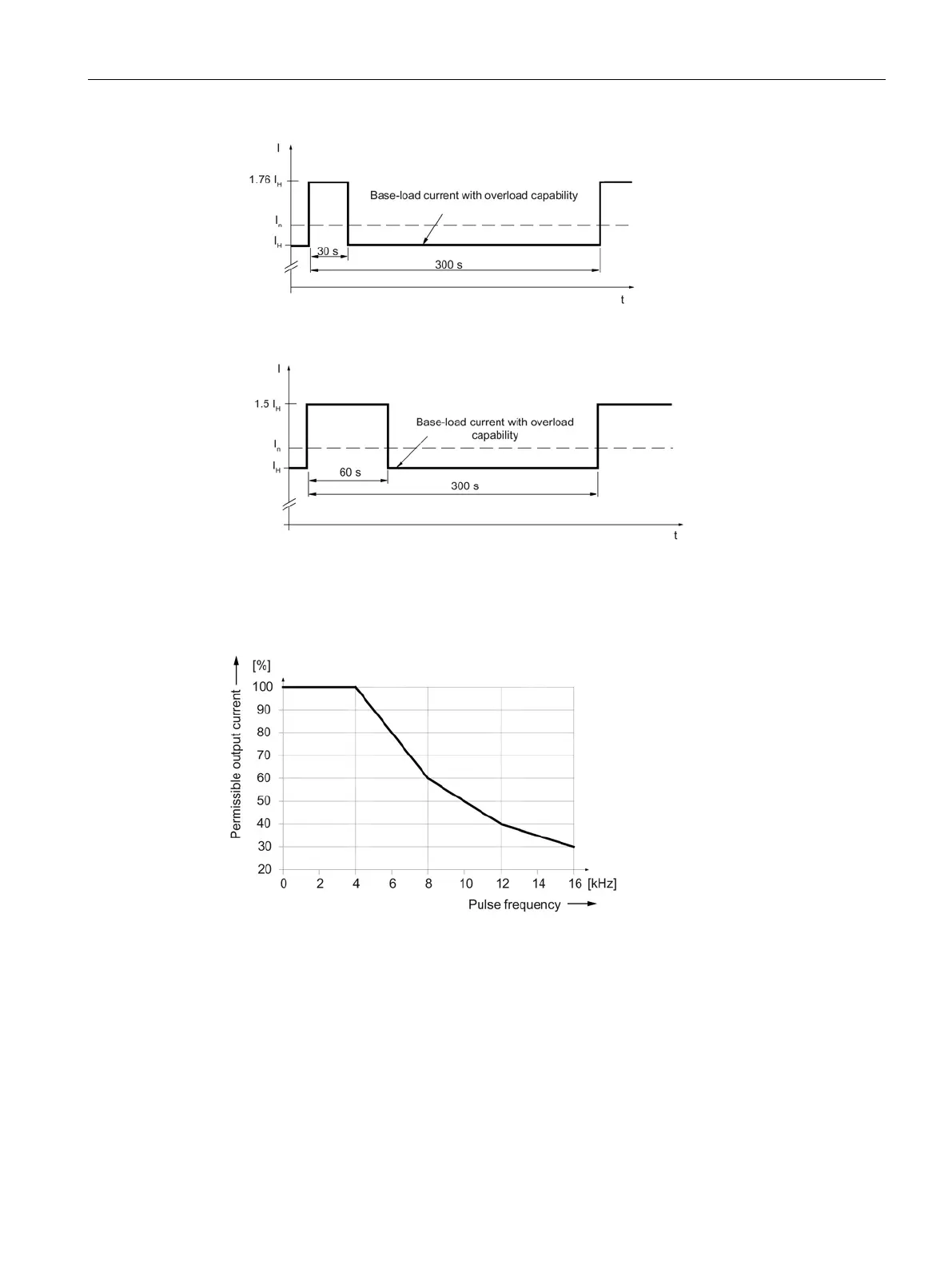

Figure 6-16 Duty cycle with 30 s overload for a duty cycle duration of 300 s
Figure 6-17 Duty cycle with 60 s overload for a duty cycle duration of 300 s
Derating characteristics for Motor Modules Booksize
Figure 6-18 Output current as a function of the pulse frequency
