Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
401
Air inlet - filter with filter fan
To comply with degree of protection IP54, the surfaces
between the mounting plate and the cabinet strip must
be sealed all round the circumference (e.g. Terostat-91 sealant from the Teroson company).

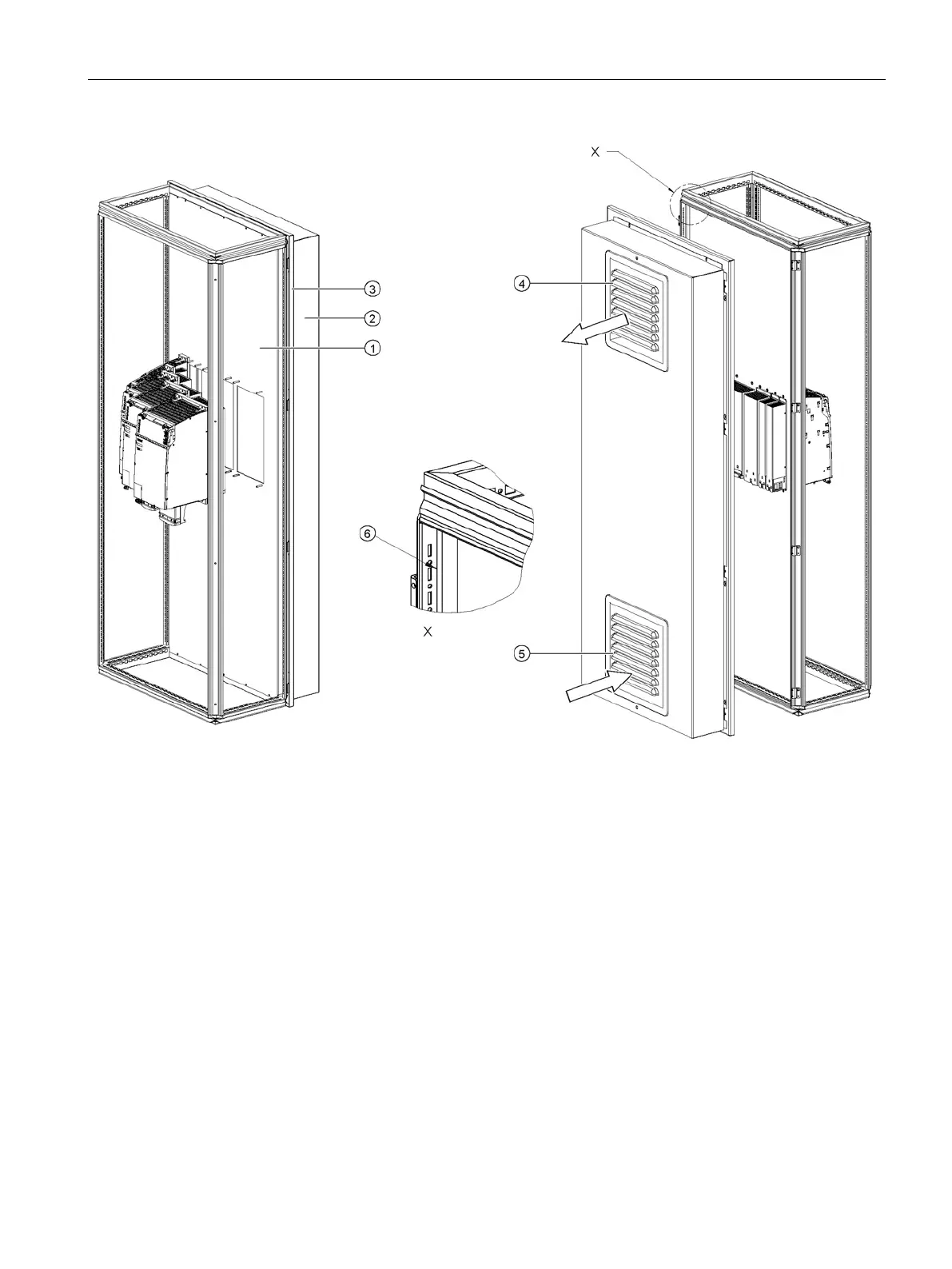

Figure 6-43 Example 1: mounting in the cabinet with mounting plate
