Motor Modules Booksize
6.4 Motor Modules with cold plate
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
431
External heat sink (air or liquid)

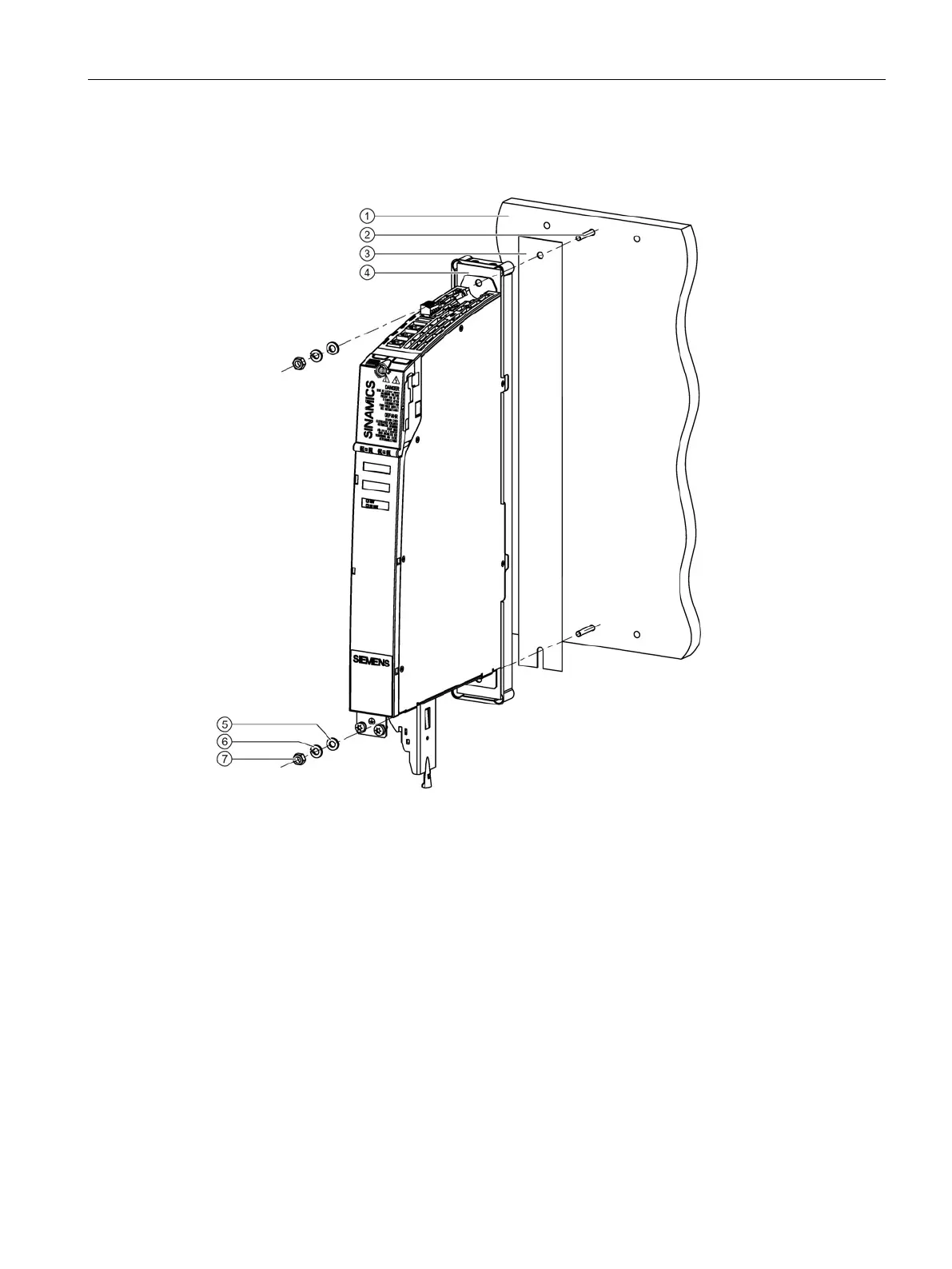

Figure 6-71 Mounting a Motor Module with cold plate on an external heat sink (example: 3 A Motor Module)
:
1. Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
2. Then tighten the nuts.
Tightening torque: 10 Nm
