DC link components
8.6 Control Supply Module CSM
Booksize Power Units
540 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

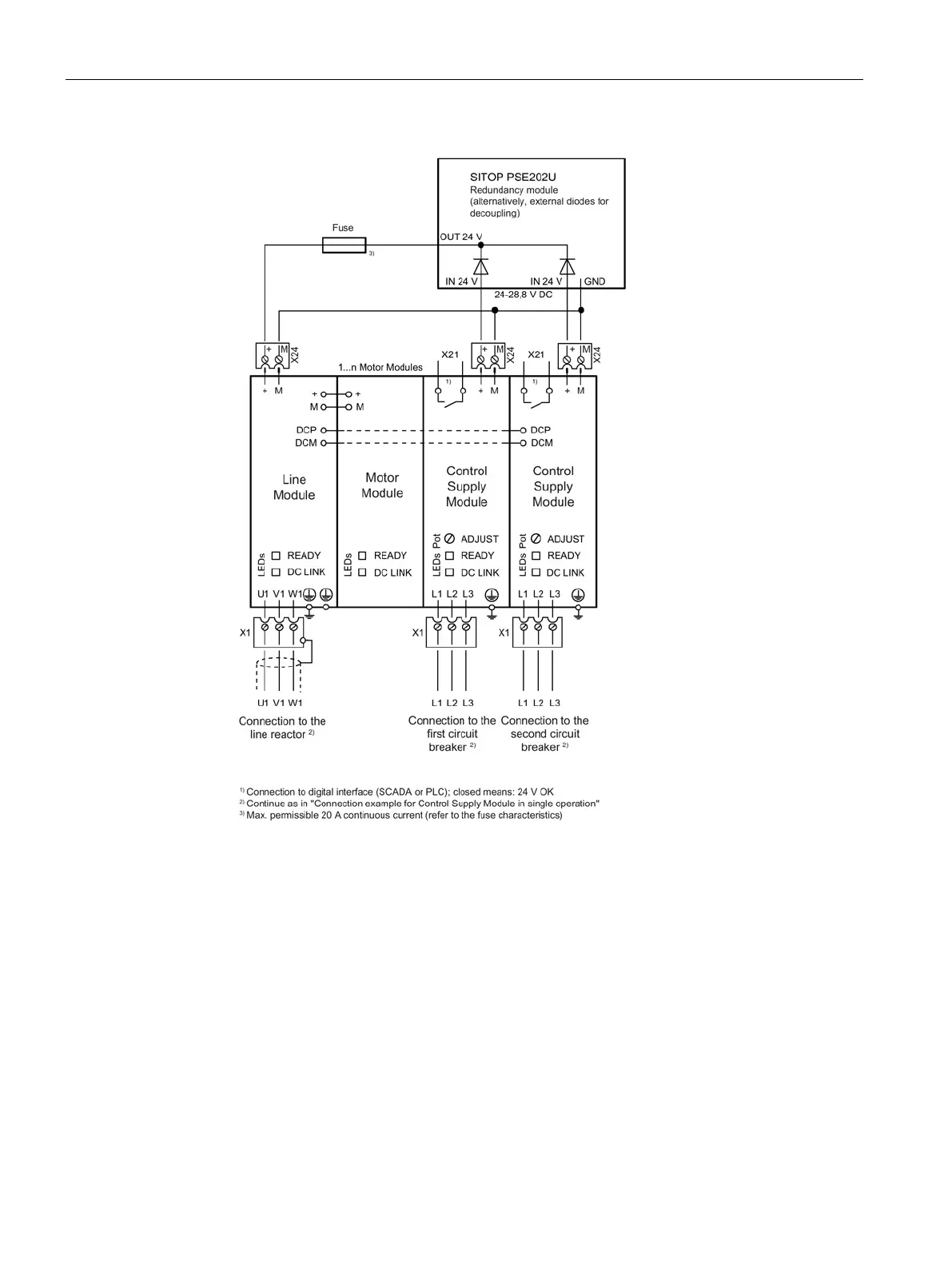

Figure 8-24 Connection example for a redundancy circuit with 2 Control Supply Modules via a SITOP PSE202U
redundancy module
