11.1 Shield connecting plates for power supply and motor cables
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
609

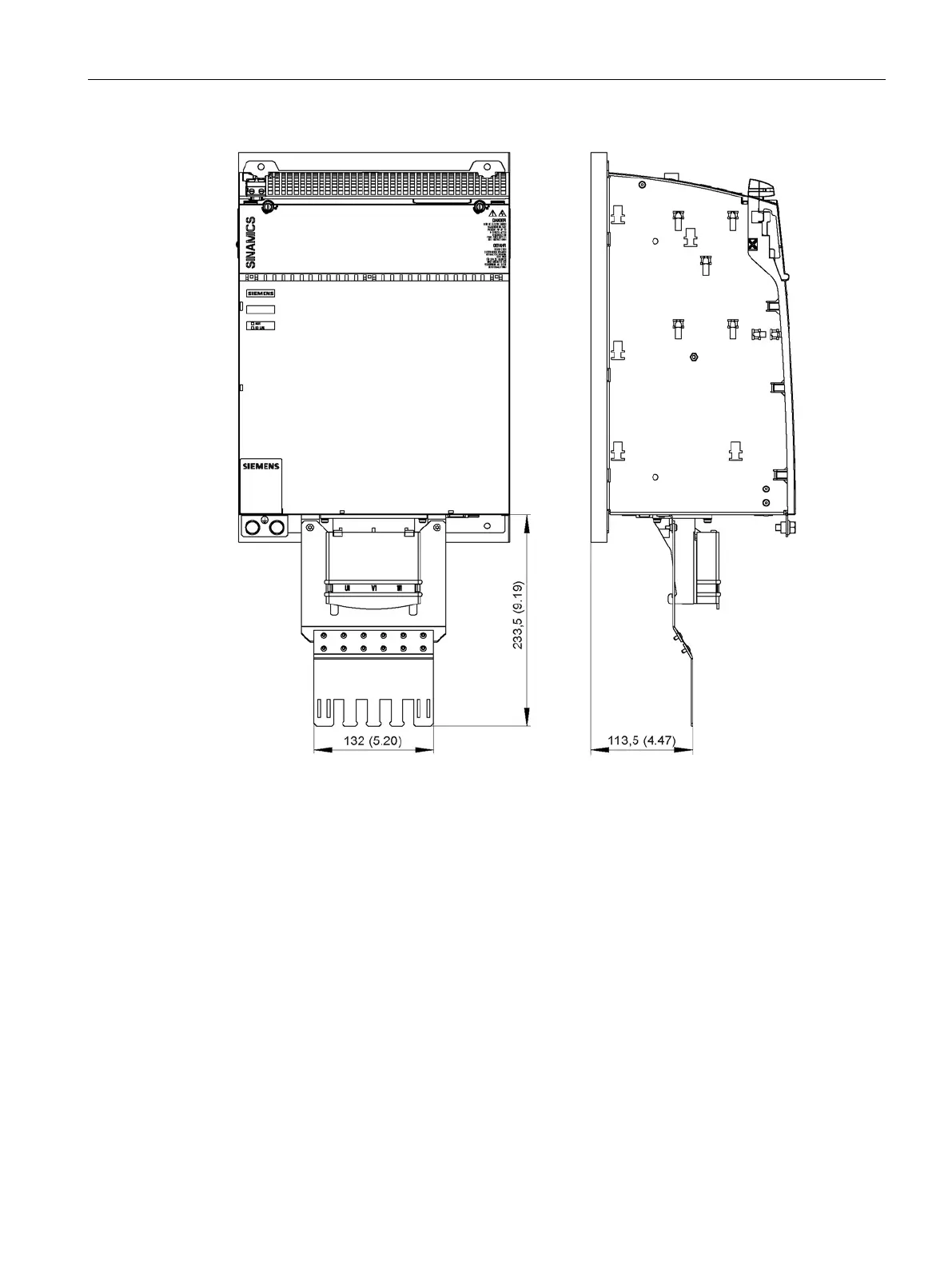

Figure 11-16 Dimension drawing of shield connecting plate on a 300 mm component with cold
plate, all dimensions in mm and (inches)
