Accessories
11.4 DC link rectifier adapter for Booksize format
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
633

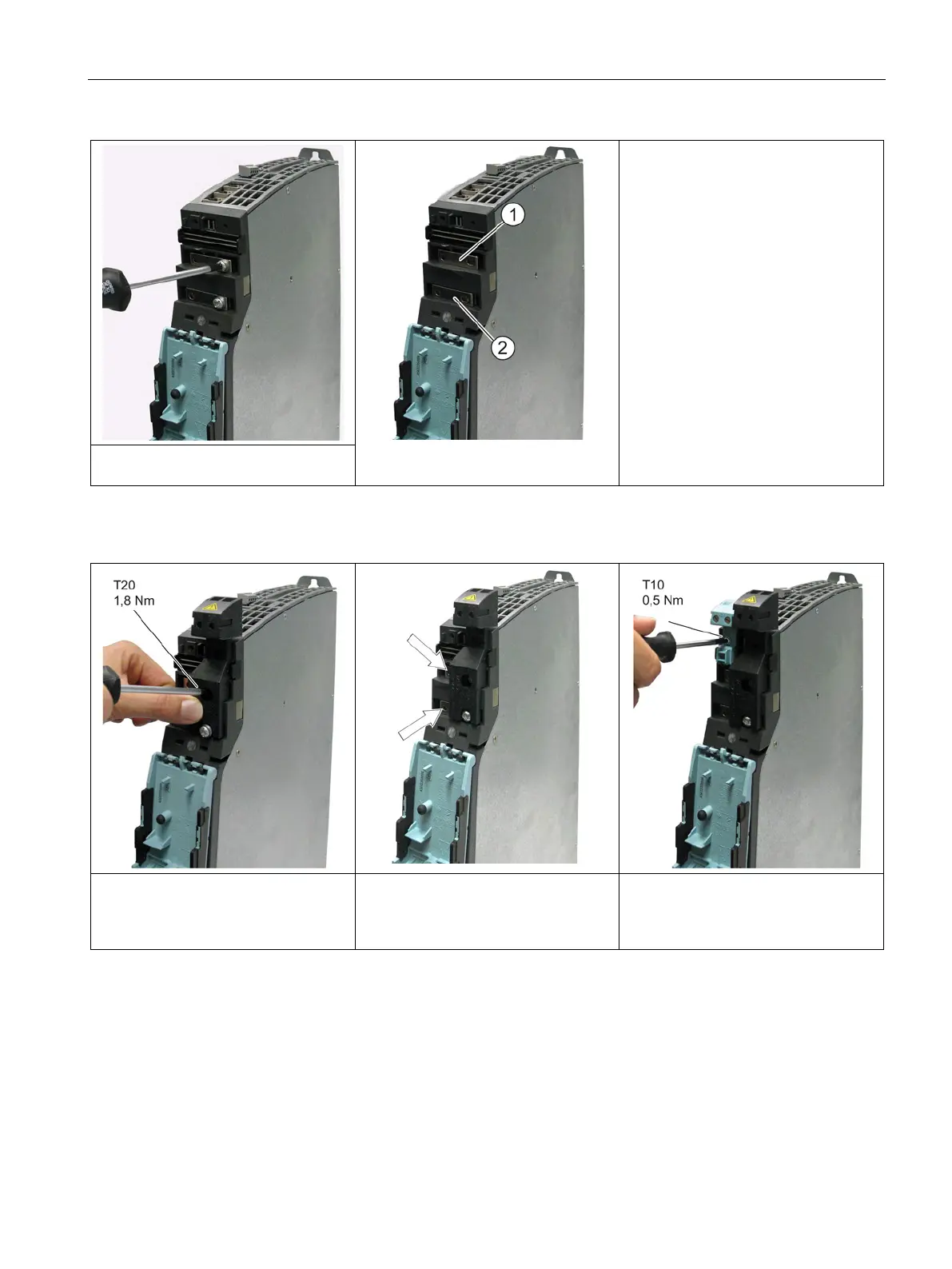

To install the DC link rectifier adapter, it
is essential to leave the DC link bus-
bars ① and ② in the components
(hold firmly to prevent them falling out).
4. Remove the upper and lower right-
hand DC link screw.
Table 11- 17 Installing the DC link rectifier adapter and 24 V terminal adapter
1. Fix and screw (top and bottom) the
DC link infeed adapter on the right-
hand side of the component using the
original M4x20 screws.
2. Do
NOT
use the screw holes on the
left-hand side of the component.
3. Attach and screw on the
24 V terminal adapter using the associ-
ated screw (provided in the accessories
pack).
