Accessories
11.4 DC link rectifier adapter for Booksize format
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
635

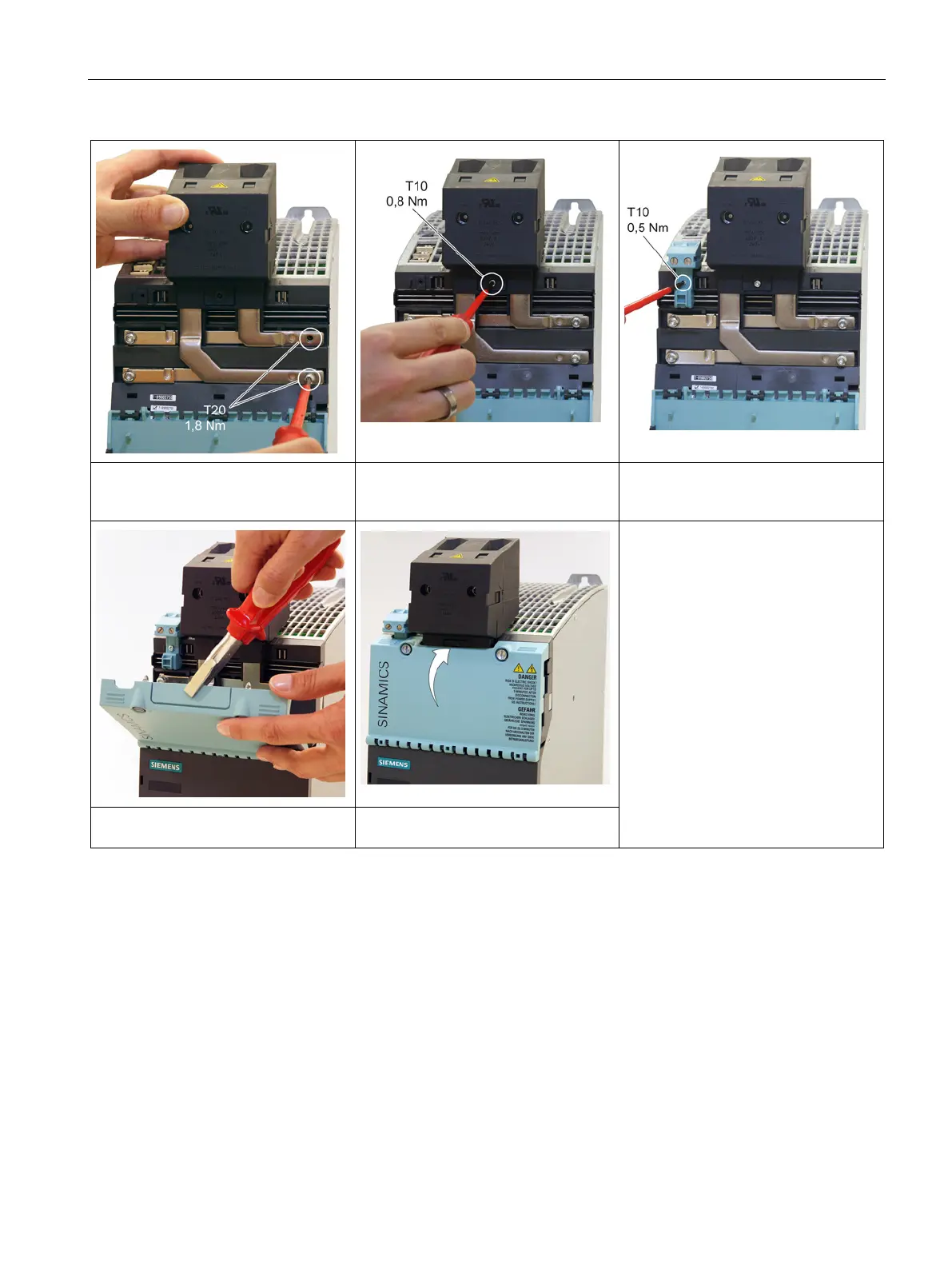

4. Fix the adapter bars with the DC link
screws previously removed.
5. Fix the adapter with the associated
screw (accessories pack).
6. Insert and screw on the 24 V termi-
nal adapter using the associated screw
(provided in the accessories pack).
7. Breakout the cutouts in the protec-
tive cover.
8. Close the protective cover until you
hear it snap into place.
