Accessories
11.8 Spacing bolt for Booksize Compact components
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
663
Mounting spacing bolts with nuts
● Drill Ø 6.5 mm holes for spacing bolts
● Distance 25 mm ± 0.15 mm for module width 75 mm
● Distance 50 mm ± 0.15 mm for module width 100 mm

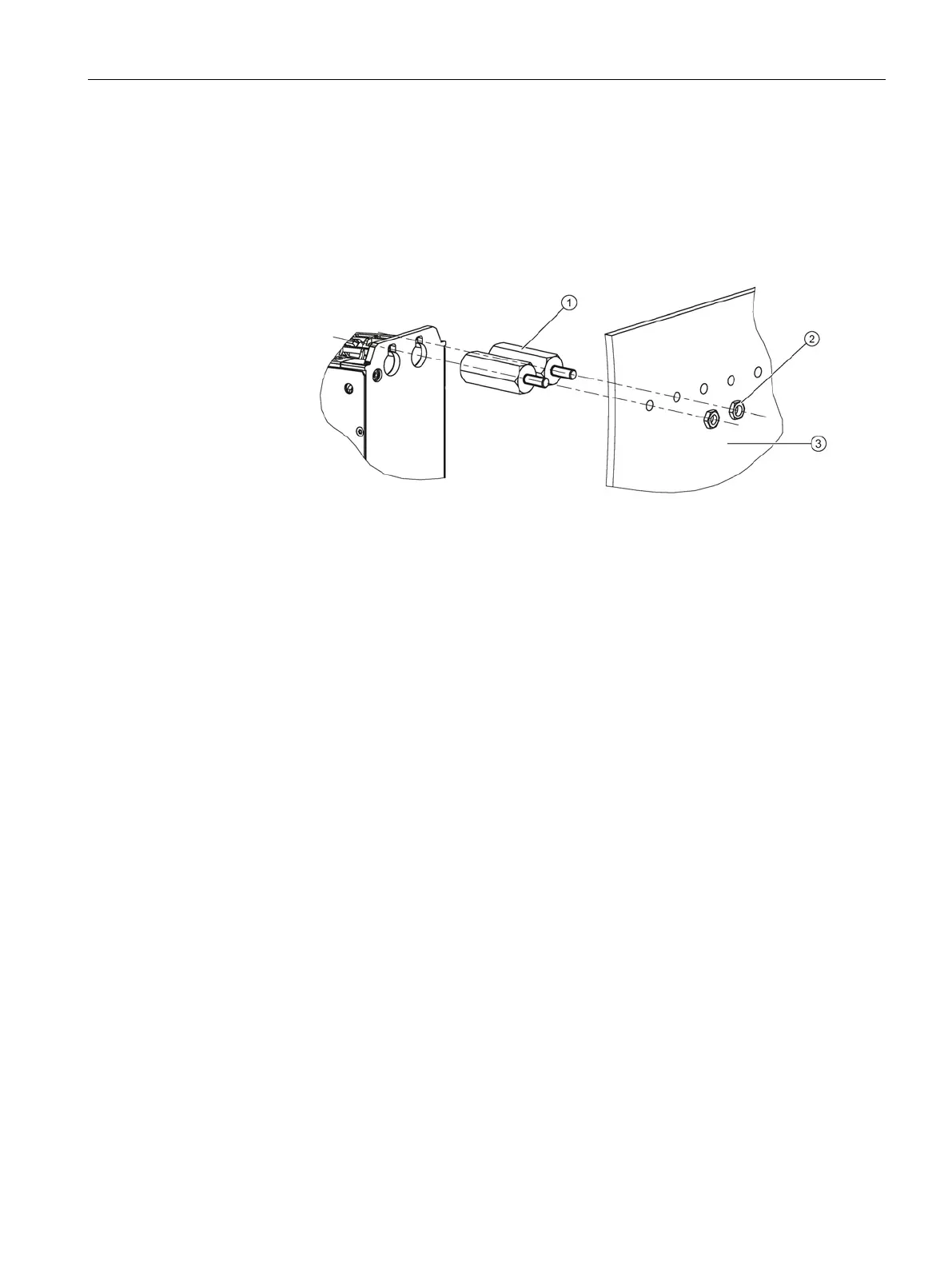

Figure 11-44 Mounting the spacing bolts with M6 nuts on the rear of the mounting panel
: 6 Nm
