Cabinet design and EMC Booksize
12.5 Electrical connection
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
691

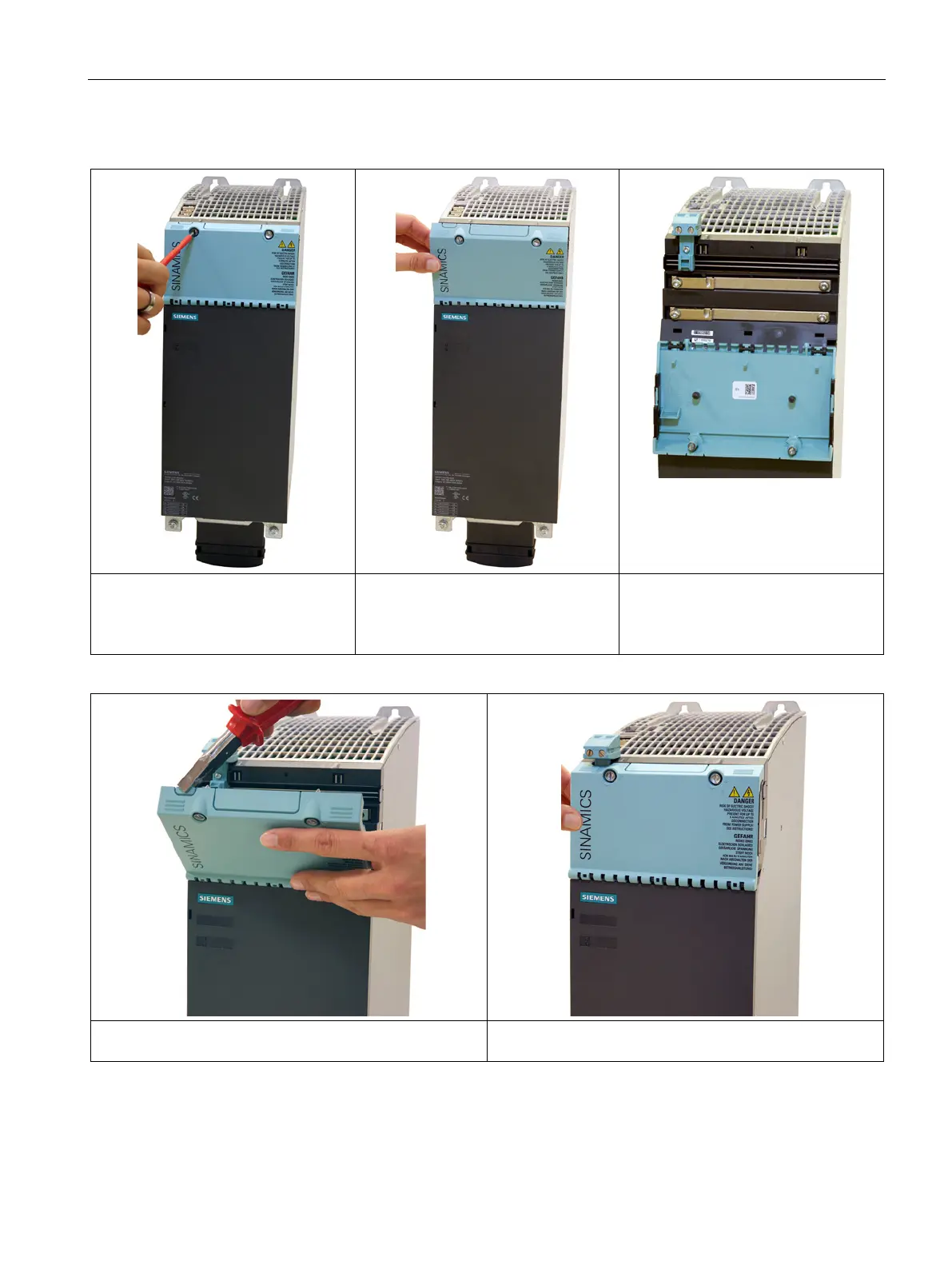

Table 12- 4 Installing the 24 V terminal adapter using an Active Line Module (36 kW) as example
Release the protective cover. Open the protective cover. Clip the 24 V terminal adapter on to the
24 V busbars. Screw the 24 V terminal
adapter tight with the supplied screw.
Tightening torque: 0.5 Nm
Break out the cutout in the protective cover. Close the protective cover. The protective cover must latch
into place audibly.
