Cabinet design and EMC Booksize
12.6 24 V DC supply voltage
Booksize Power Units
698 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

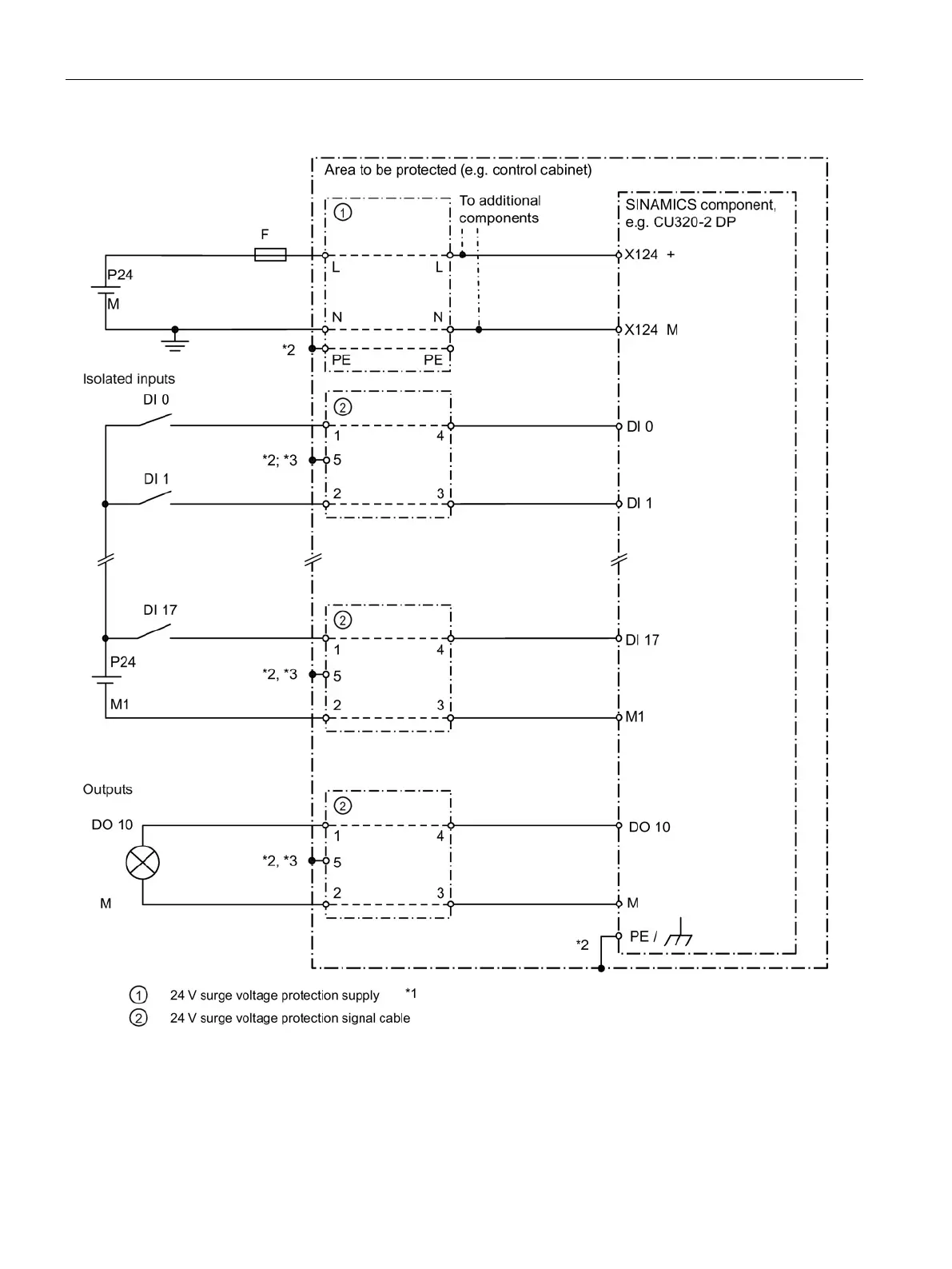

Figure 12-23 Connection example: Surge voltage protection components from Weidmüller connected to SINAMICS
components
