Cabinet design and EMC Booksize
12.11 Notes on electrical cabinet cooling
Booksize Power Units
750 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Drive line-up with internal air cooling

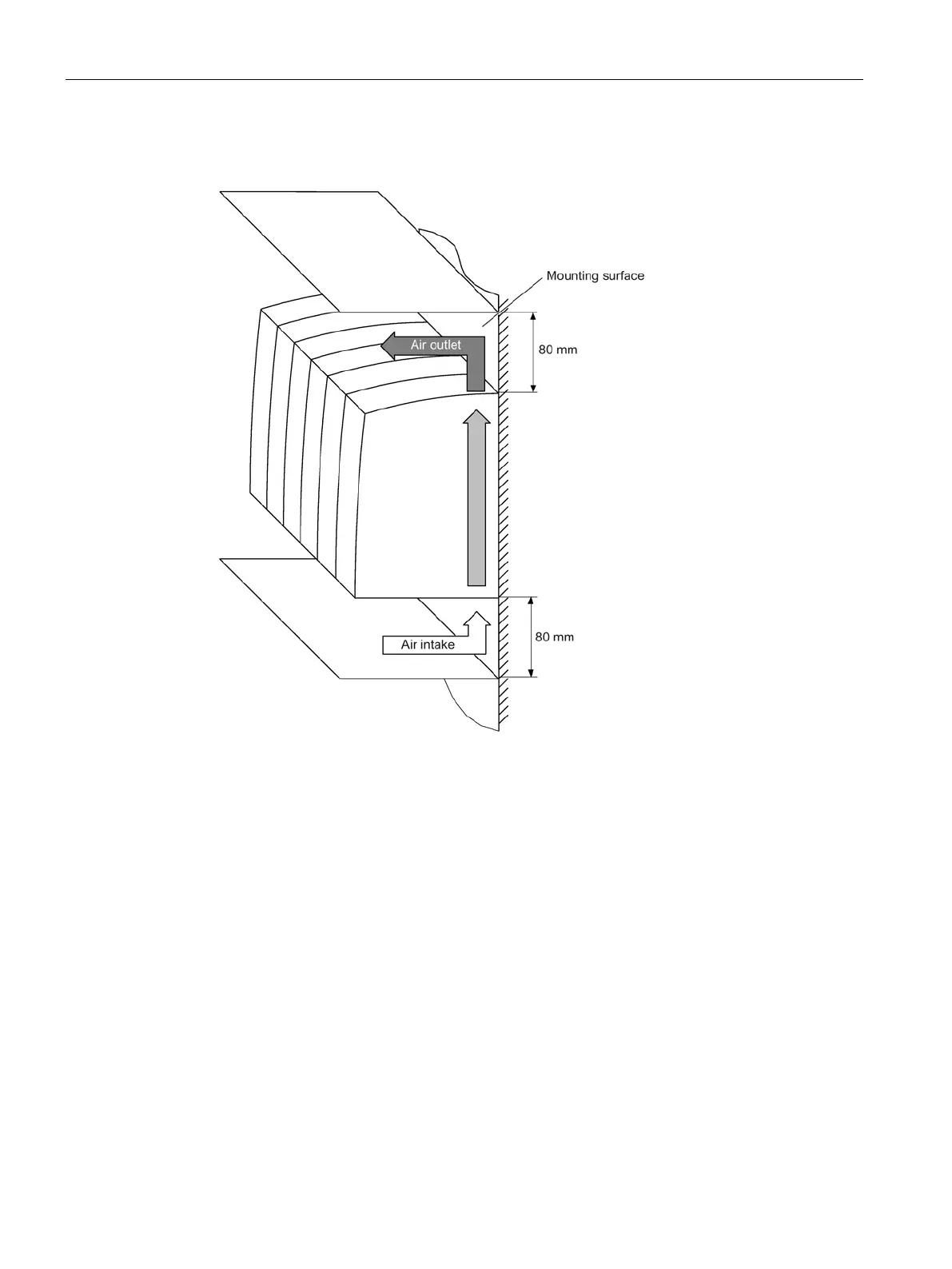

Figure 12-44 Cooling clearances for a drive line-up with internal air cooling (components up to 200
mm width)
