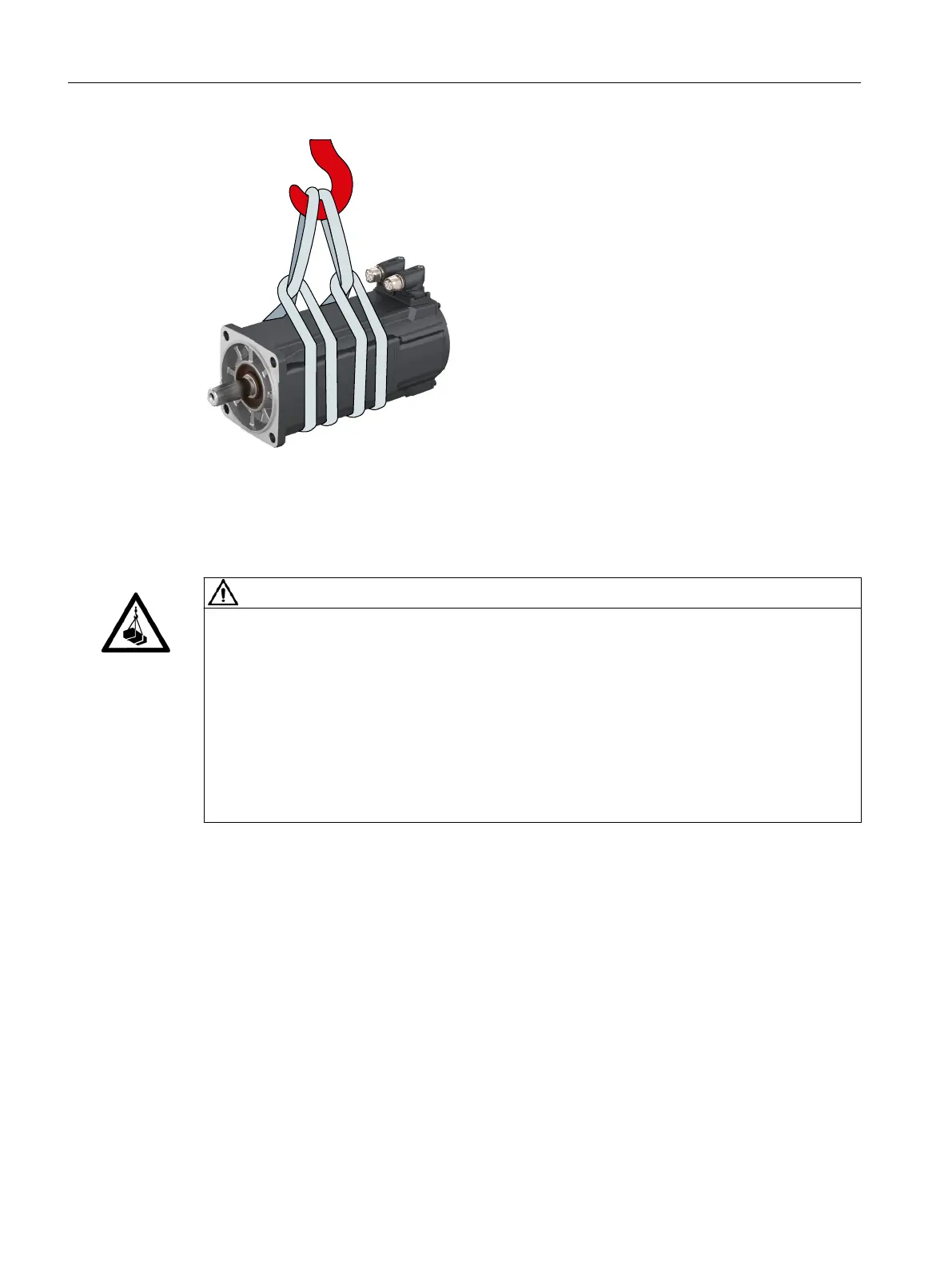

Figure5-2 Lifting and transporting with lifting slings (example diagram)
Lifting and transporting the motor using eyebolts
The 1FL2310 motor (SH90) has tw
o M8 threaded holes for screwing in two eyebolts. You can
use eyebolts and a crossbar for lifting and transporting the motor.
WARNING
Incorrect or unused lifting points
Due to incorr
ect or unused lifting points, the motor can fall and cause death, severe injury
and/or damage to property.
• Only lift and transport larger motors using the eyebolts.
• Completely screw in the eyebolts and tighten by hand (approx. 10 Nm, or according to your
specic requirement).
• Do not use bent or damaged eyebolts.
• Only use eyebolts with laminated ber washers.
• Loads applied transversely to the plane of the eyebolts are not permitted.
Mounting
5.2Motor
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
104 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
