1. Screw in the eyebolts.


① Position of the eyebolts
2. Hook the crossbar into the eyebolts.

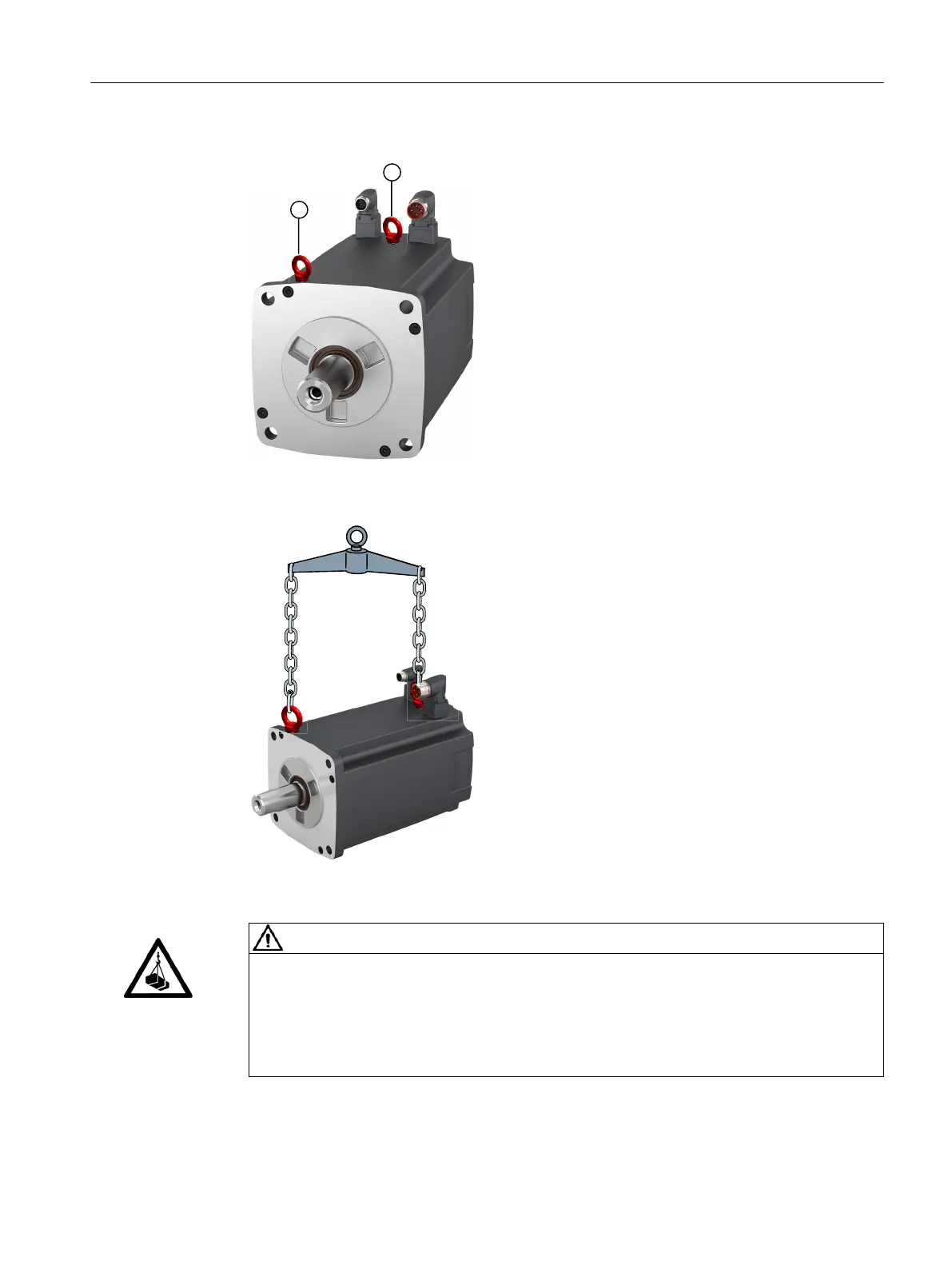

Figure5-3 Lifting and transporting with a crossbar (example diagram)
3. Set the motor down on a hard, level surface.
WARNING
Danger of severe injury due to unintentional movements of the motor
If
t
he
motor is not secured after being set down, unintentional movements of the motor can
cause serious injury.
• After the motor has been set down, secure it in position.
• Do not release the lifting devices until the motor has been secured in position.
4. Secure the motor against unintentional movements.
