Siemens SINAMICS SIMOTICS S200 PROFINET User Manual

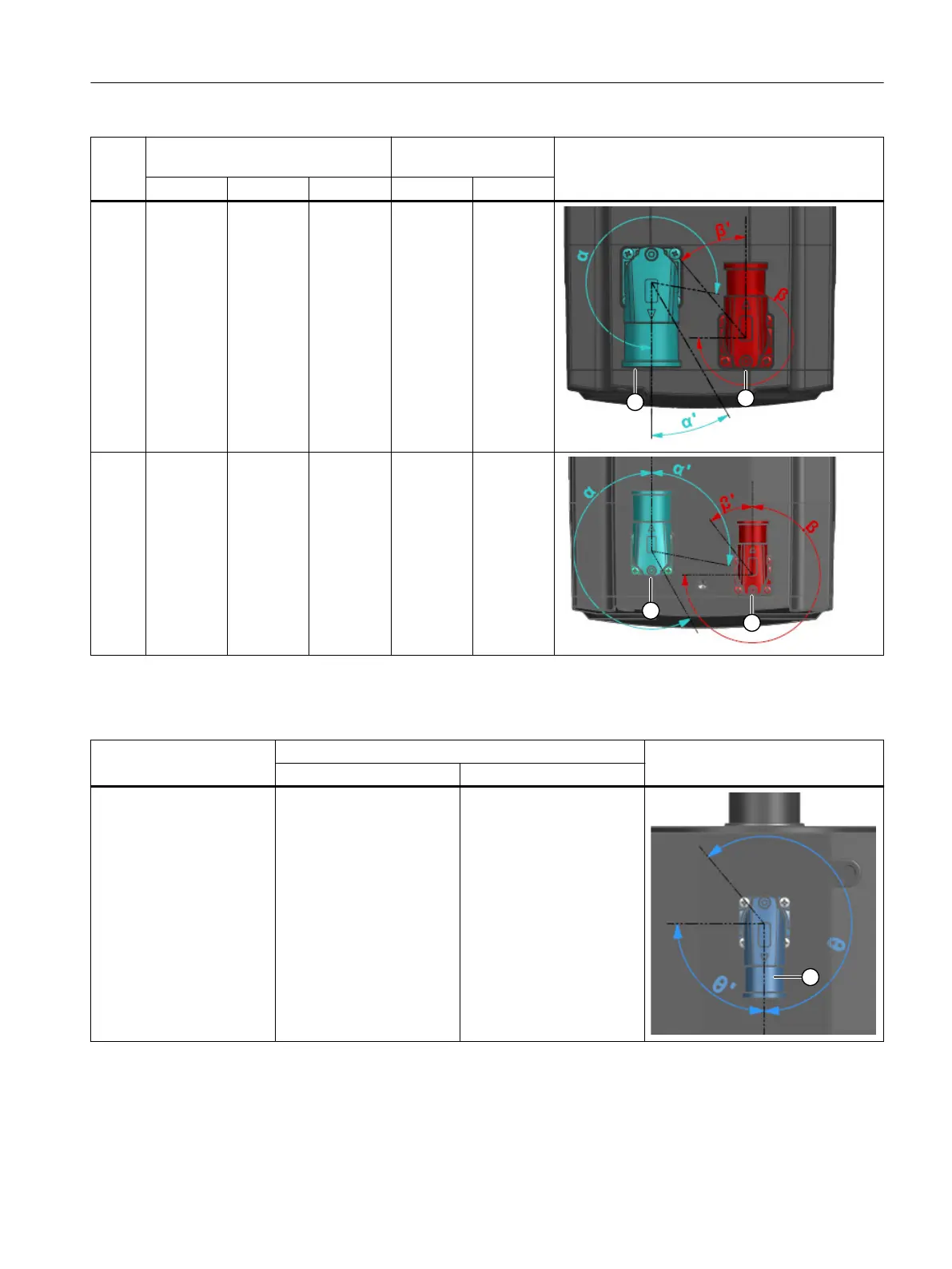

Motor Power connector ①,
size M17 and M23
Encoder connector ②,
size M17
Drawing
Size Angle α Angle α' Angle β Angle β'
SH65 M23 280° 30° 270° 40°


SH90 M23 210° 100° 270° 40°


Table 6-8 Rotation range of the holding brake connector ③
Motor Holding brake connector ③, size M17 Drawing
Angle θ Angle θ'
SH45
SH65
SH90
220° 90°

Connecting
6.5Connecting the motor
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 147
