Siemens SINAMICS SIMOTICS S200 PROFINET User Manual

















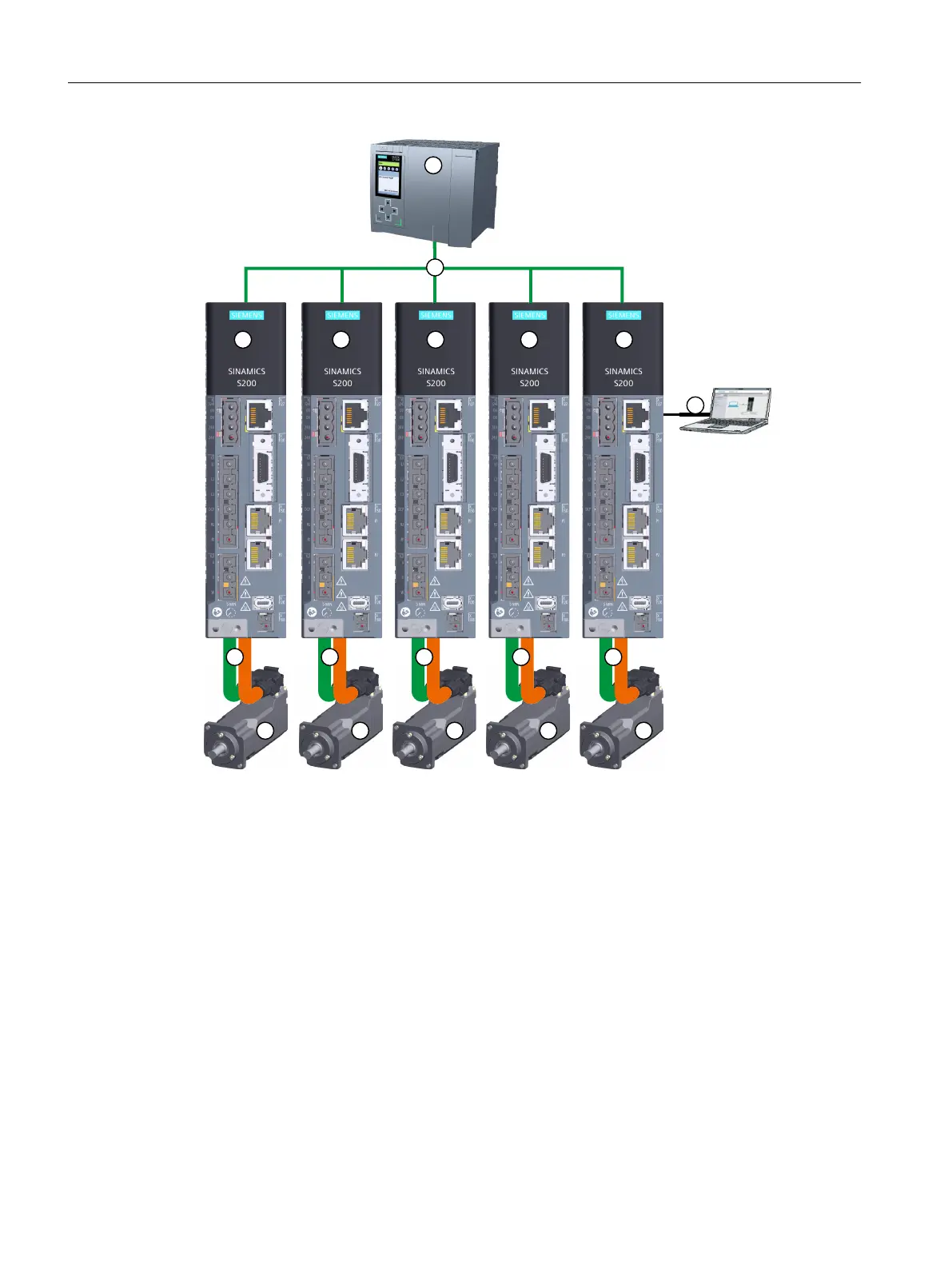

① Controller (for example, SIMATIC S7-1500)
② Communication between the converter and the controller via PROFINET
③ SINAMICS S200 converter product line (PN version)
④ Engineering via LAN with the web server in the converter
⑤ MOTION-CONNECT 350 or MOTION-CONNECT 380 cables for the motor power, the motor holding
br
ake, and t
he encoder connections
⑥ SIMOTICS S-1FL2 motor
Figure3-1 System overview
Description
3.1System overview
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
40 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
