Siemens SINAMICS SIMOTICS S200 PROFINET User Manual




O
O
① Motor
② Motor shaft
③ Dial gauge

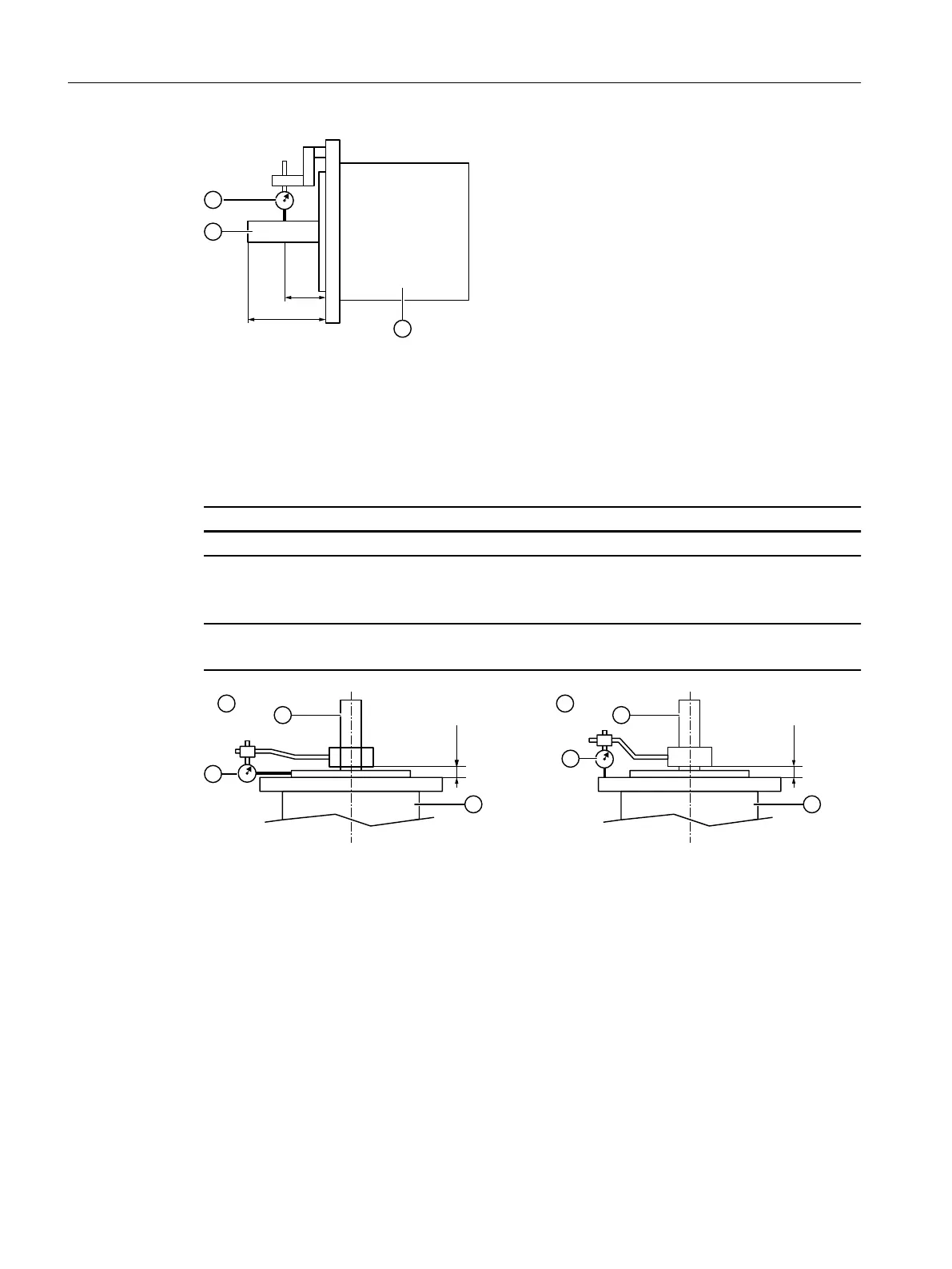

Figure14-4 Checking the radial eccentricity
Table 14-24 Concentricity and axial eccentricity tolerance of the 󹪞ange surface t
o the shaft axis
(referring to the centering diameter of the mounting 󹪞ange)
Motor Standard (Normal class)
1FL2102 0.06mm
1FL2☐03
1FL2☐04
1FL2☐05
0.08mm

1FL2306
1FL2310
0.1mm






PP
PP
$%
A Check for concentricity ① Motor
B Check for axial eccentricity ② Motor shaft
  ③ Dial gauge
Figure14-5 Checking the concentricity and axial eccentricity
Technical data
14.2Technical data of the motor
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
634 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
