A.4.1 Assembling connectors on the converter side
A.4.1.1 As
sembling the cable lugs
Overview
This section oers general assembly instructions for cable lugs and is applicable to the following
cables:
• Mains supply cable
• 24 V DC power supply cable
• Motor holding brake cable
• Motor power cable
• External braking resistor cable
• STO connection cable
Requirement
You have prepared appropriate tools, raw cables, and cable lugs.
Procedure

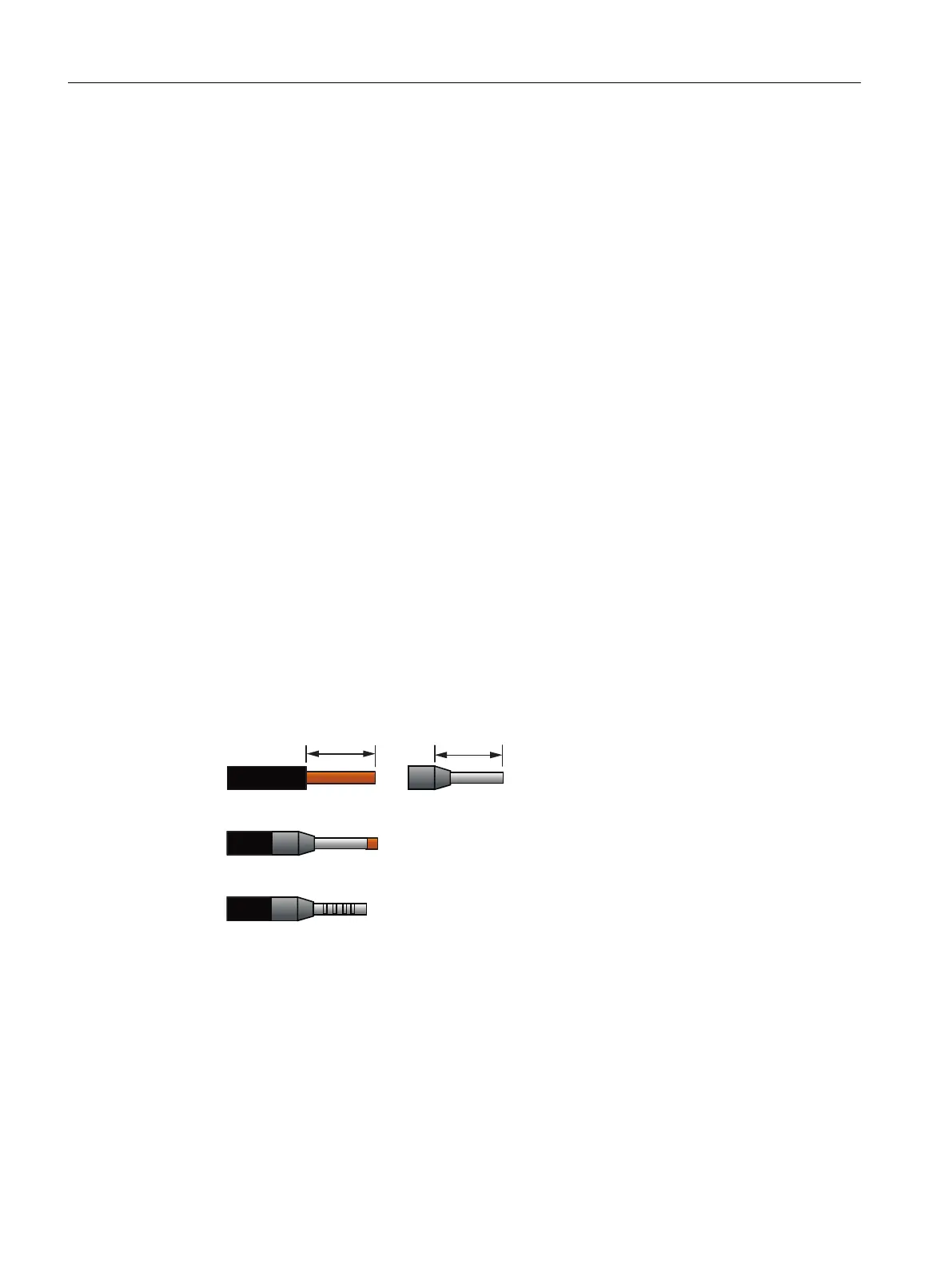

1. Remove the outer sheath of the cable.
2. Remove the insulation from the conductor. For more information about stripping length, see
Section "Cables and connectors (Page130)".
3. Insert the stripped end into the cable end sleeve.
4. Crimp the cable end sleeve.
Appendix
A.4Assembling cables
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
880 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
