A.4.1.2 Assembling the encoder connector
Overview

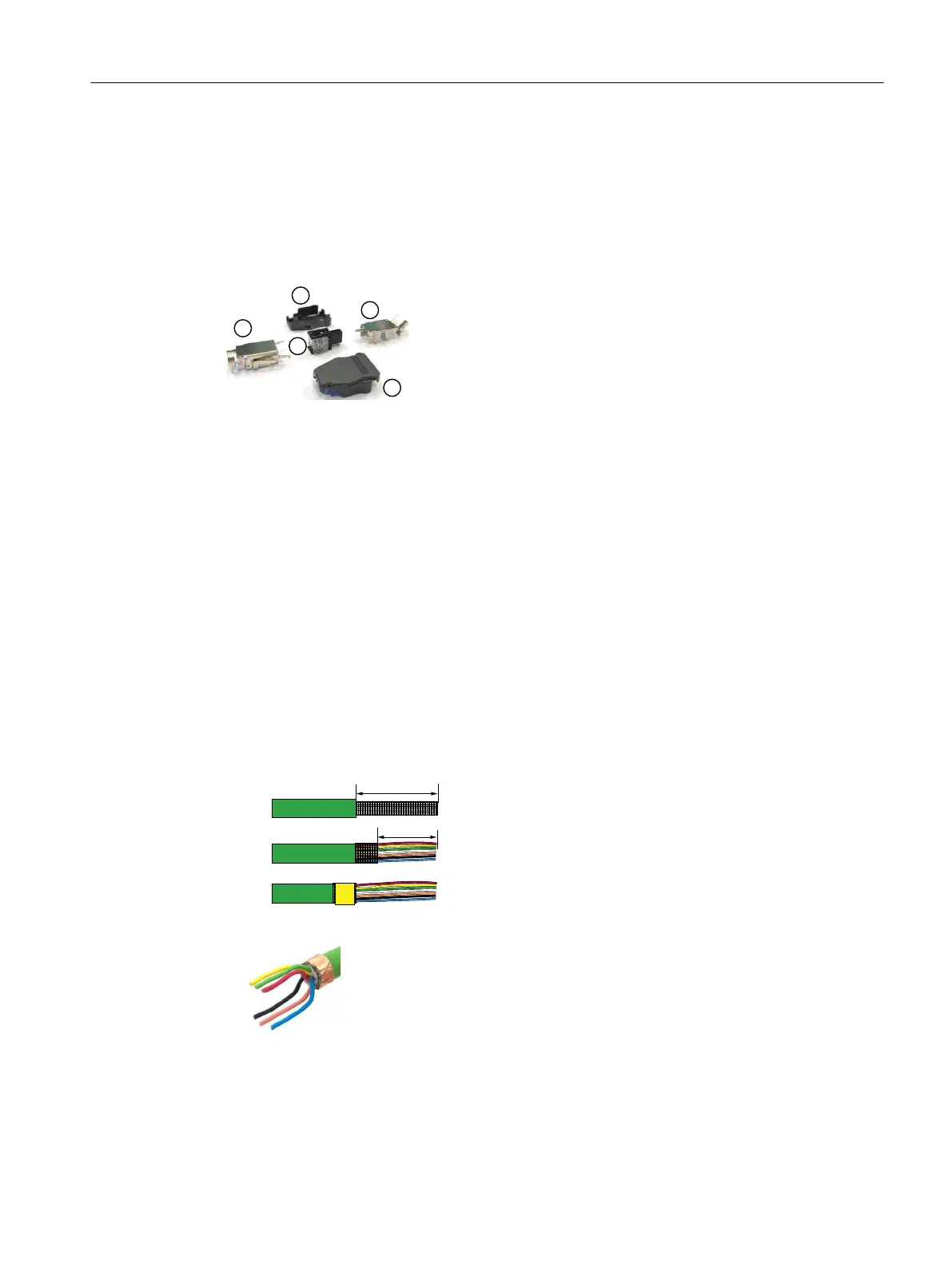

The Siemens IX-C connector is used for encoder connection to the converter. It consists of the
following components:





① Shielding A ④ Front cover
② Back cover ⑤ Insulation-displacement contact (IDC) terminal
③ Shielding B  
FigureA-1 IX-C connector
Requirement
Y
ou hav
e prepared appropriate tools, a raw cable, and the Siemens IX-C connector.
Procedure
1. Prepare the cable.
– Remove the outer sheath of the cable by 17 mm.
– Remove the cable shield by 12 mm.
– Fold the remaining cable shield backward over the cable sheath, and wrap the folded
cable shield with copper tape.
PP
PP
2. Arrange the conductors as shown below.
Appendix
A.4Assembling cables
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 881
