A.4.2 Assembling connectors on the motor side
A.4.2.1 As
sembling the hybrid plug for 1FL2 motors, shaft heights 20, 30, and 40
Overview
The Siemens hybrid plug is used for connecting the converter to the motor and the encoder in
the motor. It consists of the following components:













① Cap ⑧ Signal unit case
② Clamp ⑨ Power unit case
③ Gasket ⑩ Hybrid power contact
④ M2 screw ⑪ Hybrid brake contact
⑤ Seal case ⑫ Sealing ring
⑥ Housing ⑬ Shield holding plate
⑦ Hybrid signal contact  

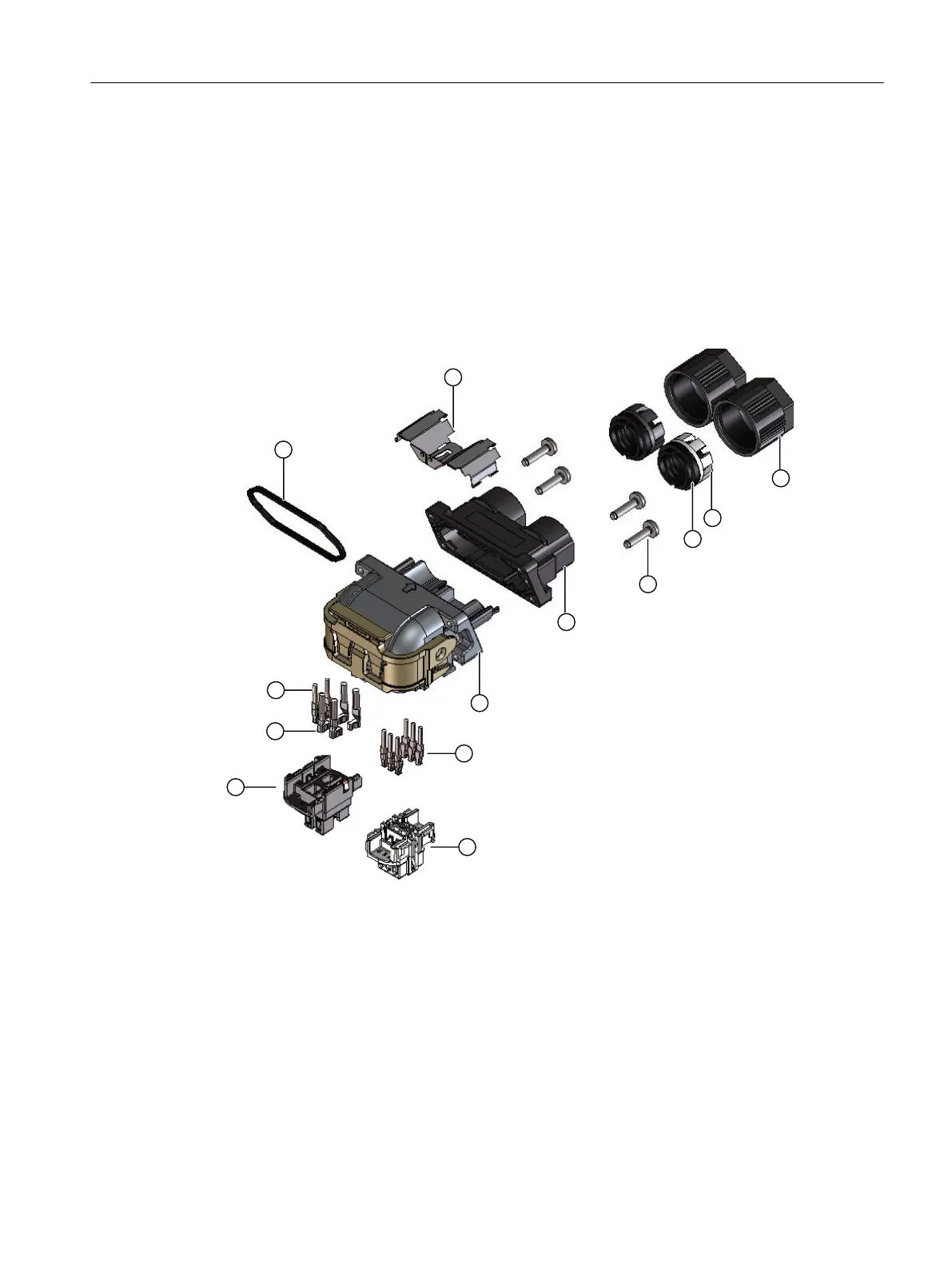

FigureA-3 Hybrid plug overview
Appendix
A.4Assembling cables
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 885
