Siemens SIPROTEC 7UM62 User Manual

Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
376
Input/Output Board C-I/O-2
Two different releases of the input output board C-I/O-2 are available. For devices up to release 7UM62.../DD
the layout of the printed circuit board is shown in Figure 3-6, for devices of release 7UM62.../EE and higher it
is shown in Figure 3-7.

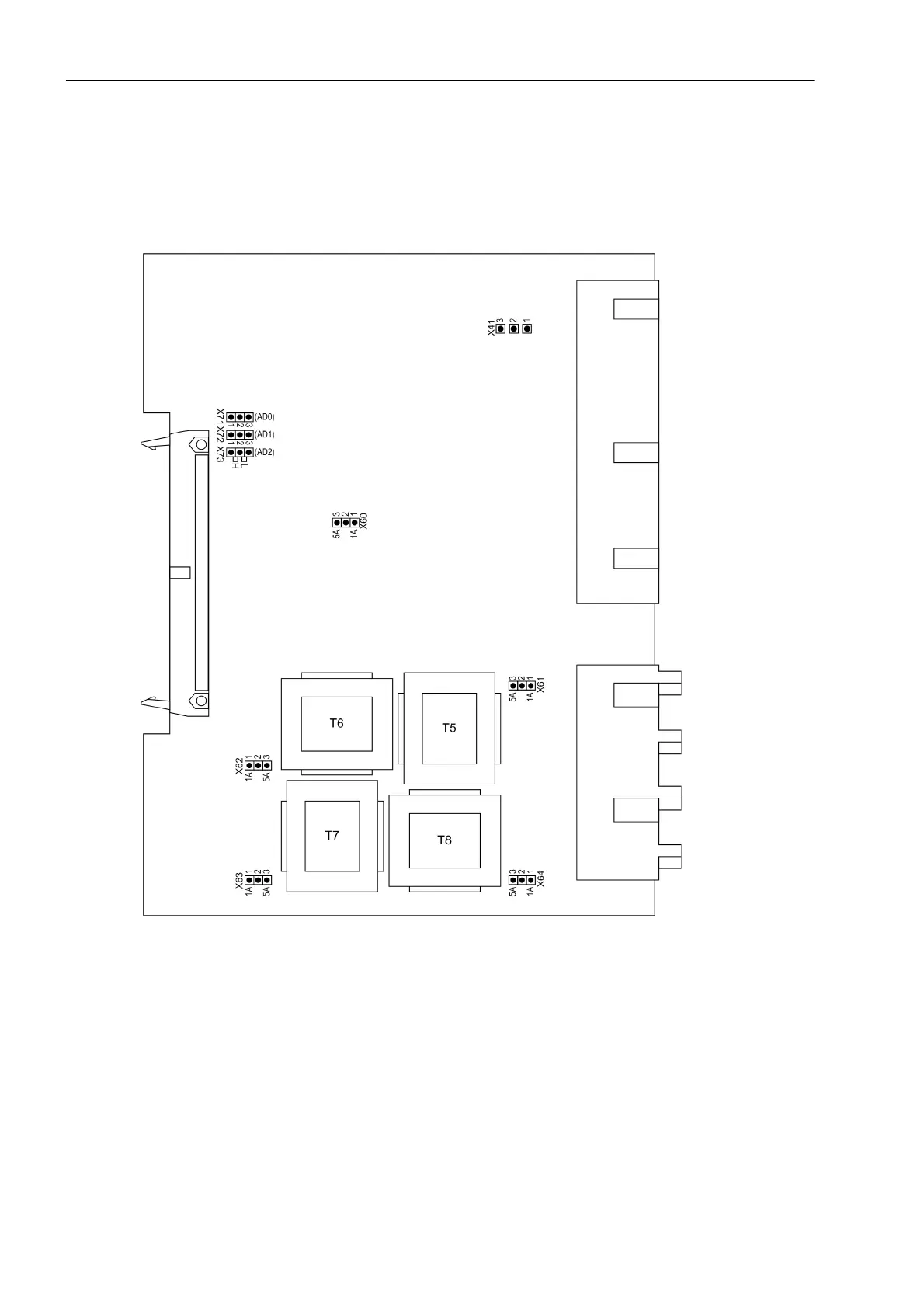

Figure 3-6 Input/output board C-I/O-2 up to release 7UM62.../DD, with representation of the jumper set-
tings required for checking the configuration settings
The contact type of binary output BO6 can be changed from normally open to normally closed (see overview
diagrams in section A.2 of the Appendix):
with housing size
1
/
2
: No. 3 in Figure , slot 33
with housing size
1
/
1
: No. 3 in Figure , slot 33 right.
