CD600 Plus - User’s Manual
9.4

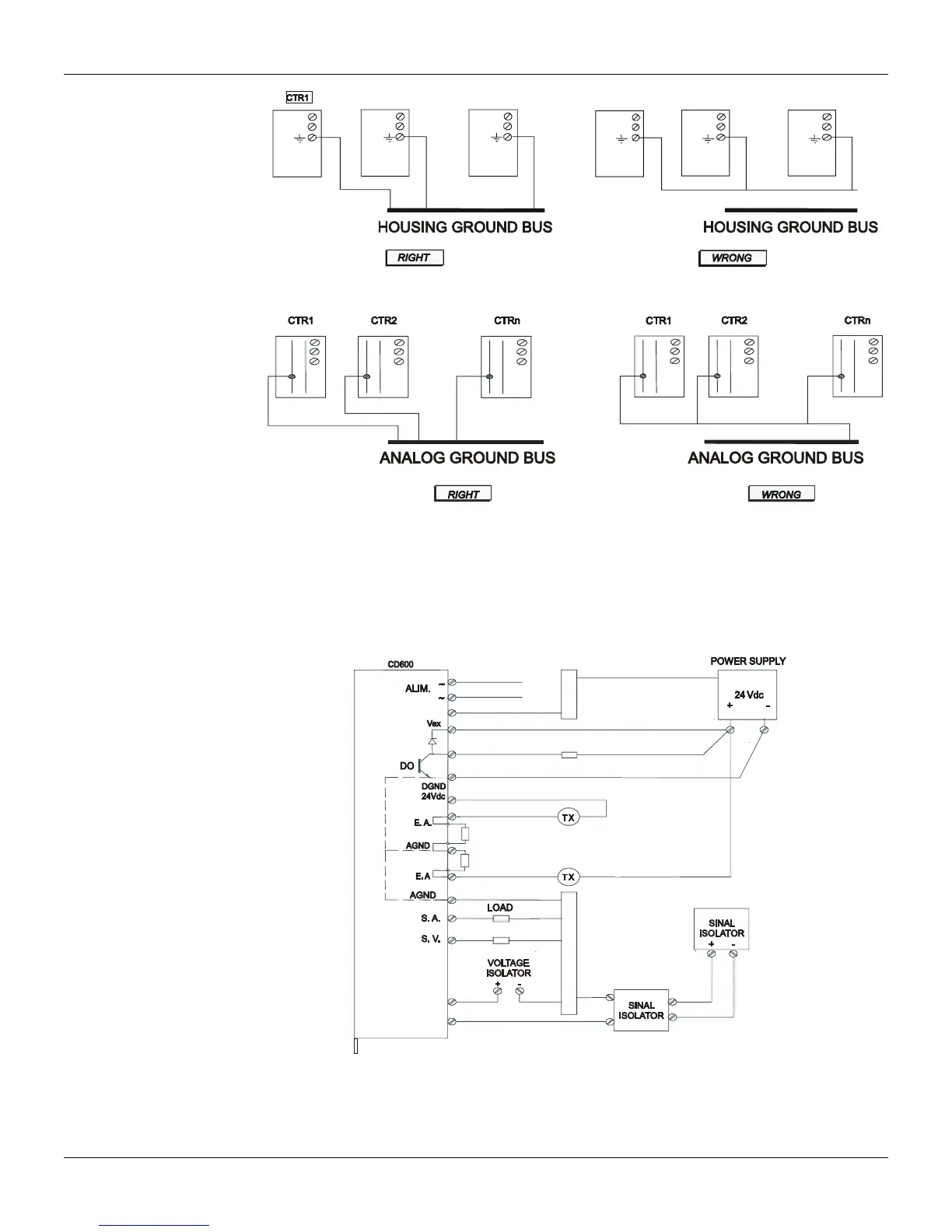

Figure 9.2 – Housing Ground Connection
Figure 9.3 – Analog Grounding Connection (Terminals: 10,33,38)
NOTES:
• The digital grounding (terminal 23 DGND) is internally connected to the analog ground (terminal
10,33,38 AGND).
• The equipment connected to the analog voltage input/output should be isolated from the digital
ground. Otherwise, it is recommendable signal isolators.
HOUSING
AC INPUT / DC INPUT
GROUND
BUS
SHUNT RESISTOR FOR E.A.
SHUNT RESISTOR FOR E.A.
E.A. VOLTAGE
E.A. VOLTAGE
Fig. 9.4 – Power Supply CD600 Plus AC / DC
