Assignable controls within the channel strip may be set up as clones of any channel function,
suchas those involvd in routing or signal processing, so that you may keep commonly-altered
or vital settings permanently available. Softkeys can also be used to make Standard-level
controls available to Preset-level users.
Press the (( button on the channel whose softkeys you wish to assign.
Press the $&! button in the Master Control Strip at the base of the Touchscreen,
and then press the &button which appears to its right.
The Quik-Control display at the bottom of the Channel Information Display and the labels in
the scribble strip below the Scribble keys will all display a flashing dashed line, followed by any
currently assigned function name.

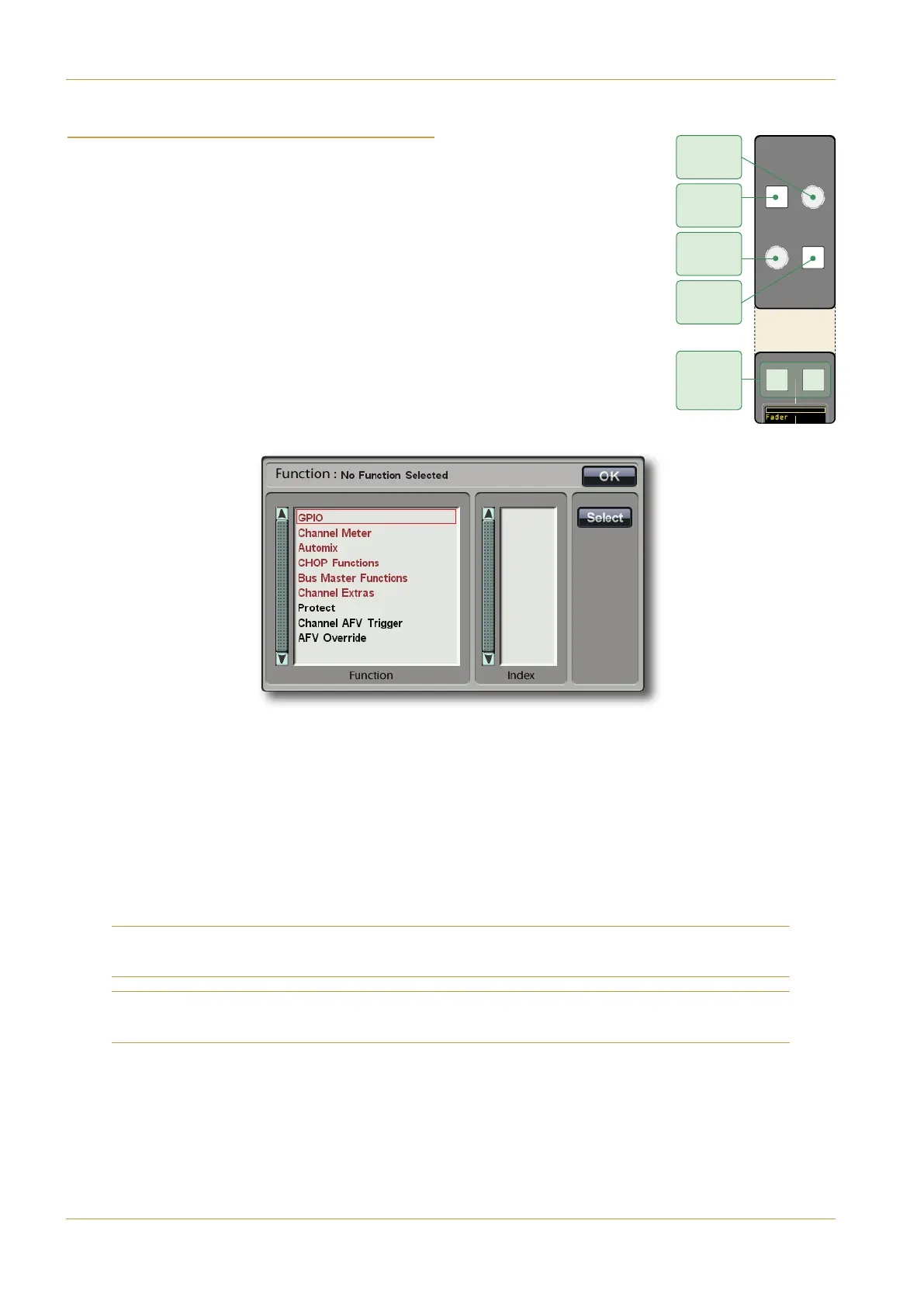

A Function display similar to the one used for Centre Section softkeys will also in the bottom-
left of the Touchscreen, and can be used in precisely the same way.
Press or turn whichever softkey that you want to use. If it is a Quik-Knob or Scribble Key,  appears in its display
to indicate that it has been selected. If it is a Quik-Key, it will flash.
Press or turn the required button/control on the Master Channel, or select the required entry from the Function
display. If Quik-Knob is assigned a Master Channel rotary control that has an associated button (such as in the Aux sends),
then that button will be automatically assigned the Quik-Key adjacent to the Quik-Knob.
To cancel an existing softkey assignment, use the procedure described above, but when shows in the control
display, deselect the $&! button to clear the assignment.
Press # to close the display.
Note that fader starts are configured via the CH SET button in the Master Control Strip, as described in the Operator’s
Manual.
Note also that some Center Section functions, such as Aux and Mix Minus talkback activation, can be assigned to
Channel softkeys
