C10 HD Installation Manual Section 5: System Administration | Page 5-17
'$*) "#*
The '?DC5 menu within the Maintenance pages holds a number of items that form key elements of the C10 I/O
and routing configuration.
Under the '?DC5 icon are five submenus: #1=5B, A?D@B&D93;A?DC5CA<!9>;, $!9>;B and "$'(.
#
"(
This menu is used to name physical inputs and outputs, and create suitable multichannel ‘bundles’, before arranging the IO

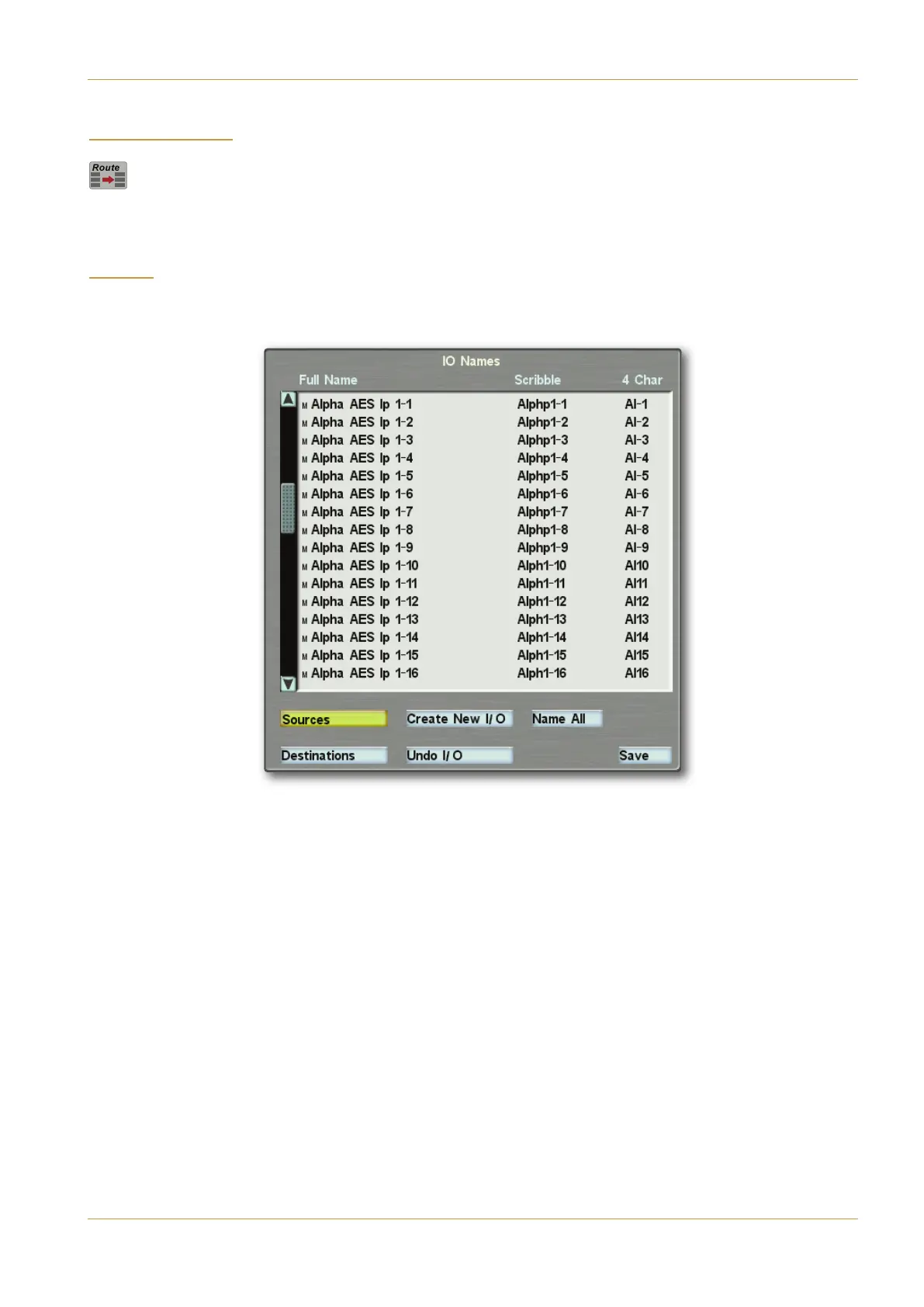

into logical groups within the $A?D@B pop-up (see Page 5-20). It has two pages: (?DA35B and 5BC9>1C9?>B:
Initially, sources are listed with default names. These names are constructed as follows:
- The IO type is displayed first, with Alpha-Link sources prefixed <@81, and sources from a DHD stagebox prefixed
‘’. IO type labels include the following:
$)H@5 !125<
AES input AES
Mic card Mic
Line in on Alpha-Link or DHD Stagebox IO card Line
Line in on DHD Stagebox Line In card 5260
Line in on RIO card ADC
DHD Stagebox SDI card Embed
Route Menu
