There are 12 local GPI ports, in addition to those present in any RIO connected to the console (RIOs have 24 GPI ports),
providing opto-isolated inputs and relay closure outputs for simple and reliable connection to equipment such as playback
machines and external controllers.
The inputs may be used to trigger any of the console’s internal switch functions such as Talkback, or they may be used to
indicate tallies from external machines such as the transport status of a CD player.
Likewise, outputs may be set to indicate the status of the console’s internal switch functions such as. On-Air status, or
they may be used to control external machines, such as a fader start for a CD player.
Both inputs and outputs may be set to behave in different ways depending on user preference and the style of control
signal supplied or expected by external equipment.

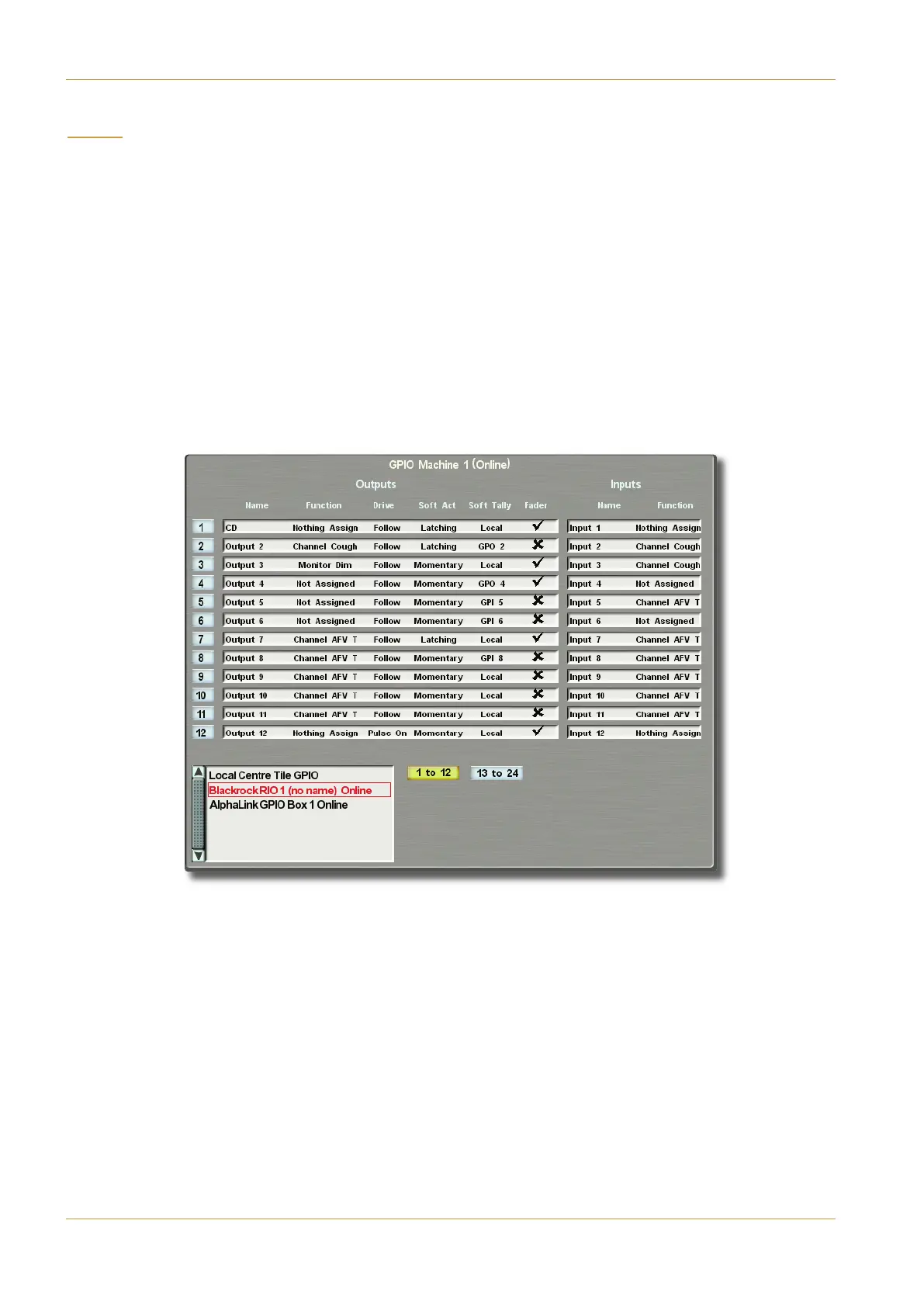

GPIs are configured in the GPIO display. The bottom left-hand corner of the display lists any available RIOs, in addition to
the !?31< ports. To configure a GPI port, stab on it in this list. The display will then show the first 12 outputs on the left
and inputs on the right. RIO GPIs 13 to 24 can be access by pressing the C? button at the bottom of the window.
Page 5-42 | Section 5: System Administration C10 HD Installation Manual
