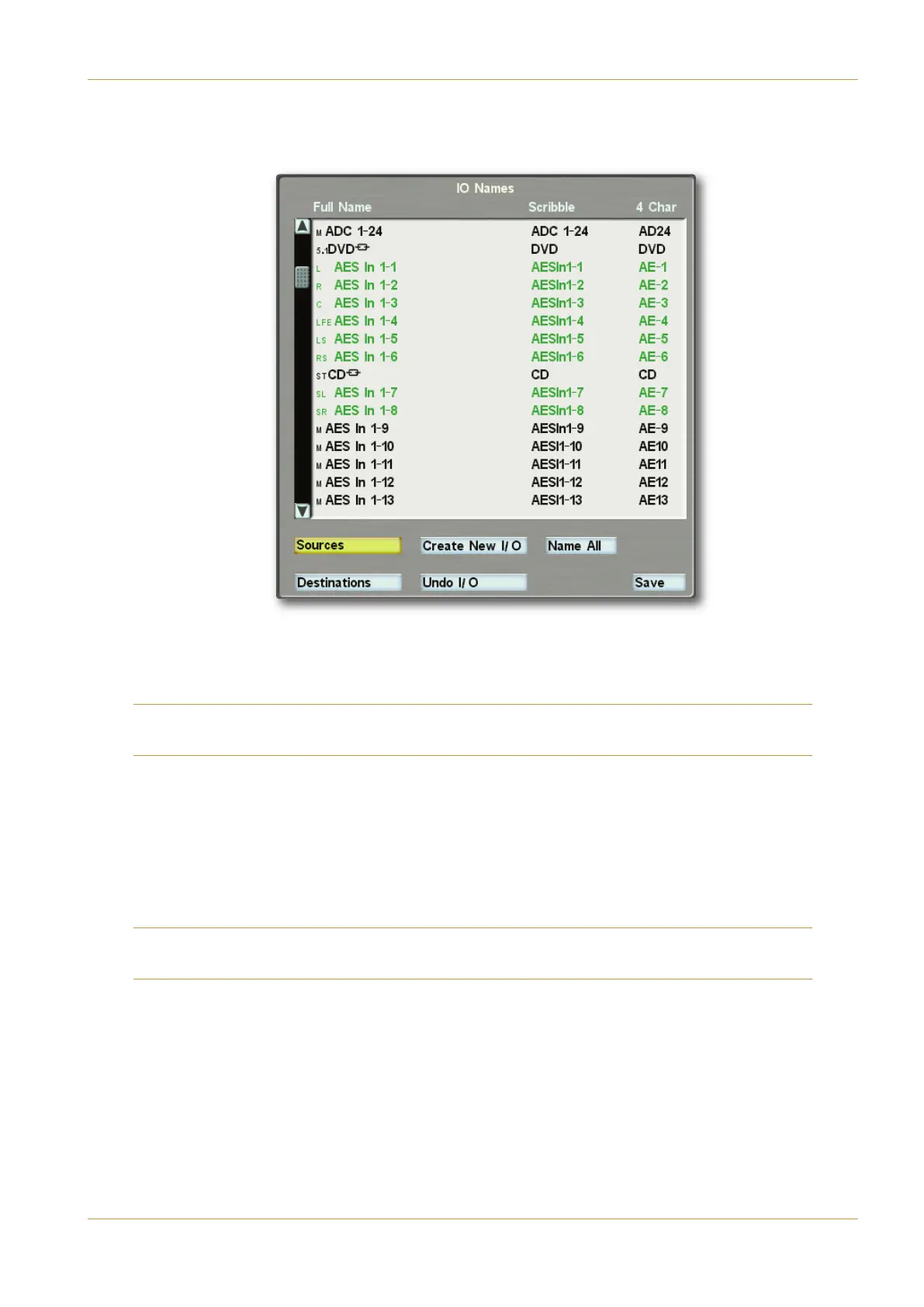

Components are displayed in green in the "0<4A list underneath their bundle name. In the example below, AES digital
i
nputs 1-1 to 1-6 are fed from a DVD player, so they have been made into a 5.1 source called *:
)'(#!'" #"!'
When you are sure of a signal’s connection to the outside world, you may give it a more obvious name (eg. !82, (84
8=4, ).
MORSE router Sources and Destinations will appear in the list in blue, indicating that it is not possible to rename
these signals from the console.
‰ Touch an entry in the C;;"0<4 list, enter a new name in the QWERTY pop-up which appears, and press #.
With the "0<4 ;; box lit, renaming one input will automatically add the numeral 1 to the given name and
simultaneously rename all subsequent inputs of that type with incrementing numbers.
The '2@811;4 column shows how the name will appear in the 8-character scribble strip displays on the console and the
70@ column shows how the names will appear in the 4-character Master Channel displays – both are automatically
derived from the C;;"0<4 column, but these may individually be edited for better clarity and less ambiguity if required.
Note that renaming the Full Name will result in both shortened versions being renamed. It is therefore important to
settle on the Full Name before editing the shortened versions.
‰ When you’ve finished modifying items in the '>C@24A or 4AB8=0B8>=A list, make sure you select the '0D4 box
before repeating the process for the other list. When both lists are configured, touch anywhere outside the display to
close it.
