T
he C10 HD Broadcast console system comprises two main elements: the console
control surface and separate racks for the connection of input/output. The I/O racks
are connected using readily available fibre optical cables so can be located remotely
from the console.
• The console is self-contained with power supplies, processing functions and
DSP resource all contained within the frame. There are no additional power
supplies or computer racks to be accommodated.
• The console control surface is available in five sizes: 8, 16, 24, 32 or 40 channel
faders plus the centre section. (The centre section is fitted with 8 additional
faders).
• The console surface may be operated on a table or suitable racking.
• The sides of the console are flat to reduce the overall width and to simplify the positioning of adjoining furniture.
Where consoles are freestanding contoured side arm trims can be included to provide a more comfortable finish.
Refer to Appendix A for the console dimension drawings. Systems Integrators will be able to download CAD files of these drawings
from the SSL SI website.
# % &%$
All audio input and output for the C10 console is accessed via remote 19” rack assemblies so some external racking space
will be required.
!
Standard I/O units for the C10 console are the ‘15.'/30#’ and ‘15.'
/30’. Each unit is 2U in height and 300mm deep. The quantities of each
rack supplied will depend upon the user’s specific requirement of analogue, digital
and microphone signals.
It is recommended that a 1U ventilation space be added after every two Alpha-Link
units when allocating rack space.
%
• (Remote Input Output) – 7U rack; five slots to accommodate a range of plug-in I/O cards; contains cooling
fans. Refer to Appendix H.
• – MORSE Stageboxes are 3U and feature 14 slots into which a range of I/O modules may be fitted. Systems
that require resource sharing may also be equipped with the 6U or 3U MORSE router rack Refer to Appendix J.
• @ – 1U chassis. De-embedds the audio data from up to four SDI audio signals (SD, HD and 3G).
• +249+ – This feature allows the console to send mic amp control over MADI to third-party amplifiers or
routing systems which use the DHD control protocol data, such as Optocore and RocNet systems.
.>8/)'1+6:/7+2+398
389'11'9/43'3:'1 +)9/437+5'7'9/43? '-+

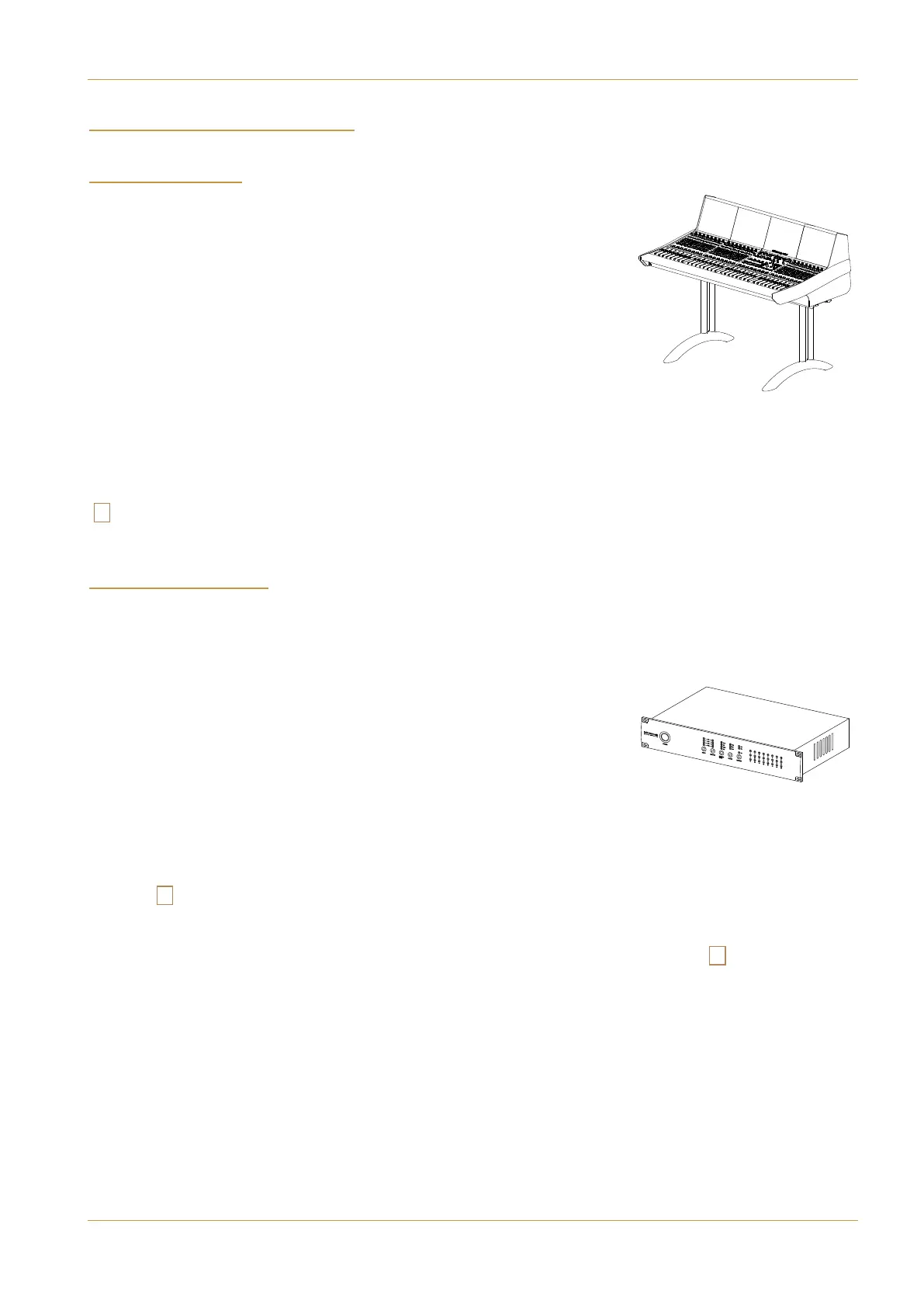

C10 HD Console – 24 channel
Alpha-Link LIVE-R I/O Unit
