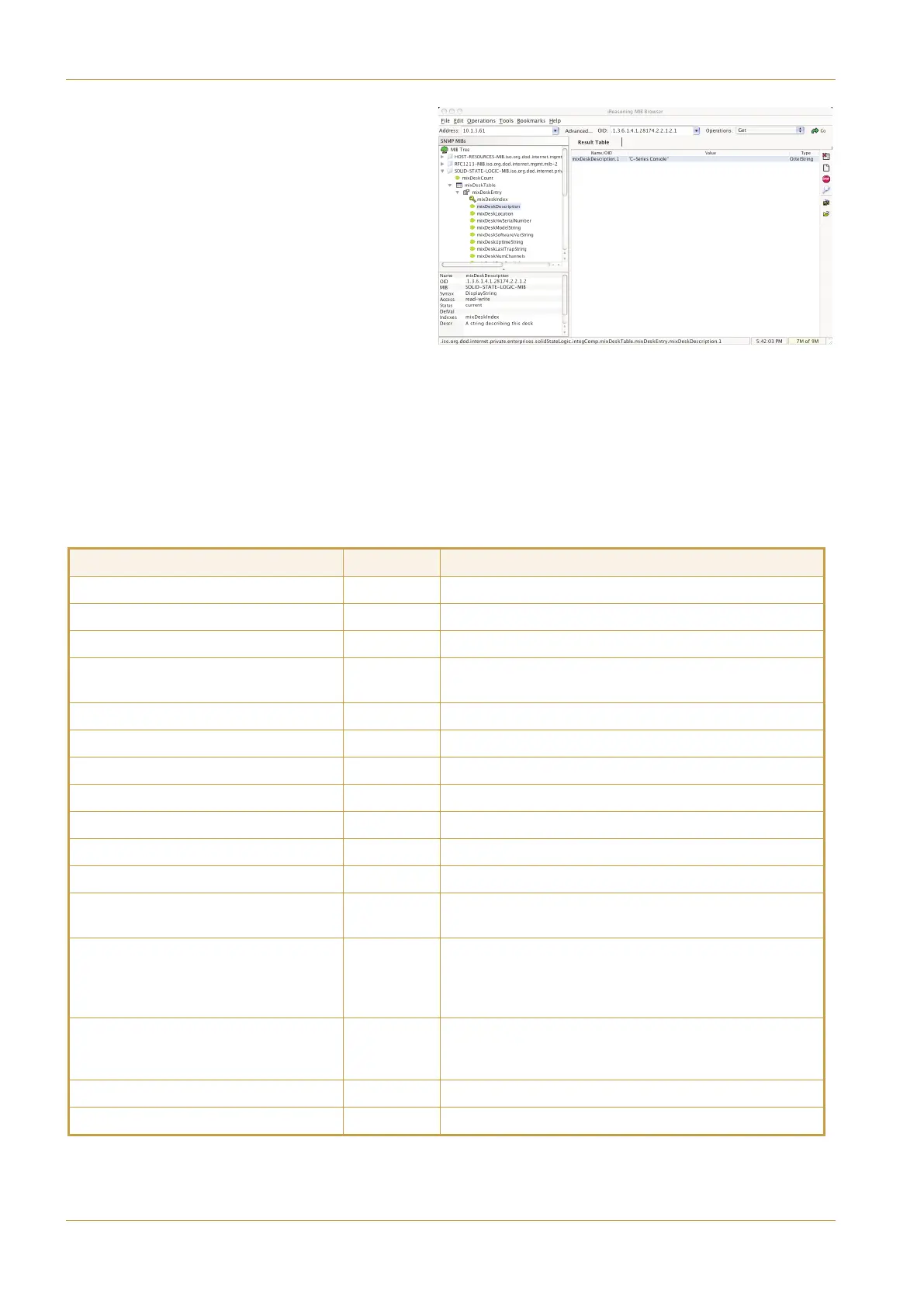

5. It will now be possible to browse the available data;
right click on the objects in the SNMP MIBs list and
by selecting ‘0?’, you can obtain the value for the
object. The example here shows the result for a
mixDeskDescriptionString GET
request. Where a
request is for either a valid or an un-configured
object for a connected system it should return
more or less instantly with either the result or a
failure message. If the remote system is not present
there will be a timeout period before a failure is
returned. Objects which are writable can be set in
a similar way by right clicking on an object and
selecting ‘%0?’ – in the resulting pop-up, enter the
required value and click on !.
6. Any traps received can be viewed by selecting &::7>, &=,;$0.04A0=. Clicking on an individual trap will display its
details in the bottom half of the window.
% "!&%
The individual SNMP objects for the C10 HD (Blackrock) system that are exported from V1.1/5 software are as follows:
!-50.? &D;0 0>.=4;?4:9
sslC10Psu1Status
read-only The current status of Blackrock processor PSU 1
sslC10Psu2Status
read-only The current status of Blackrock processor PSU 2
sslC10MainScreenGfx1Status
read-only The current status of the primary console TFT Meter driver
sslC10MainScreenGfx2Status
read-only
The current status of the secondary console TFT Meter
driver
sslC10SerialNumber
read-only The SSL network id. number of this Blackrock DSP card
sslC10ModelString
read-only String providing the model name of this system
sslC10SoftwareVerString
read-only String providing the system software version
sslC10UptimeString
read-only String providing the current uptime of this system
sslC10SyncStatusString
read-only String providing the sync status
sslC10NumChannels
read-only The number of channels currently available on this system
sslC10DspInfo
read-only The current status of this systems Blackrock DSP array
sslC10InRedundantPair
read-only
A value representing the redundancy status if the system.
Returns ‘
yes
’ if the system is part of a redundant pair
sslC10MasterInRedundantPair
read-only
A value representing the master status of the system.
Returns ‘
yes
’ if it is the system master of a redundant pair
or ‘
no
’ if it is either a system slave or is not part of a
redundant pair
sslC10ActiveConsoleInRedundantPair
read-only
A value representing the active status of a system if it is part
of a redundant pair. Returns ‘
yes
’ if it is the active system
or ‘
no
’ if it is either inactive or not part of a redundant pair
sslC10DiskStatusString
read-only String providing the system disk (SMART) status
sslC10RaidStatusString
read-only String providing the disk RAID status
Page 6-28 | Section 6: Appendices C10 HD Installation Manual
K: SNMP
