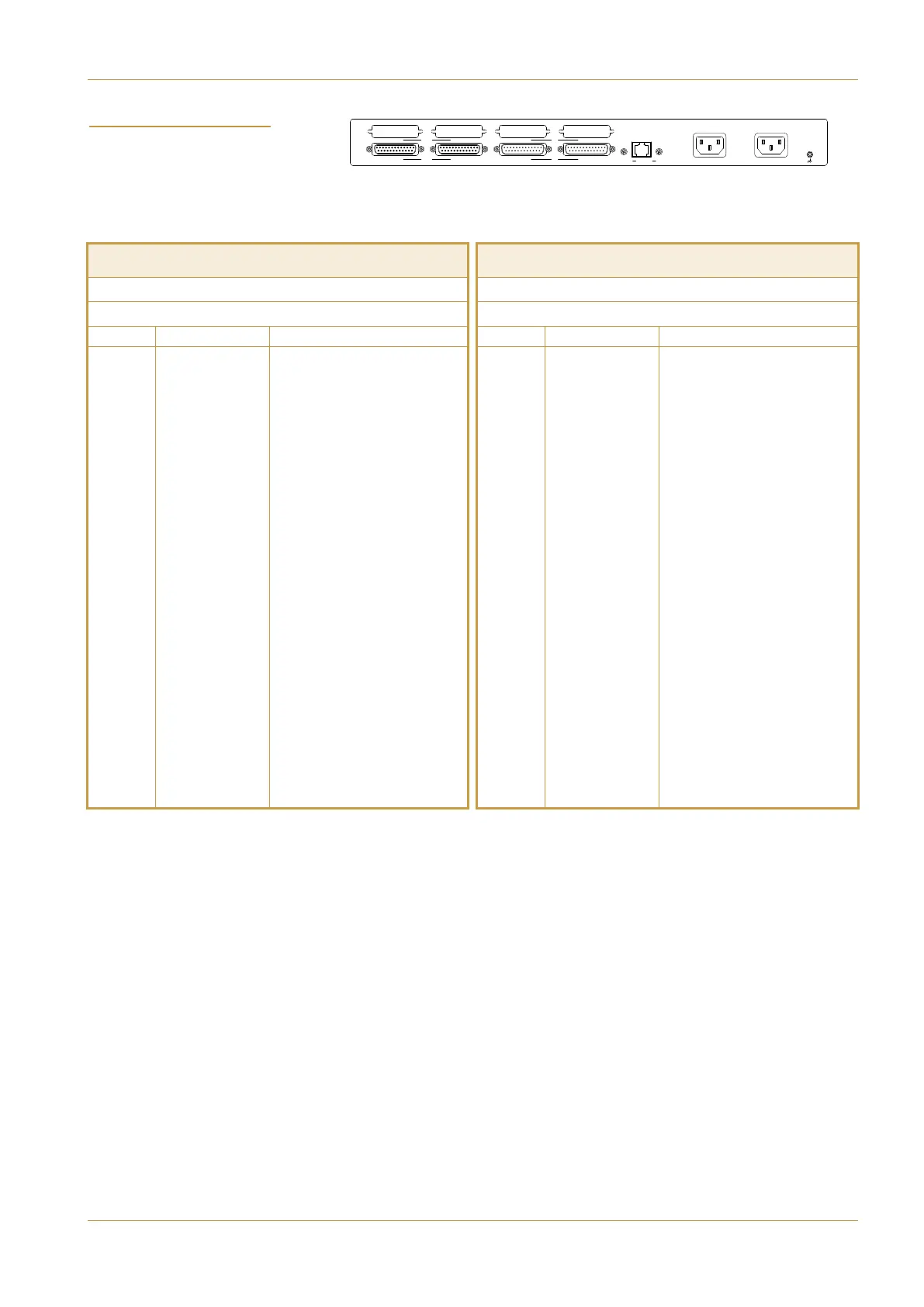

Location: Rear Panel
Connector Type: 25-way D-type male
Pin Description Notes:
1 Input 1A
14 Input 1B
2 Input 2A
15 Input 2B
3 Input 3A
16 Input 3B
4 Input 4A
17 Input 4B
5 Input 5A
18 Input 5B
6 Input 6A
19 Input 6B
7 Input 7A
20 Input 7B
8 Input 8A
21 Input 8B
9 Input 9A
22 Input 9B
10 Input 10A
23 Input 10B
11 Input 11A
24 Input 11B
12 Input 12A
25 Input 12B
13 0V
"!@?;@?>
Location: Rear Panel
Connector Type: 25-way D-type female
Pin Description Notes:
1 Output 1A
14 Output 1B
2 Output 2A
15 Output 2B
3 Output 3A
16 Output 3B
4 Output 4A
17 Output 4B
5 Output 5A
18 Output 5B
6 Output 6A
19 Output 6B
7 Output 7A
20 Output 7B
8 Output 8A
21 Output 8B
9 Output 9A
22 Output 9B
10 Output 10A
23 Output 10B
11 Output 11A
24 Output 11B
12 Output 12A
25 Output 12B
13 +12V 450mA maximum
$!& "!!*
0
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1
0
F
E
D
C
B
A
9
8
7
6
5
4
3
2
1
1
- 1213 - 24 IN
1
- 1213 - 24 OUT
25 - 3637 - 48 INOUT
POWER APOWER B
NETWORK
ADDRESSCONSOLE BOX
25 - 3637 - 48
