Solid State Logic C10 HD User Manual

9,7:2@09!@?
L

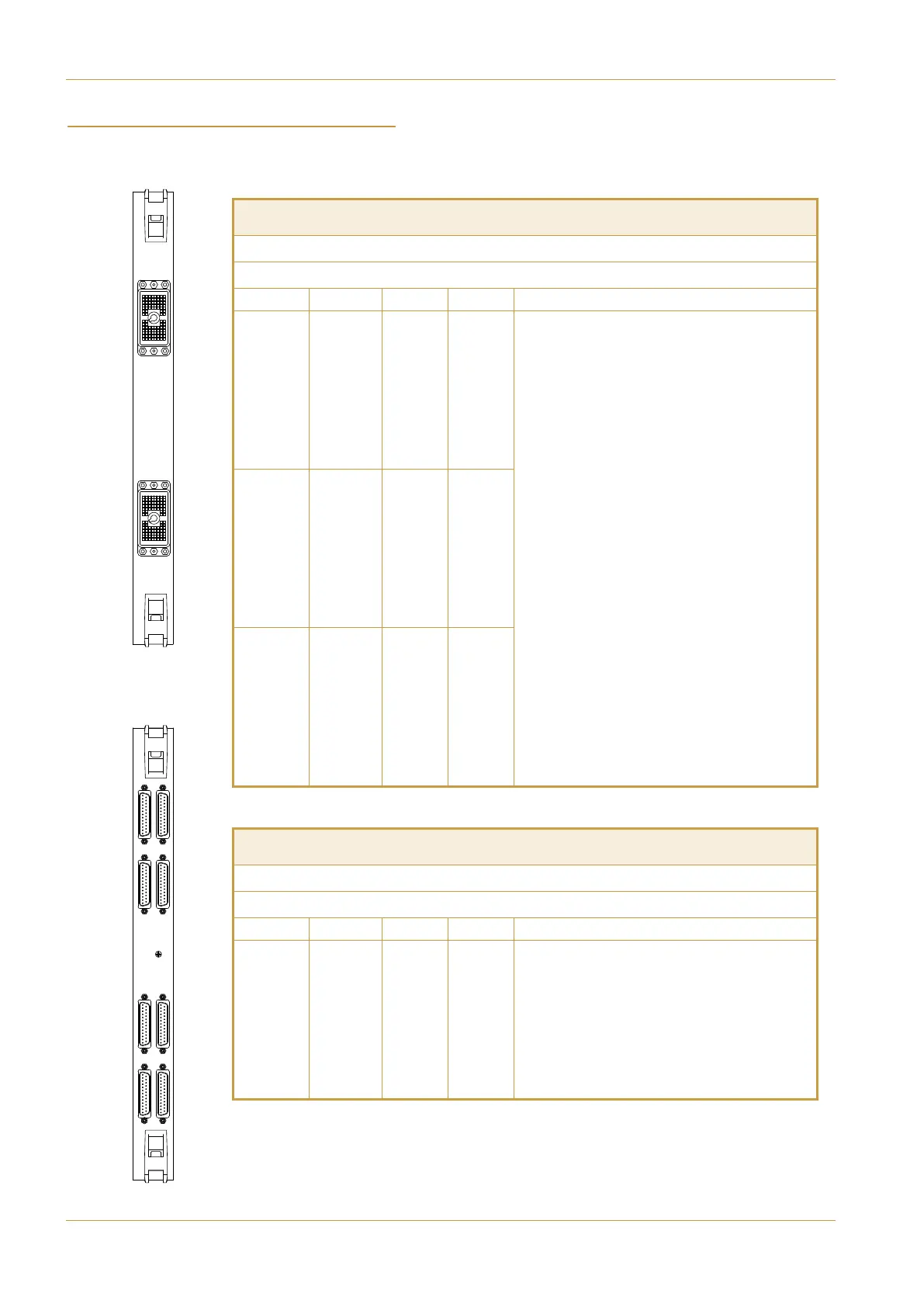

ocation: 944 Analogue Card
Connector Type: DL96 female
Cct Hot Cold Screen Notes
1 A1 B1 C1 All other pins unused
2 A2 B2 C2
3 A3 B3 C3
4 A4 B4 C4
5 A5 B5 C5
6 A6 B6 C6
7 A7 B7 C7
8 A8 B8 C8
9 D1 E1 F1
10 D2 E2 F2
11 D3 E3 G1
12 D4 E4 G2
13 D5 E5 G7
14 D6 E6 G8
15 D7 E7 F7
16 D8 E8 F8
17 L1 K1 J1
18 L2 K2 J2
19 L3 K3 H1
20 L4 K4 H2
21 L5 K5 H7
22 L6 K6 H8
23 L7 K7 J7
24 L8 K8 J8
9
- 16 1 - 8
25 - 32 17 - 24
AES/EBU IN
9 - 16 1 - 8
25 - 32 17 - 24
902XB
AES/EBU OUT
$!H !'   & !
A1
A1
ANALOGUE IN
1 - 24
A
NALOGUE OUT
1 - 24
904XA
%'9!@?HHHH
Location: 942 DIO
Connector Type: 25-way D-type female
Cct Hot Cold Screen Notes
1 24 12 25 Pin 13 unused
2 10 23 11
3 21 9 22
4 7 20 8
5 18 6 19
6 4 17 5
7 15 3 16
8 1 14 2
Page 6-14 | Section 6: Appendices C10 HD Installation Manual
C: Connector Pinouts
