The $A?D@B display is also used to configure the Quickrouting lists which will be used by Preset-level users both for
s
electing input channel sources and for selecting sources and destinations within the '$*)# panel in the top right-
hand corner of the Touchscreen.
To select a Source for a Quickroute list:
‰ Ensure that the $A?D@B display is displaying (?DA35B.
‰ Select a Source which is to be added to a Quickroute list.
Note that multiple sources can be selected within the list.

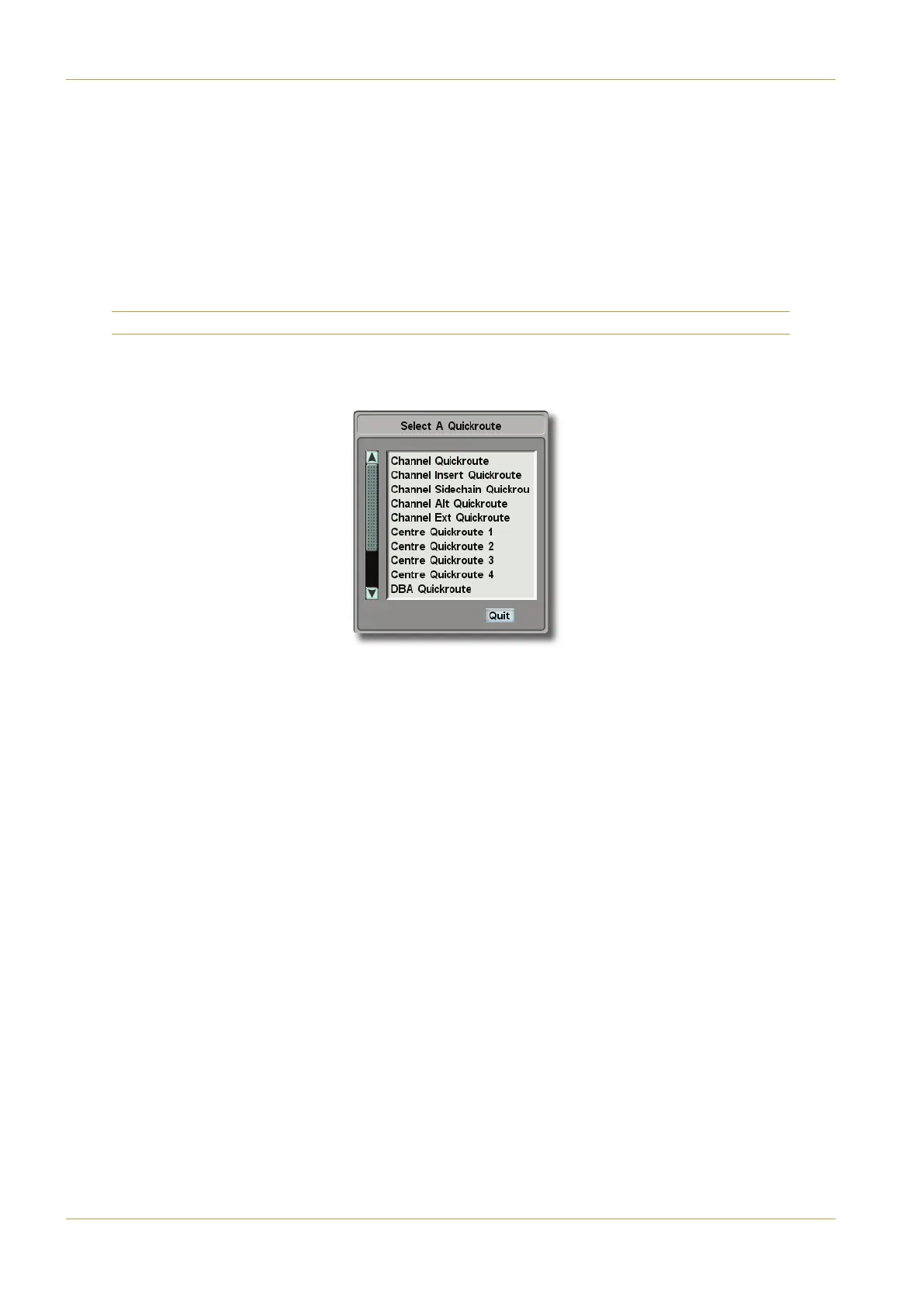

‰ Press the &D93;A?DC5 button, located under the '5=?E5 button in the $A?D@B display, and the (5<53C
&D93;A?DC5 pop-up will appear:
‰ Touch Quickroute list to which the Source is to be added; the pop-up closes automatically.
‰ Select a new Source and repeat the process.
A pointing hand appears next to signals to indicate that they have been directed to a Quickroute list.
‰ To select a Destination, touch the 5BC9>1C9?>B box in the top-left of the $A?D@B display. Destinations are
then selected in exactly the same way as Sources.
Page 5-22 | Section 5: System Administration C10 HD Installation Manual
