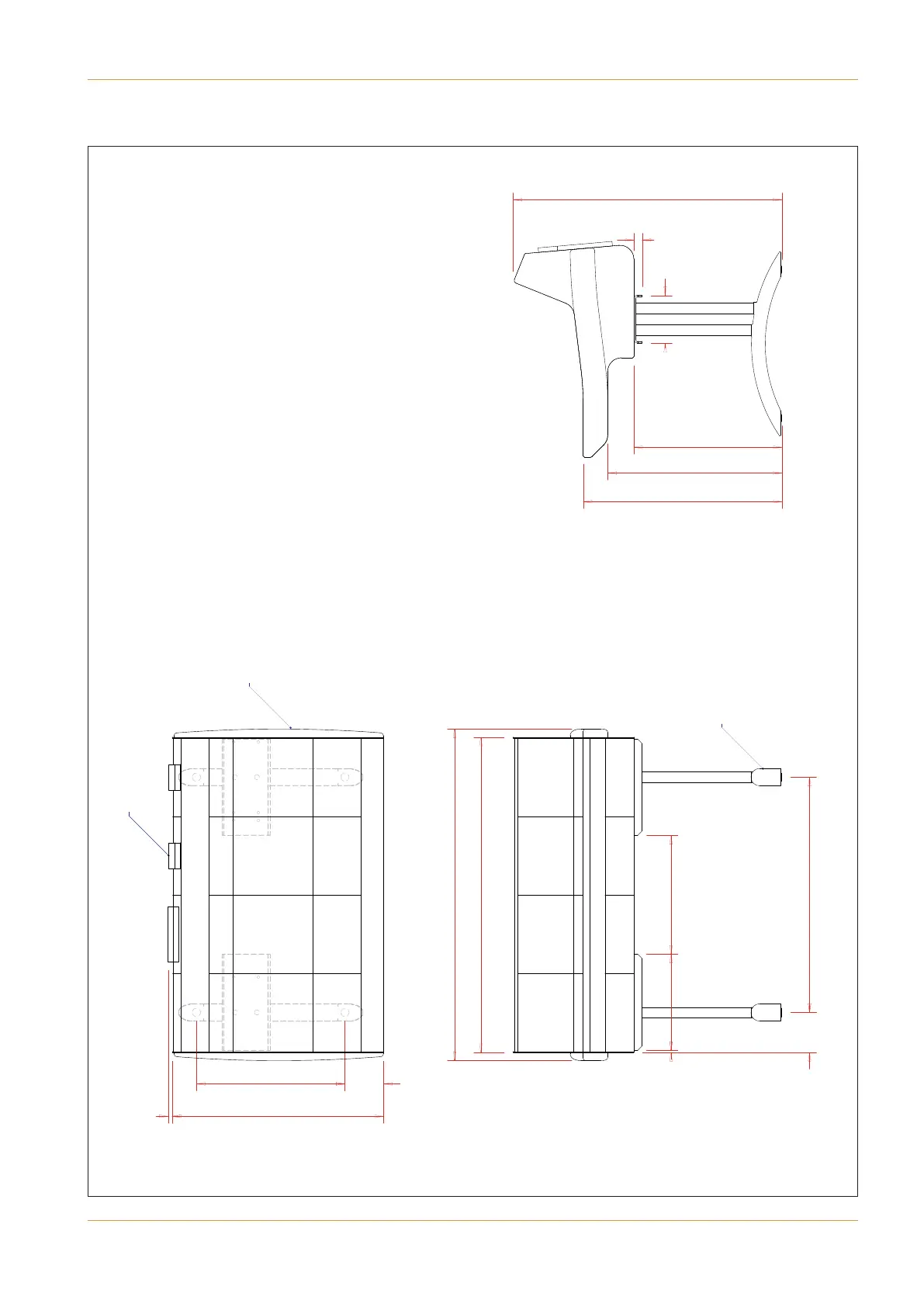

Solid State Logic C10 HD - Console Footprint Drawing - 24 Channels

:9>:70::?;=49?=,B492H 3,9907>
C10 HD Installation Manual Section 6: Appendices | Page 6-5
A: Specifications
538
[
1'-9 1/4"]
633
[
2'-1"]
722
[
2'-4 1/2"]
174
[6 3/4"]
3
0
[1 1/4"]
977
[3'-2 1/2"]
OPTIONAL SIDE TRIM
LEGS MAY BE
REMOVED
(INCLUDING TRIM)
(WITHOUT TRIM)
HEATSYNCS
1 – 8 9 – 16 Master Section
140
[5 1/2"]
540
[1'-9 1/4"]
768
[2'-6 1/4"]
15
[1/2"]
145
[5 3/4"]
856
[2'-9 3/4"]
7
[1/4"]
350
[1'-1 3/4"]
17 – 24
432
[1'-5"]
1146
[3'-9 1/8"]
1206
[3'-11 1/2"]
C10 HD 
24 Channel – (32 faders)
 Weight: 83kg [183 lb]
Heat: 300W (Max. dual CPU)
Noise:Fanless
Drg ref:GC v2.0 6/11
