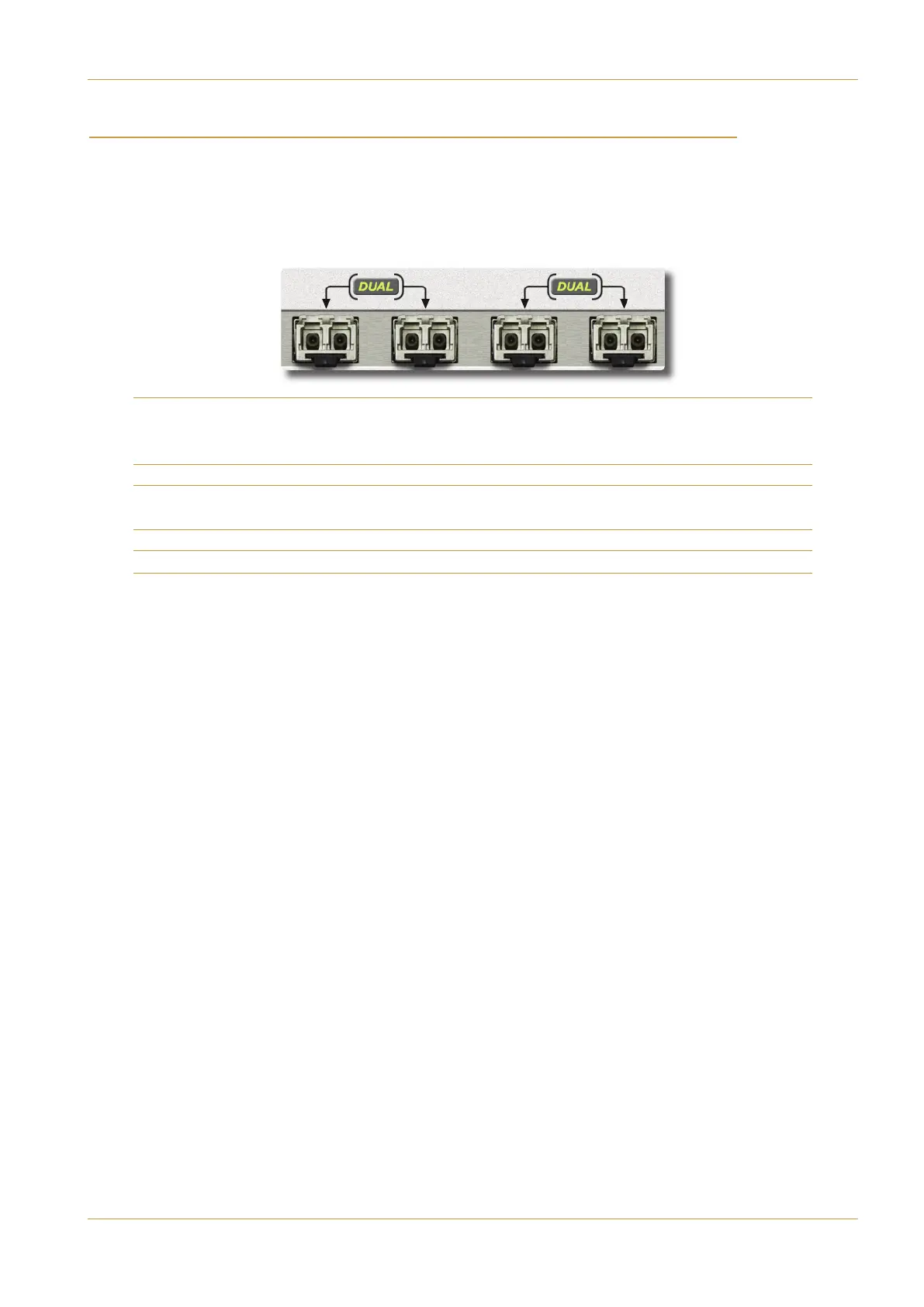

It is possible to reserve two of the four links to a LIVE-R RIO or MORSE router for redundancy. To do this, simply touch
the *! label above each pair of links in the !9>;*B5 page, and the higher (even) numbered link will become the
back-up link for the lower (odd) numbered link. The *! label turns yellow to indicate that dual redundancy has been
enabled. The configuration will be communicated to the IO unit when the (1E5 button is pressed: If the first link in each
p
air fails, the second link will now automatically take over.
Warning: If the second link is configured for another IO module when the faliure occurs, the other module’s audio
will appear in place of the first link’s audio. It is important, therefore, to ensure that the second link in a redundant
pair is correctly connected.
Note that all four RIO links in each row of the display are switched between Single mode and Dual Redundant mode
together.
Note also that when dual redundancy is enabled, the IO capacity to that RIO is reduced to 126.
