12. Resection
Resection program is used to determine the coordinates of an instrument station (unknown) by
measuring several known points. Coordinate data in memory could be read.
Input
Coordinates of known points: Xi, Yi, Zi
Measured HA: Hi
Measured VA: Vi
Measured distance: Di
Output
Coordinate of occupied data: Xo, Yo, Zo
NOTE:
 All N, E, Z value or only Z value of the occupied point is calculated by measuring known
points.
 Coordinate resection measurement overwrite the N, E, Z data of the instrument occupied
point, while elevation resection measurement overwrite Z data only. Perform resection
measurement, see “§ 12.1 Coordinate Resection” and “§ 12.2 Elevation Resection”.
 Inputted known coordinate data and calculated data could be recorded in the current JOB.

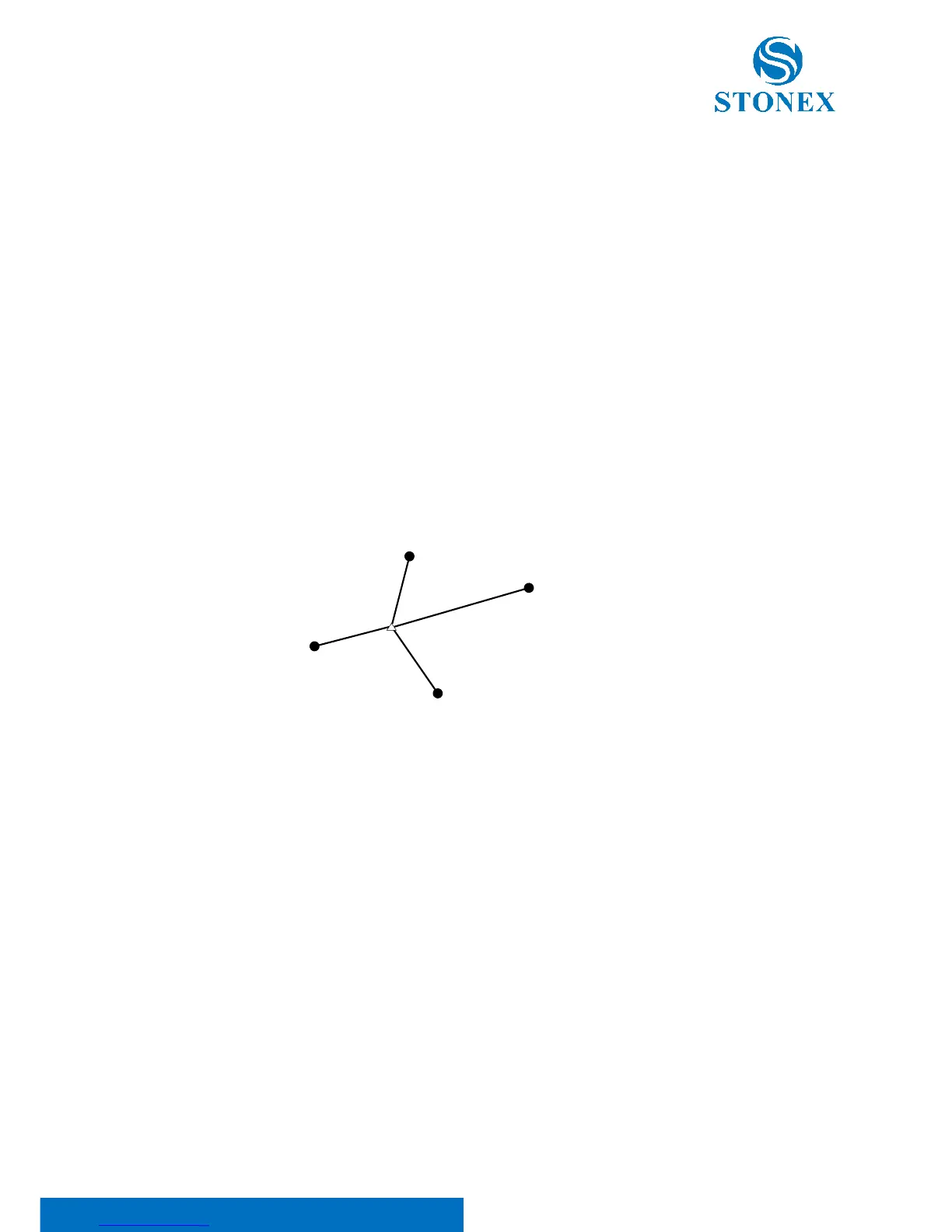

Known point P4
Known point P1
Known point P2
Known point P3
Occupied point P0
