Stonex R2 PLUS Total Station - User Manual 86
20.4 Road Calculation
20.4.1 Input the road width element
1. Make sure the instrument is in Road Define menu, select
3.Road Calculation
2. Press F1: [WIDE] to road width setting menu.
Press F1: [FIST] key, the cursor will move to the first
element.
Press F2: [LAST] key, the cursor will move to the last
element.
Press F3: [Del] key to delete the selected element.
Press F4: [ADD] key to add a new vertical element.
3. Press F4: [ADD] to enter road wide inputting menu.
4. Input the parameters of road width.
STATION: the road will take this width begin from this
point to next road width element
Lwide: left width
Rwide: right width
Press F4: [ENT] key to confirm.
5. Repeat step 4 to input other road width.

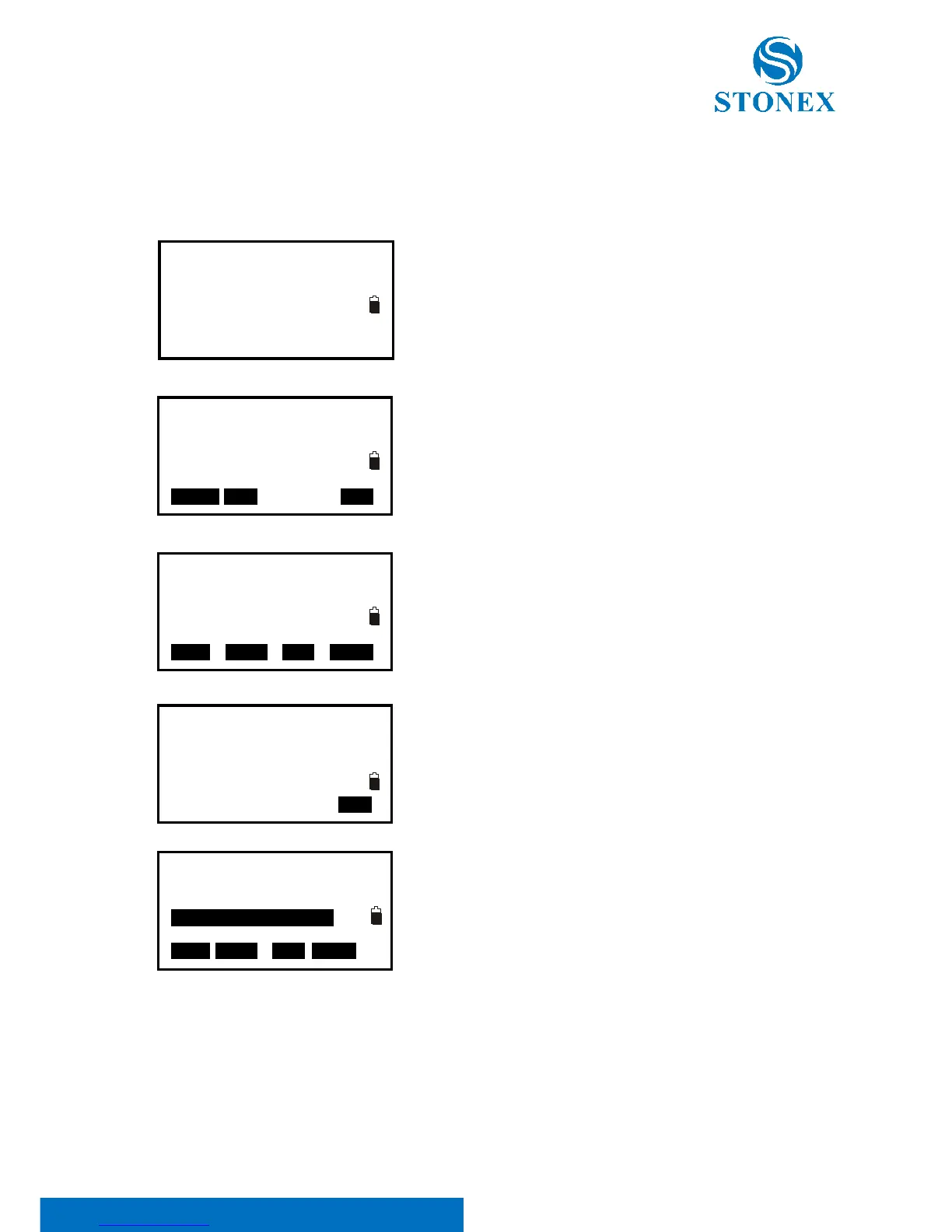

Road Define
1.Horizontal Curve
2.Vertical curve
3.Road Calculation
RoadCal/Calc
STATION:0.000
SPAC 0.000 m
WIDE PEG ENT
SPile LW
FIST LAST DEL ADD
Wide Input 1
STATION: 0.000m
Lwide 3.000m
Rwide 4.000m
ENT
SPile LW
0.000 3.000
100.000 5.000
300.000 6.000
FIST LAST DEL ADD
ENT
