Stonex R2 PLUS Total Station - User Manual 125
26.11 EDM Optical Axis and the Telescope Sighting Axis Error
It is necessary to check this error after the adjustment of telescope reticle error.
Check
(1) Install the instrument at the tripod or a stable device and level it accurately, then power on
the instrument.
(2) Set a reflective sheet about 5m-20m far away from the instrument.
(3) Aim at the sheet cross-mark with telescope reticle.
(4) Enter EDM signal testing screen, see “§4.7 Setting Mode”.

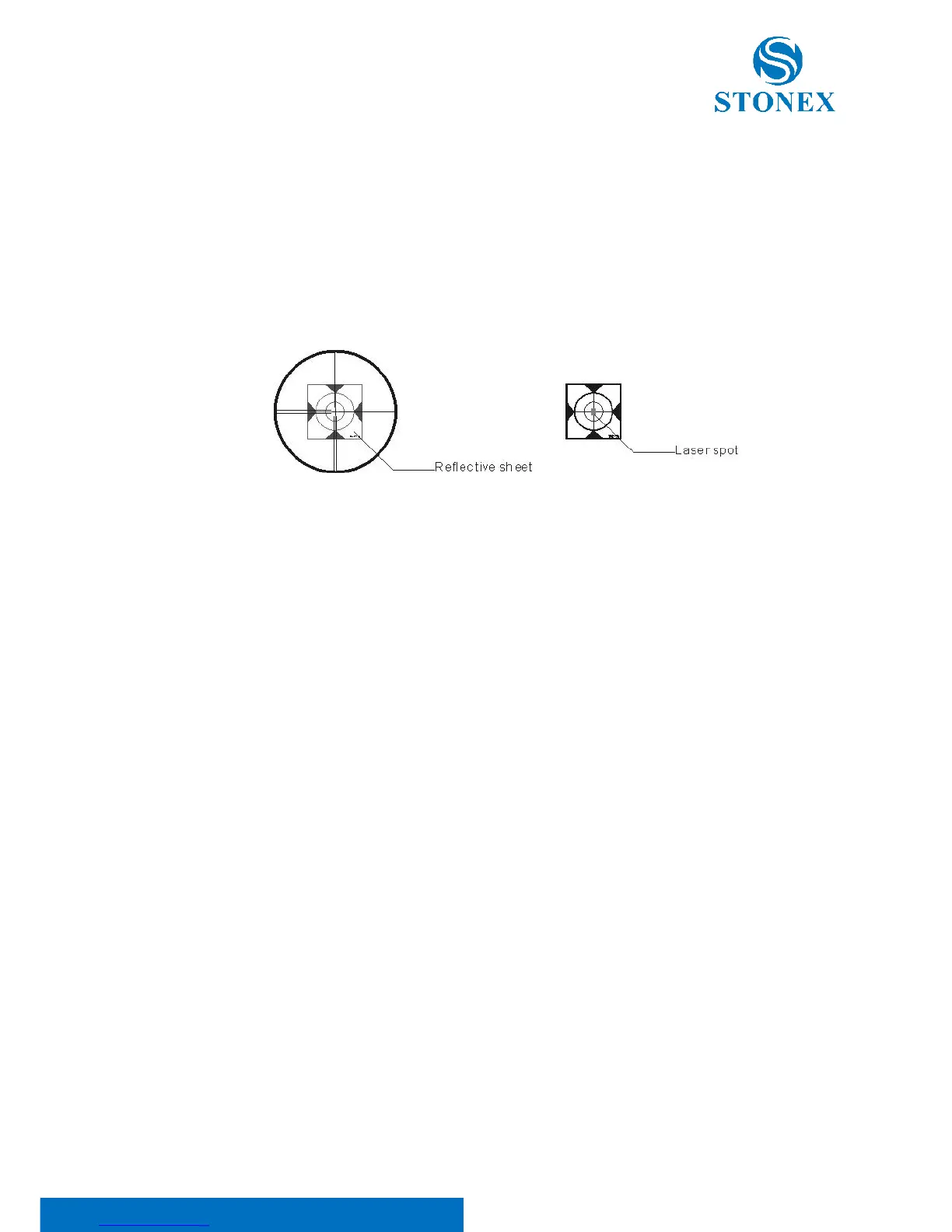

(5) Observe the laser spot, if the laser spot coincides with the cross-mark of reflective sheet,
adjustment is unnecessary.
NOTE:
1. Laser radiation—Avoid direct eye exposure.
2. If the instrument needs adjustment, please contact your local dealer.
